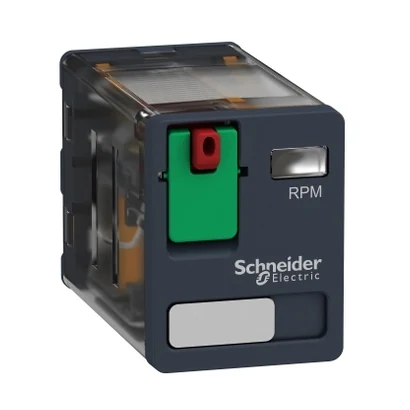

Schneider Electric RPM21B7 24 V AC Power Relays
- Brand: Schneider Electric
- SKU: RPM21B7
- MPN: RPM21B7
- Price: 906.28 TRY + VAT · incl. VAT 1087.54 TRY
- Availability: In stock
- Standard Relays
- Schneider Electric Standard Relays
- Selection guide: Standard Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric RPM21B7 Teknik Veri Föyü (PDF)
Schneider Electric RPM21B7 24 V AC Power Relays.
| Series | Harmony Elektromekanik Röleler |
|---|---|
| Product Type | Takılabilir röle |
| Contact Arrangement | 2CO |
| Status LED | None |
| Rated Control Circuit Voltage (Uc) | 24 V AC 50/60 Hz |
| Operating Ambient Temperature | -40…55 °C |
| Conventional Enclosed Thermal Current (Ithe) | 15 A @ -40…55 °C |
| Control Type | Kilitlenebilir test butonu |
| Rated Operational Current (Ie) | 15 A @ 277 V (AC) (UL); 15 A @ 28 V (DC) (UL); 15 A @ 250 V (AC) NA (IEC); 15 A @ 28 V (DC) NA (IEC); 7,5 A @ 250 V (AC) NK (IEC); 7,5 A @ 28 V (DC) NK (IEC) |
| Rated Insulation Voltage (Ui) | 250 V (IEC); 300 V (CSA); 300 V (UL) |
| Average Resistance | 177 Ohm @ 20 °C +/- 15 % |
| Operating Time | 20 ms nominal gerilimde |
| Mechanical Endurance | 10000000 cycles |
| Electrical Endurance | 100000 cycles için dirençli load |
| Safety Reliability Data (MTTFd) | B10d = 100000 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV süresince 1,2/50 µs |
| Mounting Support | Eklenti |
| Operating Position | Herhangi bir konum |
| Device Presentation | Angled |
| Contact Material | AgNi |
| Product Weight | 0.036 kg |
| Pollution Degree | 3 |
| Standards | CSA C22.2 No 14; IEC 61810-1; UL 508 |
| Certifications | UL; CSA; EAC |
| Storage Temperature | -40…85 °C |
| Vibration Resistance | 3 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…150 Hz)çalışan 5 döngü; 5 gn, genlik = +/- 1 mm[Alan](f =[Alan]10…150 Hz)çalışmayan 5 döngü |
| Shock Resistance | 15 gn için çalışma sırasında; 30 gn için çalışmıyor |
