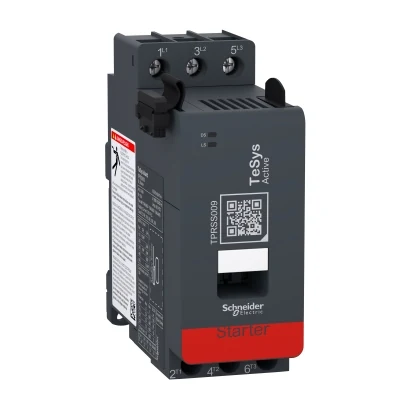

Schneider Electric TPRSS009 TeSys Island SIL Starter 9A/4kW
- Brand: Schneider Electric
- SKU: TPRSS009
- MPN: TPRSS009
- Price: 11889.44 TRY + VAT · incl. VAT 14267.33 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric TPRSS009 Teknik Veri Föyü (PDF)
Schneider Electric TPRSS009 TeSys Island SIL Starter 9A/4kW. Technical specifications of this model: Series: TeSys Island
| Series | TeSys Island |
|---|---|
| Product Type | SIL motor yol verici |
| Device Presentation | Bir veri yolu kuplörü aracılığıyla bir otomasyon kontrolörüne bağlı doğrudan yolverici; Yalnızca bir veri yolu kuplörüne bağlandığında çalışır |
| Compatible Products | TPRBC hat birleştirici; TPRVM Voltaj arayüzü modülü (VIM); TPRSM SIL arayüzü modülü |
| Pole Arrangement | 3P 3 NA |
| Utilization Category | AC-1; AC-2; AC-3; AC-4; AC-3e |
| Motor Power (kW) | 2,2 kW at 230 V 50 Hz (AC-3); 4 kW at 380…415 V 50 Hz (AC-3); 4 kW at 440 V 50 Hz (AC-3); 5,5 kW at 500 V 50 Hz (AC-3); 5,5 kW at 690 V 50 Hz (AC-3) |
| Rated Operational Voltage (Ue) | <= 690 V AC 47…63 Hz |
| Rated Operational Current (Ie) | 9 A (at <50 °C) at <= 440 V AC-3; 15 A (at <50 °C) at <= 440 V AC-1 |
| Conventional Free Air Thermal Current (Ith) | 15 A (at 50 °C) |
| Rated Insulation Voltage (Ui) | 690 V (IEC 60947-4-1); 600 V (UL 60947-4-1); 600 V (CSA C22.2 No 60947-4-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Overvoltage category | III |
| Trip Class | Class 5…30 |
| Reset Type | Remotely or automatically |
| Rated Making Capacity (Irms) | 250 A at 440 V (IEC 60947) |
| Rated Breaking Capacity | 250 A at 440 V (IEC 60947) |
| Rated Short-time Withstand Current Low Voltage (Icw) | 210 A 40 °C - 1 sn; 105 A 40 °C - 10 s; 61 A 40 °C - 1 min; 30 A 40 °C - 10 min |
| Average Impedance | 2,5 mOhm - Ith 15 A 50 Hz |
| Power Loss per Pole | 0,2 W AC-3 - Ith 9 A; 0,56 W AC-1 - Ith 15 A |
| Rated Control Circuit Voltage (Uc) | 24 V DC veri yolu kuplörü tarafından sağlanır |
| Current Consumption | 160 mA contactor sealed; 160 mA contactor closing |
| Power Loss (W) | 3,5 W Ie'de AC-3 |
| Mechanical Endurance | 30 Mcycles |
| Electrical Endurance | 2 Mcycles 9 A AC-3 Ue'de 440 V; 1,2 Mcycles 15 A AC-1 Ue'de 440 V |
| Maximum Operating Rate (cycles/h) | 3600 cyc/mn AC-3 |
| Operating Time | < 100 ms kapama; < 30 ms açma |
| Safety Function | Güvenli durdurma: kategori 0 (TPRSM ile ilişkilendirildiğinde IEC 60204-1); modül; Güvenli durdurma: kategori 1 (TPRSM ile ilişkilendirildiğinde IEC 60204-1) |
| Local Signalling | 1 LED (yeşil/kırmızı) for DS (device status); 1 LED (yeşil/kırmızı) for LS (load status) |
| Standards | EN/IEC 60947-1; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1 |
| Certifications | EAC; UL; CSA; CCC |
| Mounting Method | Yatay ve dikey (35 mm simetrik DIN rayı) |
| Tightening Torque | 1,7 N.m - tornavidayla düz Ø 6 mm; 1,7 N.m - tornavidayla Philips No 2 |
| Width | 45 mm |
| Height | 116 mm |
| Depth | 115 mm |
| Product Weight | 0.656 kg |
| Storage Temperature | -25…70 °C |
| Operating Ambient Temperature | -10…50 °C değer kaybı olmadan; 50…60 °C akım değer kaybı ile |
| Relative Humidity | 5…95 % |
