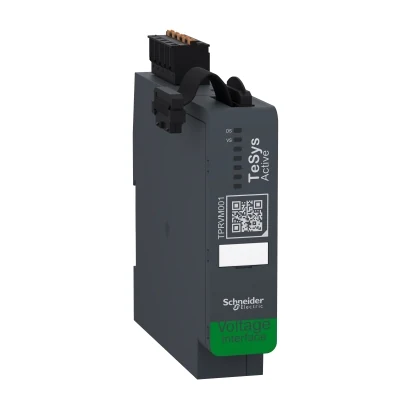

Schneider Electric TPRVM001 TeSys Island Voltage Interface Module
- Brand: Schneider Electric
- SKU: TPRVM001
- MPN: TPRVM001
- Price: 19095.16 TRY + VAT · incl. VAT 22914.19 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric TPRVM001 Teknik Veri Föyü (PDF)
Schneider Electric TPRVM001 TeSys Island Voltage Interface Module. Technical specifications of this model: Series: TeSys Island
| Series | TeSys Island |
|---|---|
| Product Type | Voltaj arayüzü modülü (VIM) |
| Device Presentation | Adaya güç sağlayan şebeke voltajının izlenmesi; Güç ve enerji izlemeyi etkinleştirmek için bara kuplörüne voltajın bildirilmesi |
| Compatible Products | TPRBC hat birleştirici |
| Rated Operational Voltage (Ue) | 690 V AC 47…63 Hz |
| Rated Insulation Voltage (Ui) | 690 V (IEC 61010-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 61010-1) |
| Overvoltage category | III |
| Measurement Accuracy | Gerilim: +/- 5 %,; Frekans: +/- 1 Hz |
| Local Signalling | 1 LED (yeşil/kırmızı) for DS (device status); 1 LED (yeşil/kırmızı) for VS (voltage status) |
| Rated Control Supply Voltage (Us) | 24 V DC veri yolu kuplörü tarafından sağlanır |
| Current Consumption | 2 mA |
| Power Loss (W) | 0,5 W maksimum |
| Standards | IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Certifications | CSA; UL; EAC (beklemede) |
| Mounting Method | Yatay ve dikey (35 mm simetrik ray) |
| Width | 25 mm |
| Height | 118 mm |
| Depth | 114 mm |
| Product Weight | 0.159 kg |
| Storage Temperature | -25…70 °C |
| Operating Ambient Temperature | -10…60 °C |
| Relative Humidity | 5…95 % |
| Operating Altitude | 0…2000 m değer kaybı olmadan |
| IP Rating | IP20 |
| Pollution Degree | 2 |
| Fire Resistance | 960 °C (UL 94) |
| Shock Resistance | 15 gn (süre = 11 ms) (IEC 60068-2-27) |
| Vibration Resistance | 1,5 mm tepeden tepeye (f= 3…13 Hz) (IEC 60068-2-6); 1 gn (f= 13…200 Hz) (IEC 60068-2-6) |
