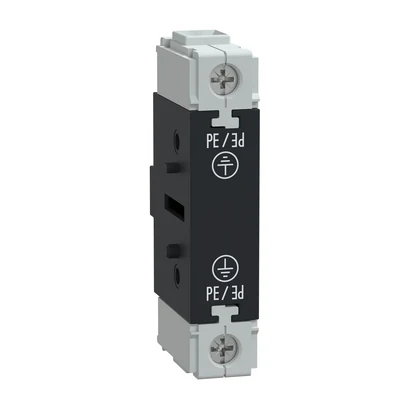

Schneider Electric VZ14 TeSys VARIO Additional Earthing Block 40A
- Brand: Schneider Electric
- SKU: VZ14
- MPN: VZ14
- Price: 1150.91 TRY + VAT · incl. VAT 1381.09 TRY
- Availability: Made to order
- Motor Control Equipment
- Schneider Electric Motor Control Equipment
- Selection guide: Motor Control and Protection Equipment Selection Guide
- Schneider Electric VZ14 Teknik Veri Föyü (PDF)
Schneider Electric VZ14 TeSys VARIO Additional Earthing Block 40A. Technical specifications of this model: Series: TeSys VARIO
| Series | TeSys VARIO |
|---|---|
| Product Type | Ek topraklama bloğu |
| Performance Level | Yüksek performans |
| Contact Arrangement | None |
| Compatible Products | V0; V02; V2; V01; V1 |
| Current Type | AC; DC |
| Mains Frequency | 50/60 Hz |
| Mounting Position | Sol; Sağ |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conventional Free Air Thermal Current (Ith) | 40 A |
| Connection Terminals | Vida kelepçesi terminalleri |
| Height | 74 mm |
| Width | 16 mm |
| Depth | 35 mm |
| Product Weight | 0.05 kg |
| Standards | IEC 60947-3 |
| Certifications | UL; GL; CSA; UKCA |
| IP Rating | IP20 |
| Mechanical Durability | Titreşimler 10…150 Hz (5 gn) (IEC 60068-2-6); Şoklar 11 ms (15 gn) (IEC 60068-2-27) |
| Operating Ambient Temperature | -20…50 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
