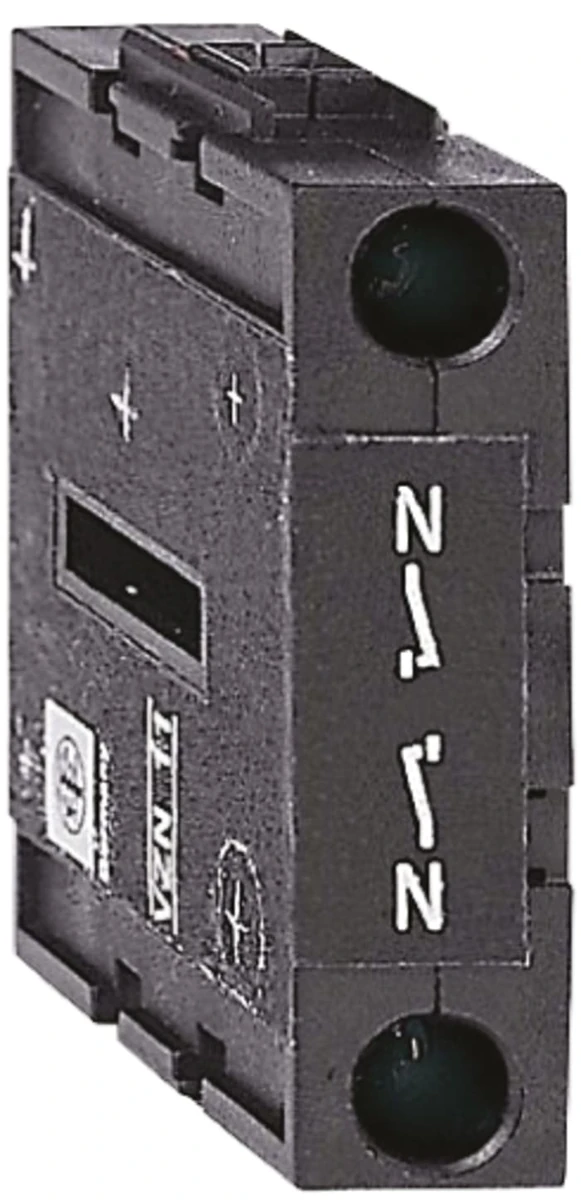

Schneider Electric VZN05 TeSys VARIO Auxiliary contact block 1NO
- Brand: Schneider Electric
- SKU: VZN05
- MPN: VZN05
- Price: 1000.80 TRY + VAT · incl. VAT 1200.96 TRY
- Availability: Made to order
- Auxiliary Contacts
- Schneider Electric Auxiliary Contacts
- Selection guide: Switchgear Auxiliary and Trip Alarm Contacts Selection Guide
- Schneider Electric VZN05 Teknik Veri Föyü (PDF)
Schneider Electric VZN05 TeSys VARIO Auxiliary contact block 1NO. Technical specifications of this model: Series: TeSys VARIO Contact Arrangement: 1NO
| Contact Arrangement | 1NO |
|---|---|
| Series | TeSys VARIO |
| Product Type | Yardımcı kontak bloğu |
| Performance Level | Standard |
| Compatible Products | VN20; VN12 |
| Current Type | AC; DC |
| Mains Frequency | 50/60 Hz |
| Mounting Position | Sol; Sağ |
| Compatible Series | TeSys TeSys VARIO VCFN bağlantı kesici |
| Rated Operational Voltage (Ue) | 690 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Conventional Free Air Thermal Current (Ith) | 6 A |
| Conventional Enclosed Thermal Current (Ithe) | 4 A |
| Mechanical Endurance | 50000 cycles |
| Electrical Endurance | 30000 cycles DC-11; 50000 cycles AC-21 |
| Connection Terminals | Vida kelepçesi terminalleri 2 kablo 0,75…1,5 mm² - kablo sertligi: esnek - Kablo uçlu; Vida kelepçesi terminalleri 2 kablo 1…2,5 mm² - kablo sertligi: katı |
| Tightening Torque | 0,7 N.m - üzerinde vida kelepçesi terminalleri |
| Height | 45.5 mm |
| Width | 12 mm |
| Depth | 39 mm |
| Product Weight | 0.02 kg |
| Standards | IEC 60947-5 |
| Certifications | GL; CSA; UL |
| IP Rating | IP20 |
| Operating Ambient Temperature | -20…50 °C |
| Fire Resistance | 960 °C (IEC 60695-2-1) |
