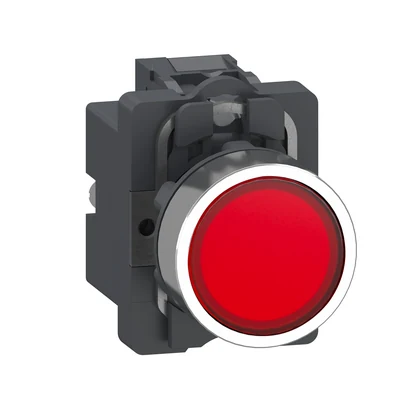

Schneider Electric XA2AW34M1 Illuminated Push Button, Flush-Mounted, Red, 1NO, AC 220 V
- Brand: Schneider Electric
- SKU: XA2AW34M1
- MPN: XA2AW34M1
- Price: 639.40 TRY + VAT · incl. VAT 767.28 TRY
- Availability: Made to order
- Spring-Return Push Buttons
- Schneider Electric Spring-Return Push Buttons
- Selection guide: Spring-Return Push Buttons Selection Guide
- Schneider Electric XA2AW34M1 Teknik Veri Föyü (PDF)
Schneider Electric XA2AW34M1 Illuminated Push Button, Flush-Mounted, Red, 1NO, AC 220 V. Technical specifications of this model: Series: XA2-Easy Contact Arrangement: 1NO
| Contact Arrangement | 1NO |
|---|---|
| Series | XA2-Easy |
| Product Type | Eksiksiz ışıklı basmalı düğme |
| Device Presentation | Angled |
| Bezel Material | Plastic |
| Fixing Ring Material | Plastic |
| Mounting Diameter | 22.5 mm |
| Operating Position | Herhangi bir konum |
| Fixing Centres | >= 30 x 40 mm (panel) 1…5 mm |
| Fixing Method | Sabitleme somunu tavsiye edilen tork: 2,2 N.m (+/- 0.2 N.m) |
| Signalling Head Shape | Round |
| Operator Profile | Kırmızı sıva altı |
| Contact Operation Type | Yavaş kesen |
| Mechanical Endurance | 1500000 cycles |
| Tightening Torque | 0,8…1,2 N.m |
| Short-Circuit Protection | 10 A gL sigorta (IEC 60269-1) |
| Conventional Free Air Thermal Current (Ith) | 10 A |
| Rated Insulation Voltage (Ui) | 600 V (IEC 60947-4-1) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (IEC 60947-1) |
| Rated Operational Current (Ie) | 0,27 A @ 250 V, DC-13, Q600; 3 A @ 240 V, AC-15, A600 |
| Signalling Type | Fixed |
| Light Source | LED |
| Lamp Holder Type | BA 9 s |
| Rated Control Supply Voltage (Us) | 220 V AC 50/60 Hz |
| Supply Voltage Limits | 176…242 V AC |
| Current Consumption | < 20 mA |
| Service Life | 20000 h |
| Width | 30 mm |
| Height | 43 mm |
| Depth | 73.5 mm |
| Product Weight | 0.042 kg |
| Head / Lens Colour | Red |
| Operating Mechanism Type | yaylı kurma |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…55 °C |
| IP Rating | IP65 |
| IK Impact Protection | IK03 (IEC 60529) |
| Standards | GB 14048.1; IEC 60947-1; GB 14048.5; IEC 60947-5-1 |
| Certifications | CCC; CE; UKCA |
| Vibration Resistance | 5 gn (f= 2…500 Hz) (IEC 60068-2-6) |
