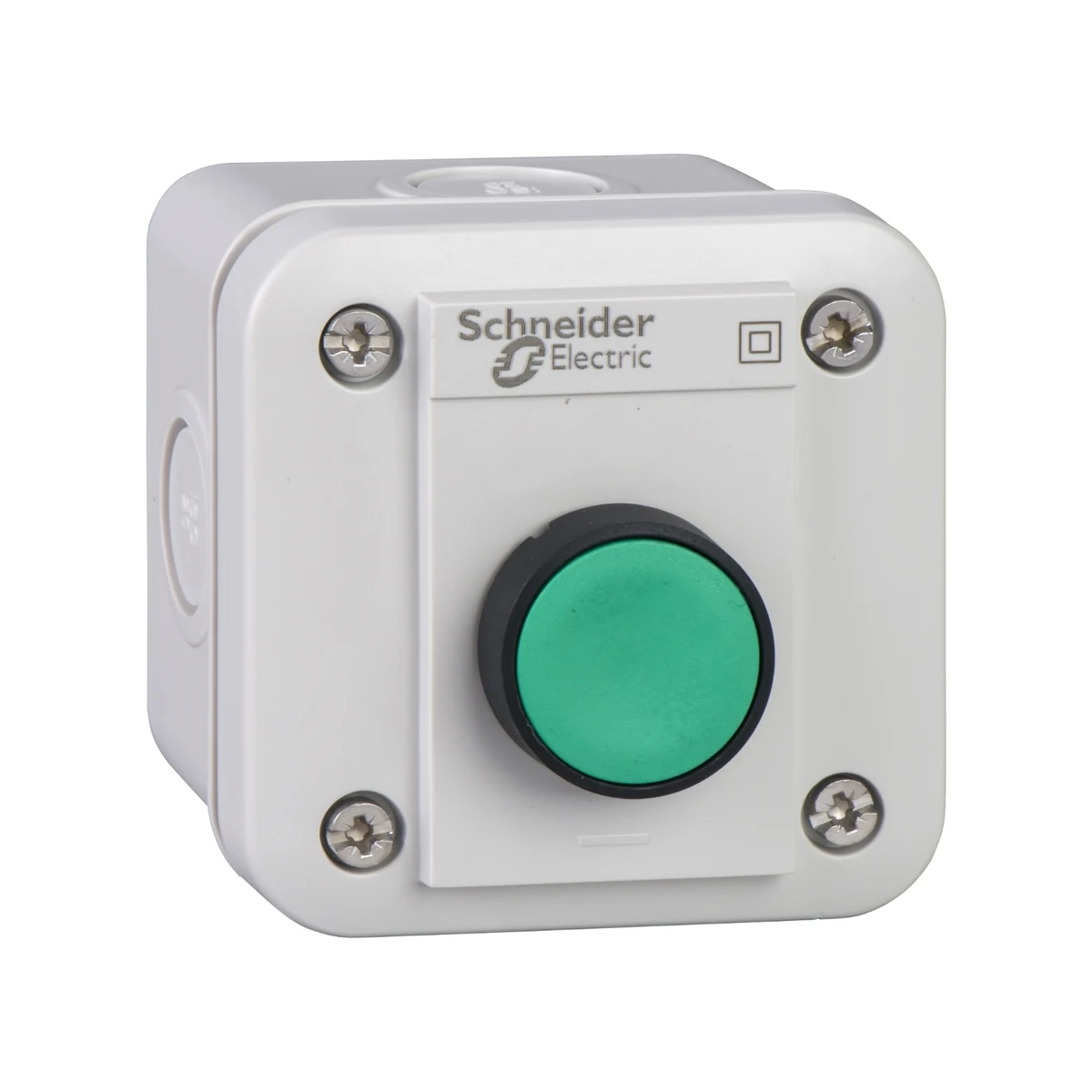

Schneider Electric XALE1011 Enclosure Green Push Button 1 NO
- Brand: Schneider Electric
- SKU: XALE1011
- MPN: XALE1011
- Price: 1389.99 TRY + VAT · incl. VAT 1667.99 TRY
- Availability: Made to order
- Push Button Control Boxes
- Schneider Electric Push Button Control Boxes
- Selection guide: Push Button Control Boxes Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XALE1011 Teknik Veri Föyü (PDF)
Schneider Electric XALE1011 Enclosure Green Push Button 1 NO. Technical specifications of this model: Contact Arrangement: 1 NO
| Contact Arrangement | 1NO |
|---|---|
| Series | Harmony XALE |
| Product Type | Eksiksiz kontrol istasyonu |
| Intended Field of Application | XB7 Ø 22 mm kontrol ve sinyalleme birimleri için |
| Control Station Application | Bir fonksiyon |
| Enclosure Base Colour | Açık gri (RAL 7035) |
| Cover Color | Açık gri (RAL 7035) |
| Material | ABS (akrilonitril butadiyen stiren) |
| IP Rating | IP54 |
| Control Station Arrangement | 1 sıva altı basmalı düğme, yeşil, yaylı kurma 1 NA |
| Contact Operation Type | Yavaş kesen |
| Cable Entry | 2 knock-out, kelepçeleme kapasitesi: 16 mm; ISO M20 için 4 knock-out |
| Product Weight | 0.1 kg |
| Conformity Markings | CE |
| Number of Command Positions | 1 |
| Number of Indicator Lights | 0 |
| Positive Opening | None |
| Number of Buttons | 1 |
| Number of Selector Switches | 0 |
| Short-Circuit Protection | 4 A kartuş sigortası tip gG (IEC 60947-5-1) |
| Number of Key Switches | 0 |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 3) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 60947-1) |
| Electrical Reliability (IEC 60947-5-4) | Λ <= 10exp(-6) @ 17 V ve 5 mA (IEC 60947-5-4) |
| Number of Mushroom Push-buttons | 0 |
| Emergency Power Off (EPO) | No |
| Number of NC Contacts | 0 |
| Number of NO Contacts | 1 |
| Number of Changeover Contacts | 0 |
| Housing Material | Plastic |
| Enclosure Colour | Grey |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…55 °C |
| Electric Shock Protection Class | Sınıf II (IEC 60536) |
| IK Impact Protection | IK05 (IEC 62262) |
| Standards | IEC 60947-1; IEC 62208; IEC 60947-5-5; IEC 60947-5-1 |
