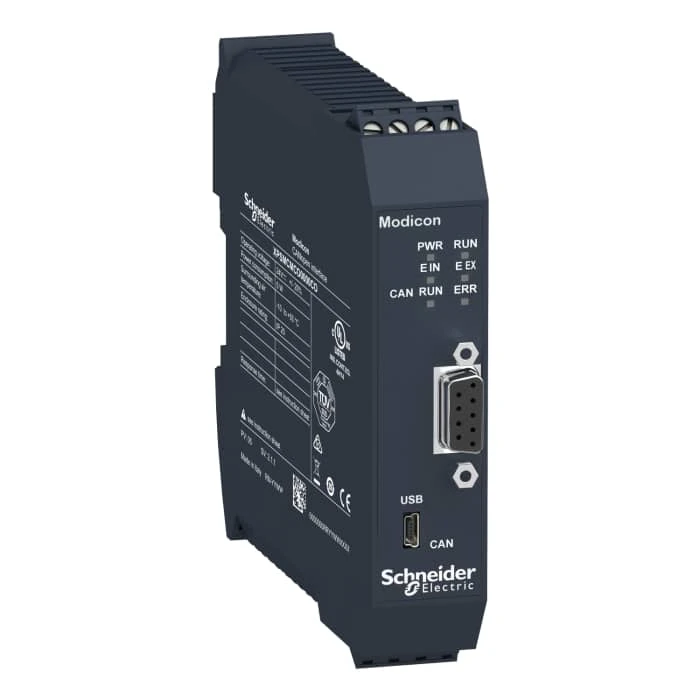

Schneider Electric XPSMCMCO0000CO Communication (non-safe) modules - CANopen
- Brand: Schneider Electric
- SKU: XPSMCMCO0000CO
- MPN: XPSMCMCO0000CO
- Price: 62660.86 TRY + VAT · incl. VAT 75193.03 TRY
- Availability: Made to order
- Safety Relays
- Schneider Electric Safety Relays
- Selection guide: Safety Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XPSMCMCO0000CO Teknik Veri Föyü (PDF)
Schneider Electric XPSMCMCO0000CO Communication (non-safe) modules - CANopen. Technical specifications of this model: Communication Protocol: CANopen
| Communication Protocol | CanOpen |
|---|---|
| Series | Modicon MCM |
| Product Type | Güvenli olmayan iletişim modülü |
| Rated Control Supply Voltage (Us) | 24 V - 20…20 % DC |
| Power Loss (W) | 3 W |
| Quality Labels | CE |
| Compatible Series | Preventa XPSMCM |
| Connector Type | erkek SUB-D 9 |
| Access Method | Sunucu |
| Transmission Speed | 10 kbit/s; 20 kbit/s; 50 kbit/s; 100 kbit/s; 125 kbit/s; 250 kbit/s; 500 kbit/s; 800 kbit/s; 1 Mbit/s; Otomatik algılanmış |
| Current Consumption | 0.125 mA |
| Maximum Cable Distance Between Devices | 2500 m; 1000 m; 750 m; 500 m; 250 m; 100 m; 50 m; 25 m |
| Connection Terminals | 2 tutucu vida kelepçesi terminalleri, çıkarılabilir terminal bloğu |
| Mounting Support | Omega 35 mm DIN rayı (EN 50022) |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Product Weight | 0.3 kg |
| Certifications | cULus; RCM; TÜV |
| IP Rating | IP20 |
| Operating Ambient Temperature | -10…55 °C |
| Storage Temperature | -20…85 °C |
| Relative Humidity | 10…95 % |
| Pollution Degree | 2 |
| Insulation | Güç kaynağı ile gövde arasında 250 V AC (IEC 61800-5-1) |
| Overvoltage category | II |
| Vibration Resistance | +/-0,35 mm (f= 10…55 Hz) (IEC 61496-1) |
| Shock Resistance | 10 gn (süre = 16 ms) için 1000 shocks on each axis (IEC 61496-1) |
| Operating Altitude | 2000 m |
| Service Life | 20 yr |
