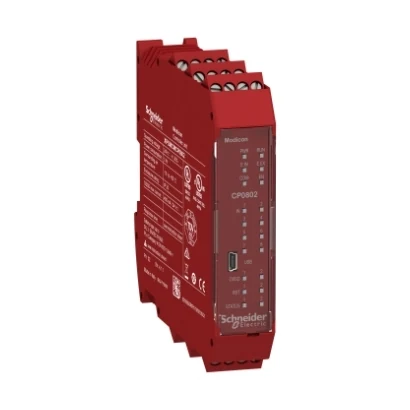

Schneider Electric XPSMCMCP0802 Safety PLC (Cat.4, Pl e, SIL3 Safety CPU), 8 safety inputs, 2 dual safety outputs, 24V DC
- Brand: Schneider Electric
- SKU: XPSMCMCP0802
- MPN: XPSMCMCP0802
- Price: 57100.89 TRY + VAT · incl. VAT 68521.07 TRY
- Availability: Made to order
- PLC CPUs
- Schneider Electric PLC CPUs
- Selection guide: PLC CPUs Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XPSMCMCP0802 Teknik Veri Föyü (PDF)
Schneider Electric XPSMCMCP0802 Safety PLC (Cat.4, Pl e, SIL3 Safety CPU), 8 safety inputs, 2 dual safety outputs, 24V DC.
| Series | Modicon Güvenlik otomasyonu |
|---|---|
| Electrical Connection | Vidalı terminal |
| Product Type | Güvenlik denetleyicisi CPU |
| Rated Control Supply Voltage (Us) | 24 V - 20…20 % DC |
| Number of Inputs | 8 dijital için giriş bağlantısı; 2 dijital için interlock start/restart or external device monitoring |
| Number of Outputs | 2 güvenlik çıkışları OSSD için contactor/drive connection; 4 test için line control outputs; 2 configurable için diagnostic connection |
| Digital Input Voltage | 24 V |
| Digital Input Type | Güvenlik girişi; PNP |
| Digital Output Type | PNP |
| Power Loss (W) | 3 W |
| Integrated Connection Type | Arka panel genişletme veriyolu; USB 2.0 portu |
| Safety Level | Kategori 4'e erişebilir (ISO 13849-1); PL = e değerine erişebilir (ISO 13849-1); Tip 4 (IEC 61496-1); SILCL 3 (IEC 62061) |
| Quality Labels | CE |
| Connection Terminals | 6 tutuculu vidalı terminal, çıkarılabilir terminal bloğu |
| Mounting Support | Omega 35 mm DIN rayı (EN 50022) |
| Depth | 114.5 mm |
| Height | 99 mm |
| Width | 22.5 mm |
| Product Weight | 0.25 kg |
| Standards | IEC 61508; ISO 13849-1; IEC 61496-1; IEC 61800-5-1; IEC 62061 |
| Certifications | cULus; RCM; TÜV |
| IP Rating | IP20 |
| Operating Ambient Temperature | -10…55 °C |
| Storage Temperature | -20…85 °C |
| Relative Humidity | 10…95 % |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 61800-5-1) |
| Safety Reliability Data (MTTFd) | PFHd = 6.06E-9 1/h; DC > % 99; MTTFd < 100 years high |
| Insulation | Güç kaynağı ile gövde arasında 250 V AC (IEC 61800-5-1) |
| Overvoltage category | II |
| Vibration Resistance | +/-0,35 mm (f= 10…55 Hz) (IEC 61496-1) |
| Shock Resistance | 10 gn (süre = 16 ms) için 1000 shocks on each axis (IEC 61496-1) |
| Service Life | 20 yr |
