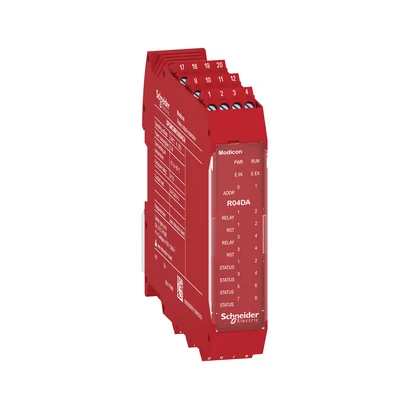

Schneider Electric XPSMCMRO0004DA Safety Relay Output Module, 4 safety relay output module with expansion bus connection, 4 independent safety relay outputs with expansion module
- Brand: Schneider Electric
- SKU: XPSMCMRO0004DA
- MPN: XPSMCMRO0004DA
- Price: 69221.63 TRY + VAT · incl. VAT 83065.96 TRY
- Availability: Made to order
- Safety Relays
- Schneider Electric Safety Relays
- Selection guide: Safety Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XPSMCMRO0004DA Teknik Veri Föyü (PDF)
Schneider Electric XPSMCMRO0004DA Safety Relay Output Module, 4 safety relay output module with expansion bus connection, 4 independent safety relay outputs with expansion module.
| Series | Preventa Güvenlik otomasyonu |
|---|---|
| Product Type | Güvenli röle çıkış modülü |
| Electrical Connection | Vidalı terminal |
| Rated Control Supply Voltage (Us) | 24 V - 20…20 % DC |
| Number of Outputs | 4 röle |
| Number of Digital Outputs | 8 solid state @ 125 mA (diagnostics) |
| Module Function | Güvenlik aktüatörleri izleme için röle çıkışı |
| Maximum Power Loss (W) | 3 W |
| Integrated Connection Type | Arka panel genişletme veriyolu |
| Associated Fuse Rating | 3,5 A, yavaş çalışan |
| Safety Level | Kategori 4'e erişebilir (ISO 13849-1); PL = e değerine erişebilir (ISO 13849-1); SIL 3'e erişebilir (IEC 61508); SILCL 3 (IEC 62061) |
| Quality Labels | CE |
| Output Type | Röle, 4 NA devre(ler), gerilimsiz |
| Minimum Switching Current | 20 mA |
| Maximum Switching Current | 6 A |
| Number of Terminal Blocks | 6 |
| Connection Terminals | 2 tutucu vida kelepçesi terminalleri, çıkarılabilir terminal bloğu; 1 tutucu vida kelepçesi terminalleri, çıkarılabilir terminal bloğu |
| Mounting Support | Omega 35 mm DIN rayı (EN 50022) |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Product Weight | 0.33 kg |
| Standards | IEC 61800-5-1; ISO 13849-1; IEC 61508; IEC 62061 |
| Certifications | cULus; TÜV; RCM |
| IP Rating | IP20 |
| Operating Ambient Temperature | -10…55 °C |
| Storage Temperature | -20…85 °C |
| Relative Humidity | 10…95 % |
| Pollution Degree | 2 |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (IEC 61800-5-1) |
| Insulation | Güç kaynağı ile gövde arasında 250 V AC (IEC 61800-5-1) |
| Overvoltage category | II |
| Vibration Resistance | +/-0,35 mm (f= 10…55 Hz) (IEC 61496-1) |
| Shock Resistance | 10 gn için 16 ms (1000 shocks on each axis) (IEC 61496-1) |
| Electrical Endurance | 20000000 cycles |
| Mechanical Endurance | 20000000 cycles |
| Service Life | 20 yr |
