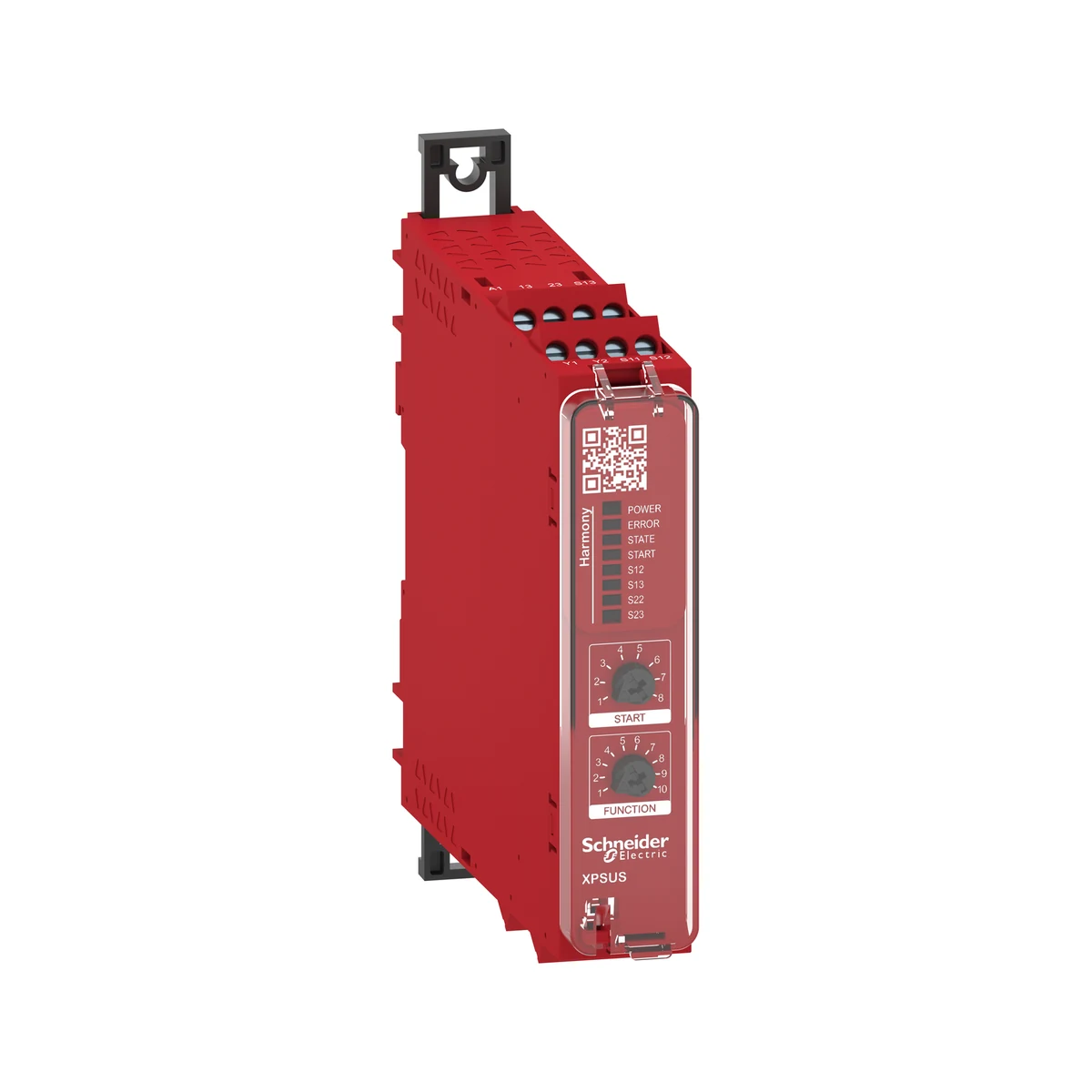

Schneider Electric XPSUS12AP E-stop, light barrier, two-hand control, edge detection, 2 safety inputs, 2NO, 24V AC/DC
- Brand: Schneider Electric
- SKU: XPSUS12AP
- MPN: XPSUS12AP
- Price: 16513.11 TRY + VAT · incl. VAT 19815.73 TRY
- Availability: Made to order
- Safety Relays
- Schneider Electric Safety Relays
- Selection guide: Safety Relays Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XPSUS12AP Teknik Veri Föyü (PDF)
Schneider Electric XPSUS12AP E-stop, light barrier, two-hand control, edge detection, 2 safety inputs, 2NO, 24V AC/DC. Technical specifications of this model: Contact Arrangement: 2NO
| Contact Arrangement | 2NO |
|---|---|
| Series | Harmony Safety Automation |
| Product Type | Güvenlik modülü |
| Safety Level | PL e/kategori 4 değerine erişebilir (ISO 13849-1); SILCL 3'e erişebilir (IEC 62061); SIL 3'e erişebilir (IEC 61508) |
| Electrical Circuit Type | NC çifti; PNP çifti; Antivalent çift; OSSD çifti |
| Rated Control Supply Voltage (Us) | 24 V AC % - 15…10; 24 V DC - 20…20 % |
| Starting Type | Otomatik/manuel/izlenen |
| Power Consumption (W) | 2 W 24 V DC |
| Power Consumption (VA) | 5,0 VA 24 V AC 50/60 Hz |
| Input Protection Type | Iç, elektronik |
| Safety Outputs | 2 NA |
| Safety Inputs | 2 safety input 24 V DC 5 mA |
| Control Outputs | 3 on/off yapılandırılabilir pulsed output |
| Input / Output Type | Yarı iletken darbeli tanılama çıkışı 24 V DC, 20 mA Z1, güvenlikle ilgili değil |
| Conventional Free Air Thermal Current (Ith) | 8 A |
| Associated Fuse Rating | 10 A gG için NA röle çıkış devresi (IEC 60947-1) |
| Minimum Output Current | 10 mA için röle çıkışı |
| Minimum Output Voltage | 12 V için röle çıkışı |
| Maximum Response Time with Input Open | 20 ms |
| Rated Insulation Voltage (Ui) | 250 V (kirlilik derecesi 2) (IEC 60947-1) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV asiri gerilim kategorisi II (IEC 60947-1) |
| Mounting Support | 35 mm simetrik DIN rayı |
| Depth | 120 mm |
| Height | 100 mm |
| Width | 22.5 mm |
| Product Weight | 0.2 kg |
| Certifications | TÜV; cULus |
| IP Rating | IP20 (terminaller) (IEC 60529); IP40 (muhafaza) (IEC 60529); IP54 (montaj alanı) (IEC 60529) |
| Storage Temperature | -25…85 °C |
| Relative Humidity | 5…95 % yoğuşmasız |
