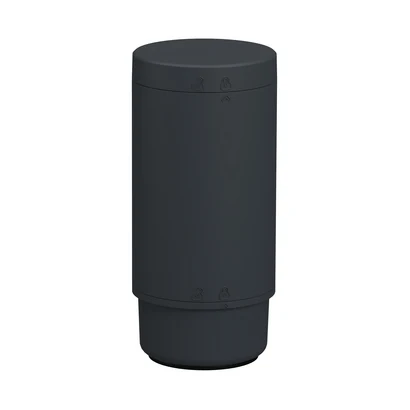

Schneider Electric XVB7C21M AC Base, Direct/Tube with Cover, Gray
- Brand: Schneider Electric
- SKU: XVB7C21M
- MPN: XVB7C21M
- Price: 14122.32 TRY + VAT · incl. VAT 16946.78 TRY
- Availability: Made to order
- Stack Lights and Warning Lights
- Schneider Electric Stack Lights and Warning Lights
- Selection guide: Stack Lights and Warning Lights Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XVB7C21M Teknik Veri Föyü (PDF)
Schneider Electric XVB7C21M AC Base, Direct/Tube with Cover, Gray.
| Series | Harmony XVB7 |
|---|---|
| Product Type | Taban modül |
| Device Arrangement | Base direct/tube & cover |
| Mounting Diameter | 70 mm |
| Electrical Connection | AC |
| Communication Protocol | - |
| Fixing Method | Doğrudan veya boru sabitleme |
| Mounting Position | Upright/inverted |
| Mounting Style | Up to 4 Modules (3 lens + 1 sound or 4 lens) |
| Material | Polikarbonat |
| Enclosure Colour | Koyu gri |
| Product Weight | 0.28 kg |
| Rated Operational Voltage (Ue) | 100…240 V AC 50/60 Hz; 120 V DC |
| Electric Shock Protection Class | Class II |
| Current Consumption | 3 mA |
| Output Current | 230 mA max |
| Connection Terminals | Spring clamp terminals (push 'n stay), 5 x 0.34…5 x 1.5 mm² Kablo uçlu; Spring clamp terminals (push 'n stay), 5 x 0.34…5 x 1.5 mm² kablo uçsuz |
| Cable Entry | Alt |
| Rated Insulation Voltage (Ui) | 264 V |
| Rated Lightning Impulse Withstand Voltage (Up) | 2.5 kV |
| Pollution Degree | 2 |
| Operating Ambient Temperature | -25…60 °C |
| Storage Temperature | -40…70 °C |
| IP Rating | IP66 |
