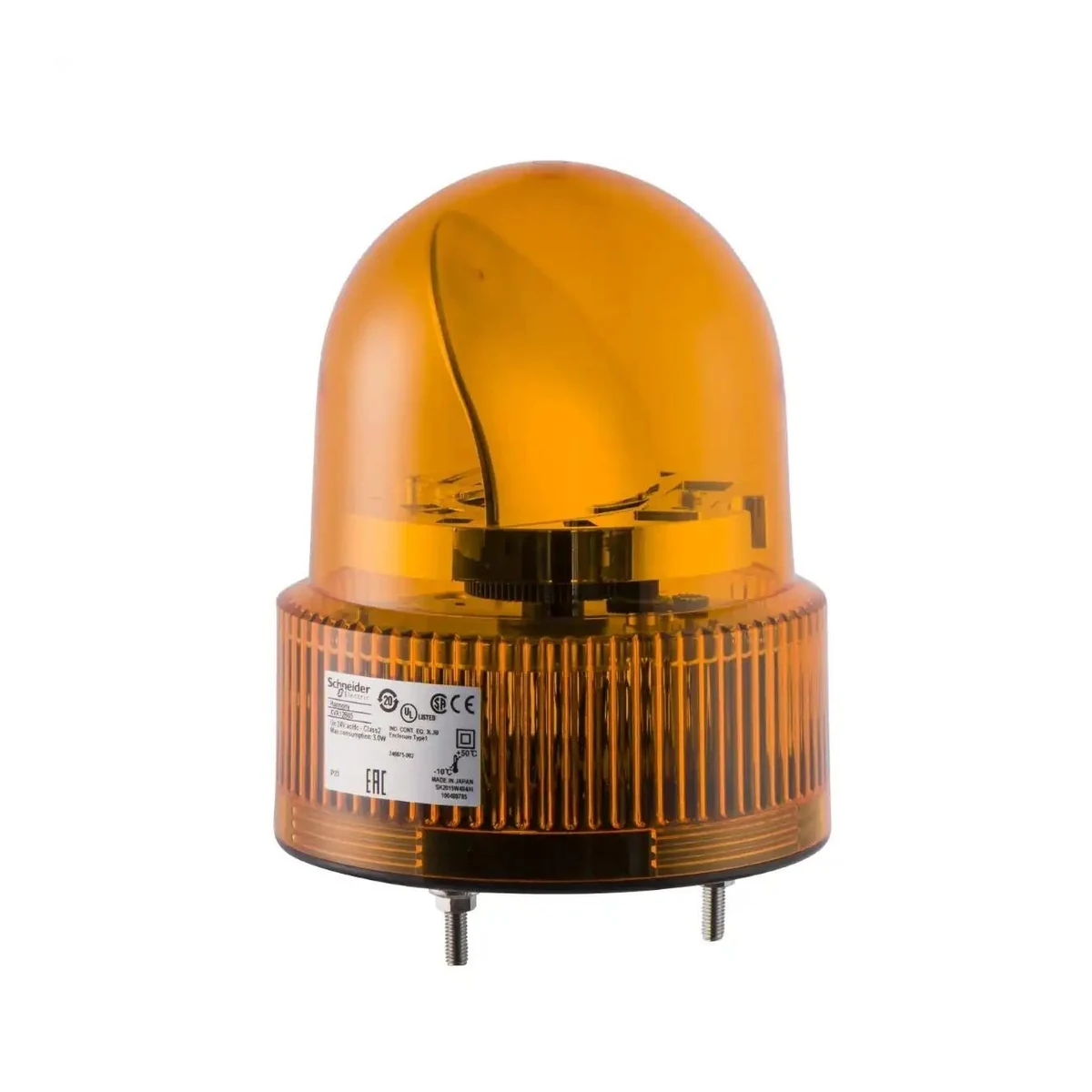

Schneider Electric XVR12B05S Rotating beacon lambası,turuncu,LED,24VAC/DC, buzzer
- Brand: Schneider Electric
- SKU: XVR12B05S
- MPN: XVR12B05S
- Price: 19793.49 TRY + VAT · incl. VAT 23752.19 TRY
- Availability: Made to order
- Stack Lights and Warning Lights
- Schneider Electric Stack Lights and Warning Lights
- Selection guide: Stack Lights and Warning Lights Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric XVR12B05S Teknik Veri Föyü (PDF)
Schneider Electric XVR12B05S Rotating beacon lambası,turuncu,LED,24VAC/DC, buzzer. Technical specifications of this model: Product Weight: 0.5 kg Color: Orange
| Color | Orange |
|---|---|
| Product Weight | 0.5 kg |
| Series | Harmony XVR |
| Product Type | Ön kablolu döner ayna gösterge ışığı |
| Signalling Option | Alarm cihazı |
| Mounting Diameter | 120 mm |
| IP Rating | IP23 |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Light Source | Yüksek parlaklıklı LED, turuncu |
| Noise Level | 50…90 dB (sürekli veya kesintili ton) @ 1 m |
| Material | ABS (akrilonitril butadiyen stiren): gövde parçası; AS: küre |
| Conformity Markings | CE |
| Supply Voltage Limits | 19…30 V DC; 21,6…26,4 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 0.8 kV |
| Current Consumption | 196 mA |
| Flashing Frequency | 2.3 Hz |
| Clamping Connection Capacity | 0.83 mm² |
| Cable Length | 400 mm |
| Standards | IEC 61000-6-4; IEC 61000-6-2 |
| Storage Temperature | -35…70 °C |
| Operating Ambient Temperature | -10…50 °C |
| Electric Shock Protection Class | Sınıf II (IEC 61140) |
