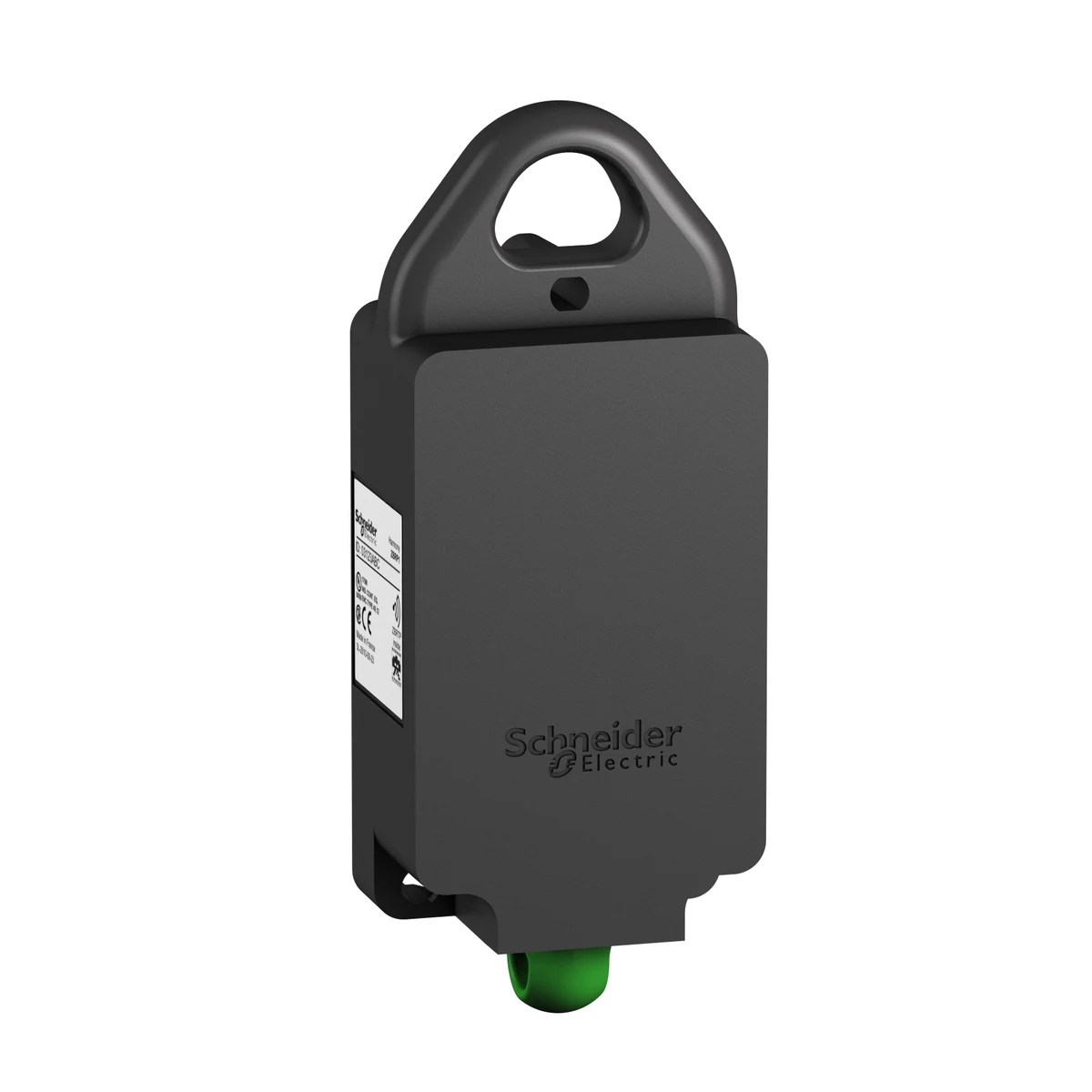

Schneider Electric ZBRP1 PULL-CORD SWITCH
- Brand: Schneider Electric
- SKU: ZBRP1
- MPN: ZBRP1
- Price: 14622.72 TRY + VAT · incl. VAT 17547.26 TRY
- Availability: Made to order
- Push Buttons
- Schneider Electric Push Buttons
- Selection guide: Push Buttons Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric ZBRP1 Teknik Veri Föyü (PDF)
Schneider Electric ZBRP1 PULL-CORD SWITCH.
| Series | Harmony XB5R |
|---|---|
| Product Type | Kablosuz ve pilsiz iletici |
| Bezel Material | Plastic |
| Transmission Frequency | 2405 MHz |
| Emission Class | 5M00G7W |
| Antenna Type | Çok yönlü |
| Channel Count | 1 |
| Antenna Gain | 0 dBi |
| Product Weight | 0.15 kg |
| Mechanical Endurance | Serbest düşme direnci 1 m (EN/IEC 60068-2-31) |
| Standards | UL 508; EN/IEC 60947-1; EN/IEC 62479; EN/IEC 60947-5-1; EN/IEC 300328 |
| Radio Approvals | ICASA; GITEKI |
| Communication Protocol | Zigbee yeşil güç @ 2,4 GHz (IEEE 802.15.4) |
| Maximum Detection Distance | 100 m serbest alanda |
| Emission Power | 3 mW |
| Fixing Method | Vidayla: 1,8…2,2 N.m |
| Mounting Type | 2 halat arasında; Panel mount with universal support |
| Operating Position | Herhangi bir konum |
| Storage Temperature | -40…70 °C |
| Operating Ambient Temperature | -25…70 °C |
| Relative Humidity | 95 % yoğuşmasız |
| IP Rating | IP65 (IEC 62262) |
| NEMA protection rating | NEMA 4 |
| IK Impact Protection | IK05 (IEC 62262) |
| Certifications | UL; GOST; CE; RCM; ANATEL; FCC; UKCA |
