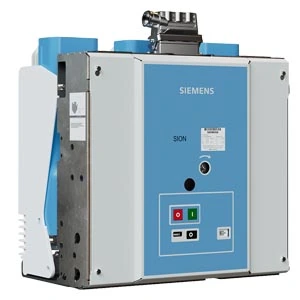

Siemens 3AE5284-6AE40-0EN2 Vacuum Circuit Breaker 2500 A
- Brand: Siemens
- SKU: 3AE5284-6AE40-0EN2
- MPN: 3AE5284-6AE40-0EN2
- Price: 1171207.68 TRY + VAT · incl. VAT 1405449.22 TRY
- Availability: Made to order
- Medium Voltage Circuit Breakers
- Selection guide: Medium Voltage Circuit Breakers Selection Guide: Technical Criteria and Engineering Practice
Siemens 3AE5284-6AE40-0EN2 Vacuum Circuit Breaker 2500 A. Rated short-circuit current: 25 kA Rated Voltage: 17.5 kV Rated Current: 2500 A Manufacturer type: 3AE5 Manufacturer declared standards: IEC 62271-100 Circuit breaker class: E2/M2/C2 Mechanical operating life: 10,000 open-close operations Auxiliary Supply Voltage: 110 V DC Auxiliary Contact Arrangement: 12 NO + 12 NC Plug and socket connection: 64 pin Locking: Mechanical Frequency: 50 Hz Distance between poles: 210 mm Upper to lower contact distance: 310 mm Opening coil count: 1 Closing coil count: 1 Trip indication signal: Yes Installation environment: Indoor type
| Rated Current | 2500 A |
|---|---|
| Rated Voltage | 17.5 kV |
| Rated short-circuit current | 25 kA |
| Model | 3AE5284-6AE40-0EN2 |
| Manufacturer type | 3AE5 |
| Product Type | Vakum Kesici |
| Manufacturer declared standards | IEC 62271-100 |
| Circuit breaker class | E2/M2/C2 |
| Mechanical operating life | 10.000 açma-kapama |
| Auxiliary supply voltage | 110 V DC |
| Auxiliary contact configuration | 12 NO + 12 NC |
| Plug and socket connection | 64 pin |
| Locking | Mekanik |
| Frequency | 50 Hz |
| Distance between poles | 210 mm |
| Upper to lower contact distance | 310 mm |
| Opening coil count | 1 |
| Closing coil count | 1 |
| Trip indication signal | Available |
| Installation environment | Dahili tip |
