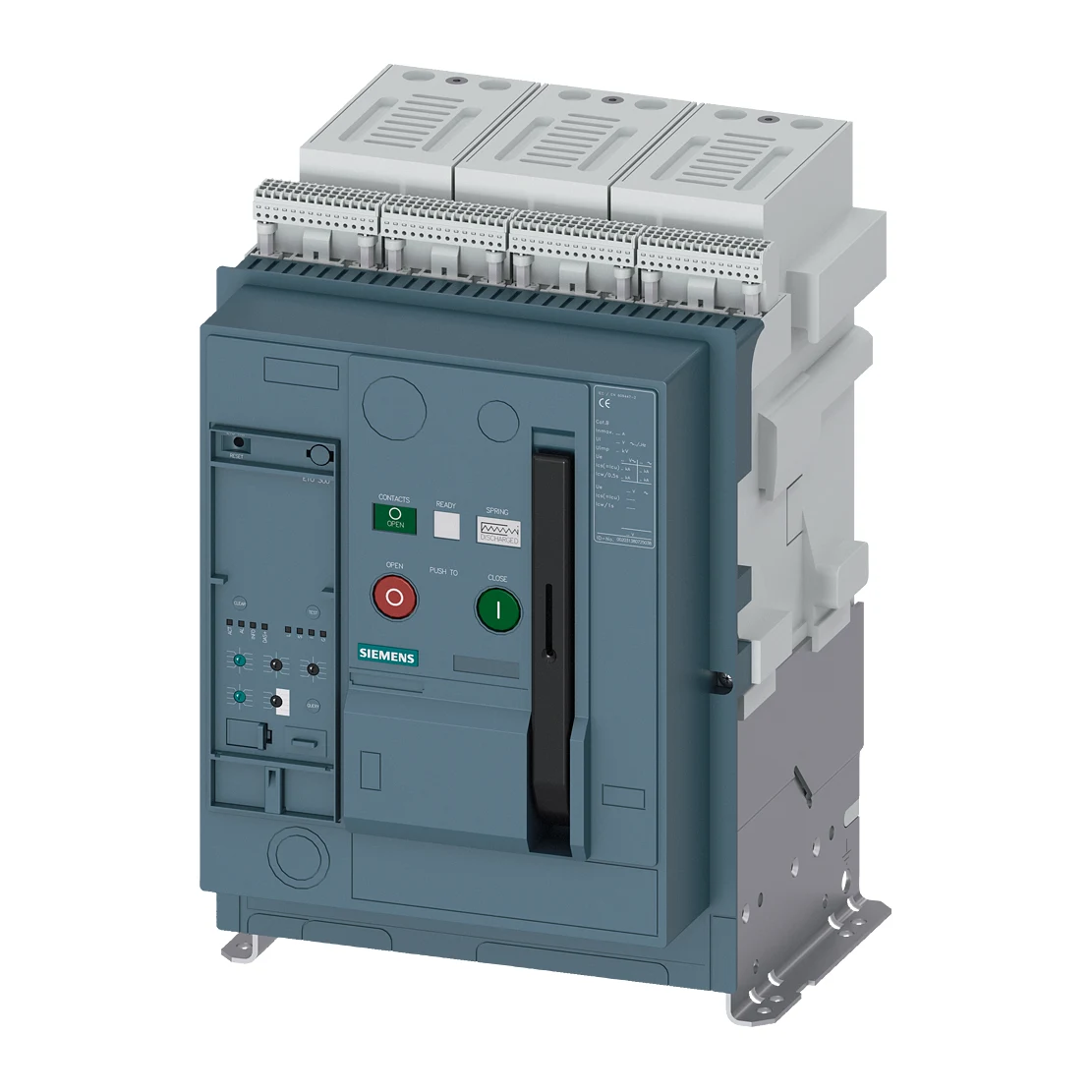

Siemens 3WA1116-8AB02-0AA0 Air Circuit Breaker 1600 A 3-Pole

• Brand: Siemens
• SKU: 3WA1116-8AB02-0AA0
• MPN: 3WA1116-8AB02-0AA0
• Price: 500828.00 TRY + VAT · incl. VAT 600993.60 TRY
• Availability: Made to order
• Open Type Power Circuit Breakers
• Siemens Open Type Power Circuit Breakers
• Selection guide: Open Type Power Circuit Breakers (ACB) Selection Guide

Siemens 3WA1116-8AB02-0AA0 Air Circuit Breaker 1600 A 3-Pole. Maximum Rated Current: 1600 A 690 V / 1000 V Ics = Icu Breaking Capacity: 85 / 50 kA Rated Current: 1600 A Frame size: I Number of poles: 3 Trip unit: ETU300 Mounting Type: Fixed Voltage connection direction: From top Communication equipment: Communication module is added separately Standard current module: Module corresponding to the maximum rated current Protection functions: LSI Rated Voltage: 1000 V AC Auxiliary Contact Arrangement: 2 NO + 2 NC Main contact wear indicator: Yes Ready to close indicator and contact: Yes Trip indication contact: Yes Spring Charged Contact: Yes Ambient temperature for rated current: Up to 55 °C Neutral protection support: Yes Current measurement function: None Display: None DAS+ input and output: Yes LED fault indicator: Yes Internal Test Function: With or without tripping TD400 Energizing with Test Device: Yes Bluetooth and USB-C: No Firmware update: None Power bank supply: No Breaking capacity voltage mapping: 85 kA (690 V); 50 kA (1000 V)
