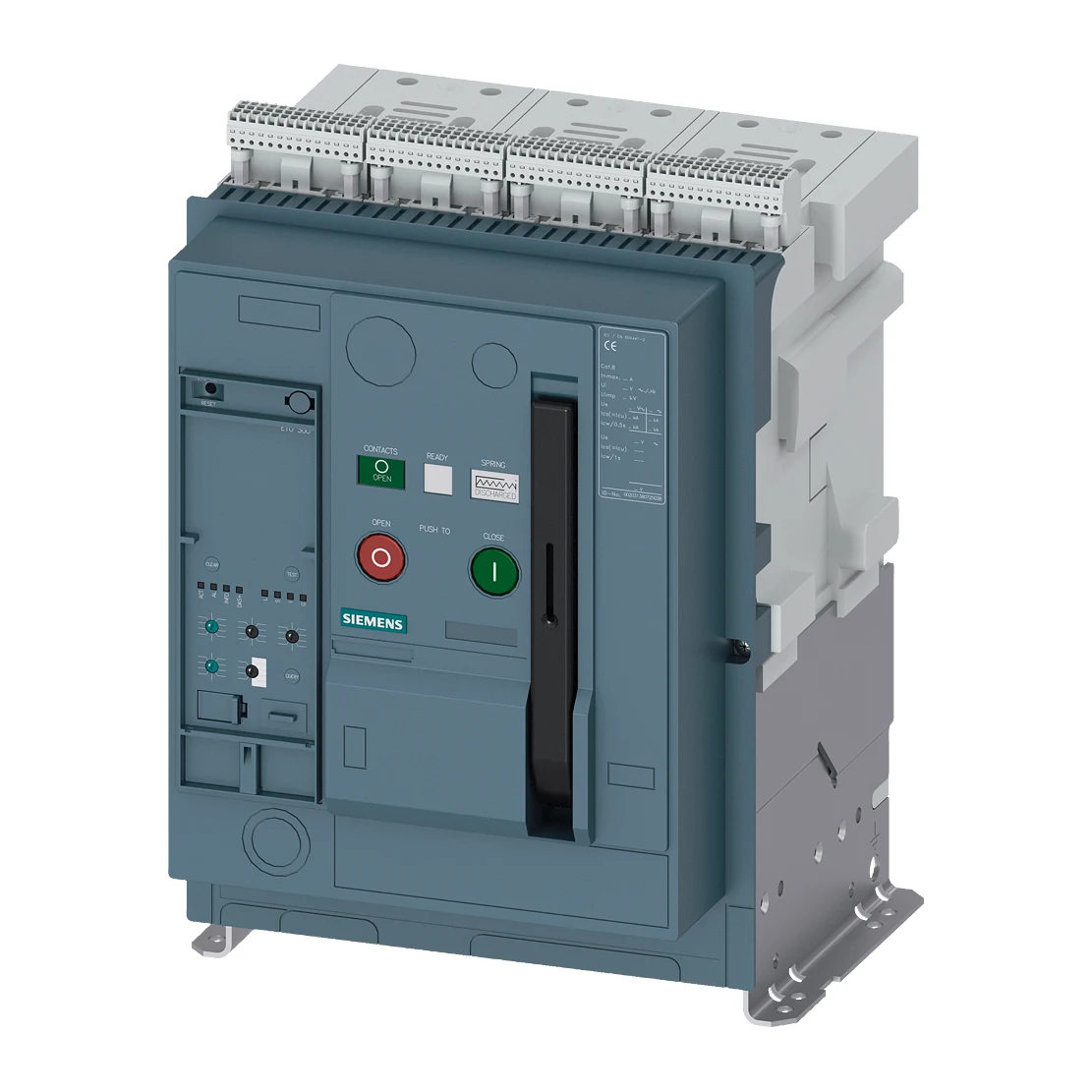

Siemens 3WA1120-8AB02-0AA0 Air Circuit Breaker 2000 A 3-Pole
- Brand: Siemens
- SKU: 3WA1120-8AB02-0AA0
- MPN: 3WA1120-8AB02-0AA0
- Price: 598491.00 TRY + VAT · incl. VAT 718189.20 TRY
- Availability: Made to order
- Open Type Power Circuit Breakers
- Siemens Open Type Power Circuit Breakers
- Selection guide: Open Type Power Circuit Breakers (ACB) Selection Guide
Siemens 3WA1120-8AB02-0AA0 Air Circuit Breaker 2000 A 3-Pole. Maximum Rated Current: 2000 A 690 V / 1000 V Ics = Icu Breaking Capacity: 85 / 50 kA Rated Current: 2000 A Frame size: I Number of poles: 3 Trip unit: ETU300 Mounting Type: Fixed Voltage connection direction: From top Communication equipment: Communication module is added separately Standard current module: Module corresponding to the maximum rated current Protection functions: LSI Rated Voltage: 1000 V AC Auxiliary Contact Arrangement: 2 NO + 2 NC Main contact wear indicator: Yes Ready to close indicator and contact: Yes Trip indication contact: Yes Spring Charged Contact: Yes Ambient temperature for rated current: Up to 55 °C Neutral protection support: Yes Current measurement function: None Display: None DAS+ input and output: Yes LED fault indicator: Yes Internal Test Function: With or without tripping TD400 Energizing with Test Device: Yes Bluetooth and USB-C: No Firmware update: None Power bank supply: No Breaking capacity voltage mapping: 85 kA (690 V); 50 kA (1000 V)
| Ics = Icu breaking capacity at 690 V / 1000 V | 85 / 50 kA |
|---|---|
| Rated Current | 2000 A |
| Maximum rated current | 2000 A |
| Frame size | I |
| Model | 3WA1120-8AB02-0AA0 |
| Product Type | Açık Tip Güç Şalteri |
| Number of Poles | 3P |
| Trip unit | ETU300 |
| Mounting Type | Fixed |
| Voltage connection direction | Üstten |
| Communication equipment | Haberleşme modülü ayrıca eklenir |
| Standard current module | Azami anma akımına karşılık gelen modül |
| Protection Functions | LSI |
| Rated Voltage | 1000 V AC |
| Auxiliary contact configuration | 2 NO + 2 NC |
| Main contact wear indicator | Available |
| Ready to close indicator and contact | Available |
| Trip indication contact | Available |
| Spring charged contact | Available |
| Ambient temperature for rated current | 55 °C değerine kadar |
| Neutral protection support | Available |
| Current measurement function | None |
| Display | None |
| DAS+ input and output | Available |
| LED fault indicator | Available |
| Internal test function | Trip yaptırarak veya trip yaptırmadan |
| TD400 test device supply | Available |
| Bluetooth and USB-C | None |
| Firmware update | None |
| Power bank supply | None |
| Breaking capacity voltage mapping | 85 kA (690 V); 50 kA (1000 V) |
