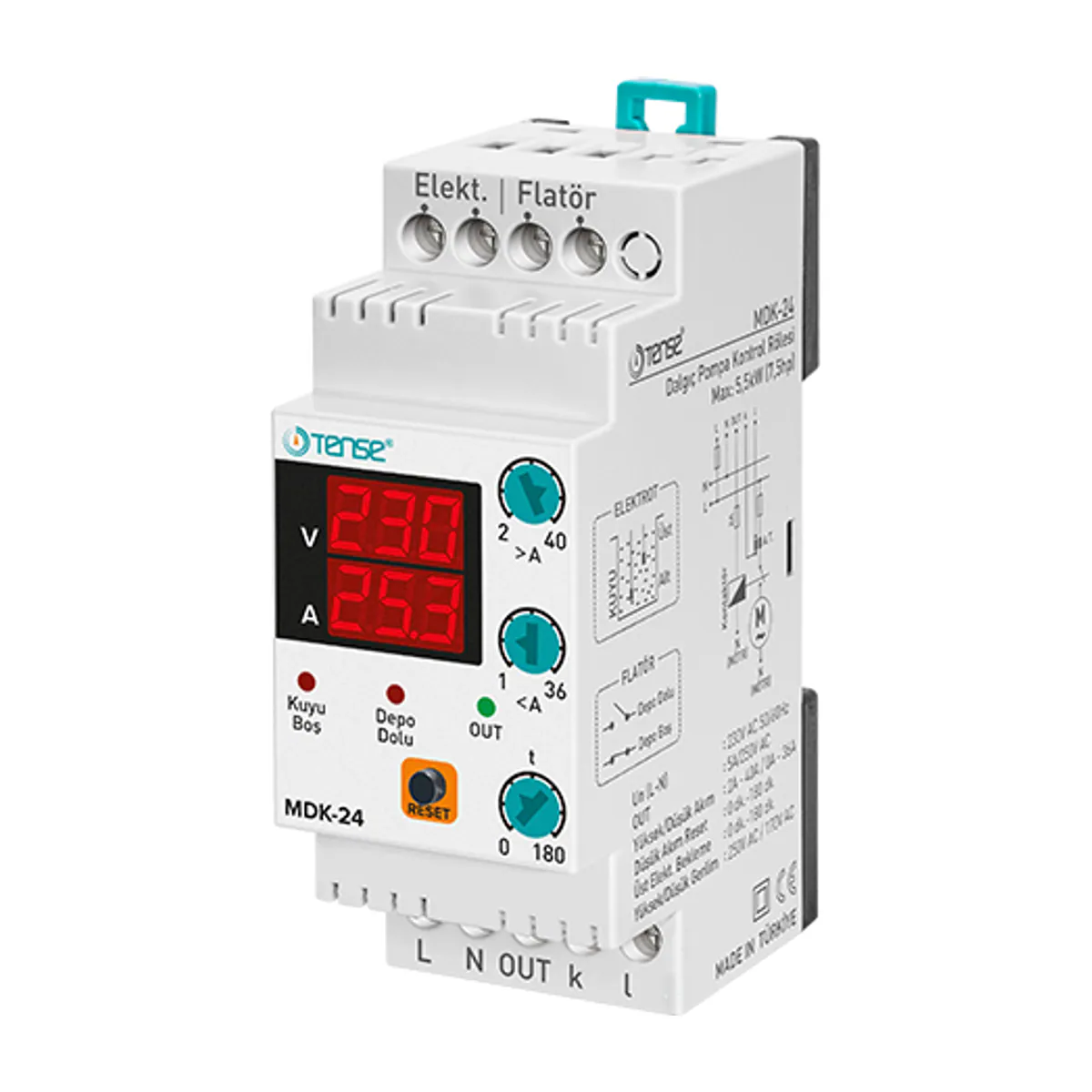

Tense MDK-24 Single-Phase Submersible Pump Control Relay, 2–40 A, DIN Rail
- Brand: Tense
- SKU: MDK-24
- MPN: MDK-24
- Price: 1551.00 TRY + VAT · incl. VAT 1861.20 TRY
- Availability: In stock
- Submersible Pump Control Relays
- Selection guide: Control, Timer, and Safety Relays Selection Guide
Tense MDK-24 is a single-phase submersible pump control relay. Phase Type: Single-phase; Current Range: 2–40 A; Dimensions / Enclosure: DIN rail; Measurement Connection: Single phase (single current transformer); Protection Functions: High-low voltage, High-low current. Designed to control submersible pumps and motors in wells and similar locations and to protect them against dry running and adverse conditions caused by high or low voltage and current. Key Features: 2A – 40A; High/Low Voltage Protection; High/Low Current Protection; Voltage Asymmetry Protection; Fault Wait Time (Fixed); Automatic Reset Time (Adjustable for low current, fixed for voltages); Upper Electrode Wait Time; Fuse Current Protection; Electrode and Float Can Be Connected.
| Phase Type | 1-Phase |
|---|---|
| Dimensions / Enclosure | DIN rail |
| Measurement Connection | Tek faz (tek akım trafolu) |
| Current Range | 2–40 A |
| Protection Functions | Yüksek-düşük gerilim, Yüksek-düşük akım |
| Key Features | 2A – 40A; Yüksek/Düşük Gerilim Koruma; Yüksek/Düşük Akım Koruma; Gerilim Asimetri Koruma; Hata Bekleme Zamanı (Sabit); Otomatik Reset Zamanı (Düşük akım için ayarlanabilir, gerilimler için sabit); Üst Elektrod Bekleme Zamanı; Sigorta Akımı Koruması; Elektrot ve Flatör Bağlanabilir |
