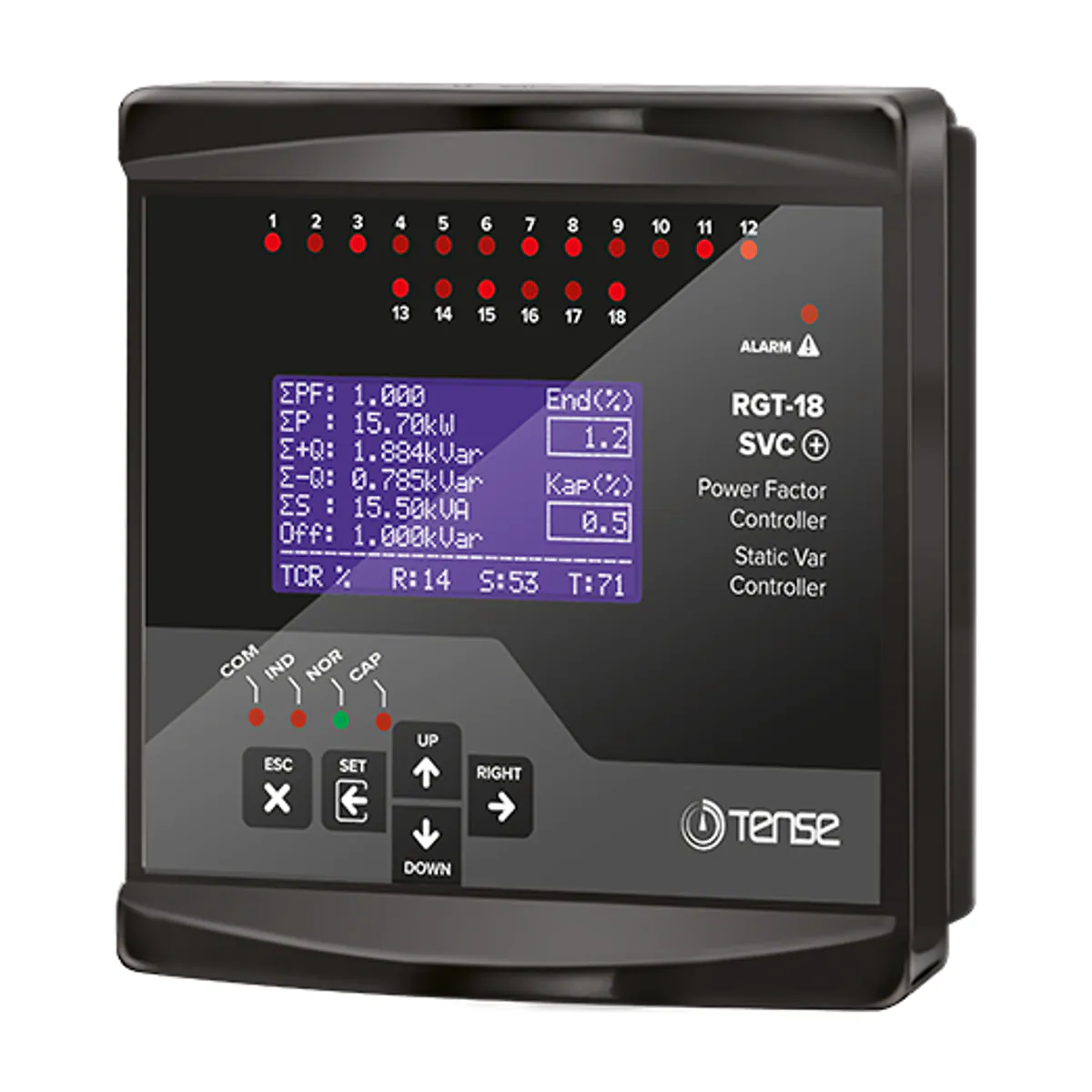

Tense RGT-18 SVC Three-Phase Reactive Power Control Relay, 18 steps + TCR
- Brand: Tense
- SKU: RGT-18 SVC
- MPN: RGT-18 SVC
- Price: 9202.60 TRY + VAT · incl. VAT 11043.12 TRY
- Availability: In stock
- Three-Phase Reactive Power Control Relays
- Tense Three-Phase Reactive Power Control Relays
- Selection guide: Three-Phase Reactive Power Control Relays Selection Guide: Technical Criteria and Engineering Practice
Tense RGT-18 SVC, three-phase reactive power control relay. Number of Steps: 18 + TCR; Display: Graphic LCD; SVC Compatibility: Yes; Communication: RS-485; Measurement Connection: 3 phase, 3 current. Reactive power control relays are designed to reduce the reactive (inductive and capacitive) power that the loads do not use but that is drawn from the grid. If inductive reactive power is drawn from the mains, it intervenes by switching in a capacitor of suitable value. If capacitive reactive power is drawn from the mains, it intervenes by switching in a shunt reactor of suitable value. In this way, it tries to reduce the system's inductive/active and capacitive/active ratios. The RGT-18SVC is designed for more precise power factor correction in unbalanced inductive and capacitive systems with its TCR (SVC) step. Key Features: 2.9″ Graphic LCD Display for Easy Installation and Use; Voltage, Harmonic Current/Voltage, Inductive and Capacitive Alarm Output; Generator Input and Generator Compensation; Response, Discharge and Settling Times Adjustable; Remote Communication via RS485 (RS485 ModBus RTU); Step Value Can Be Entered Manually; Single-Phase, Two-Phase and 3-Phase Capacitors and Shunt Reactors Can Be Connected; Turkish and English Language Option; 31. Current and Voltage Harmonics Can Be Monitored Up to the Harmonic Order; Power Factor and Cosine Values of Each Phase Can Be Monitored; Capacitive/Active and Inductive/Active Ratios Can Be Monitored; Total Energies (Import/Export) Can Be Monitored; THD-V and THD-I Values of Each Phase Can Be Monitored; Power Analysis Generation (20 samples 9999 min.); Current and Voltage Values of Each Phase Can Be Monitored; Password-Protected Menu; Equal Aging Across Steps.
| Number of Steps | 18 + TCR |
|---|---|
| Display | Grafik LCD |
| Communication | RS-485 |
| SVC Compatibility | Available |
| Functions | Jeneratör modu, Alarm durumu, Güç akış grafiği |
| Measurement Connection | 3 faz, 3 akım |
| Connectable Step Types | Tek faz kondansatör, İki faz kondansatör, Üç faz kondansatör, Tek faz şönt reaktör, İki faz şönt reaktör, Üç faz şönt reaktör, TCR (tristör kontrollü reaktör) |
| Measured Parameters | Gerilim ve akım, Güç faktörü, cos φ, 2.–31. harmonik (V-I), Aktif güç, Reaktif güç, Aktif enerji (kWh), Reaktif enerji (kVArh), THD-I |
| Inputs and Outputs | Alarm röle çıkışı |
| Key Features | 2.9″ Grafik LCD Ekran ile Kolay Kurulum ve Kullanım; Gerilim, Harmonik Akım/Gerilim, Endüktif ve Kapasitif Alarm Çıkışı; Jeneratör Girişi ve Jeneratör Kompanzasyonu; Müdahale, Deşarj ve Yerleşme Zamanları Ayarlanabilir; RS485 ile Uzaktan Haberleşme (RS485 ModBus RTU); Elle Kademe Değeri Girilebilir; Tek Faz , İki Faz ve 3 Faz Kondansatör ve Şönt Reaktör Bağlanabilir; Türkçe ve İngilizce Dil Seçeneği; 31. Harmoniğe Kadar Akım ve Gerilim Harmoniği İzlenebilir; Her Faza ait Power Faktör ve Kosinüs Değerleri İzlenebilir; Kapasitif/Aktif ve Endüktif/Aktif Oranları İzlenebilir; Toplam Enerjiler (Import/Export) İzlenebilir; Her Faza ait THD-V ve THD-I Değerleri İzlenebilir; Güç Analizi Oluşturma (20 örnek 9999dk.); Her faza ait Akım ve Gerilim Değerleri İzlenebilir; Şifreli Korumalı Menü; Kademelerde Eş Yaşlandırma |
