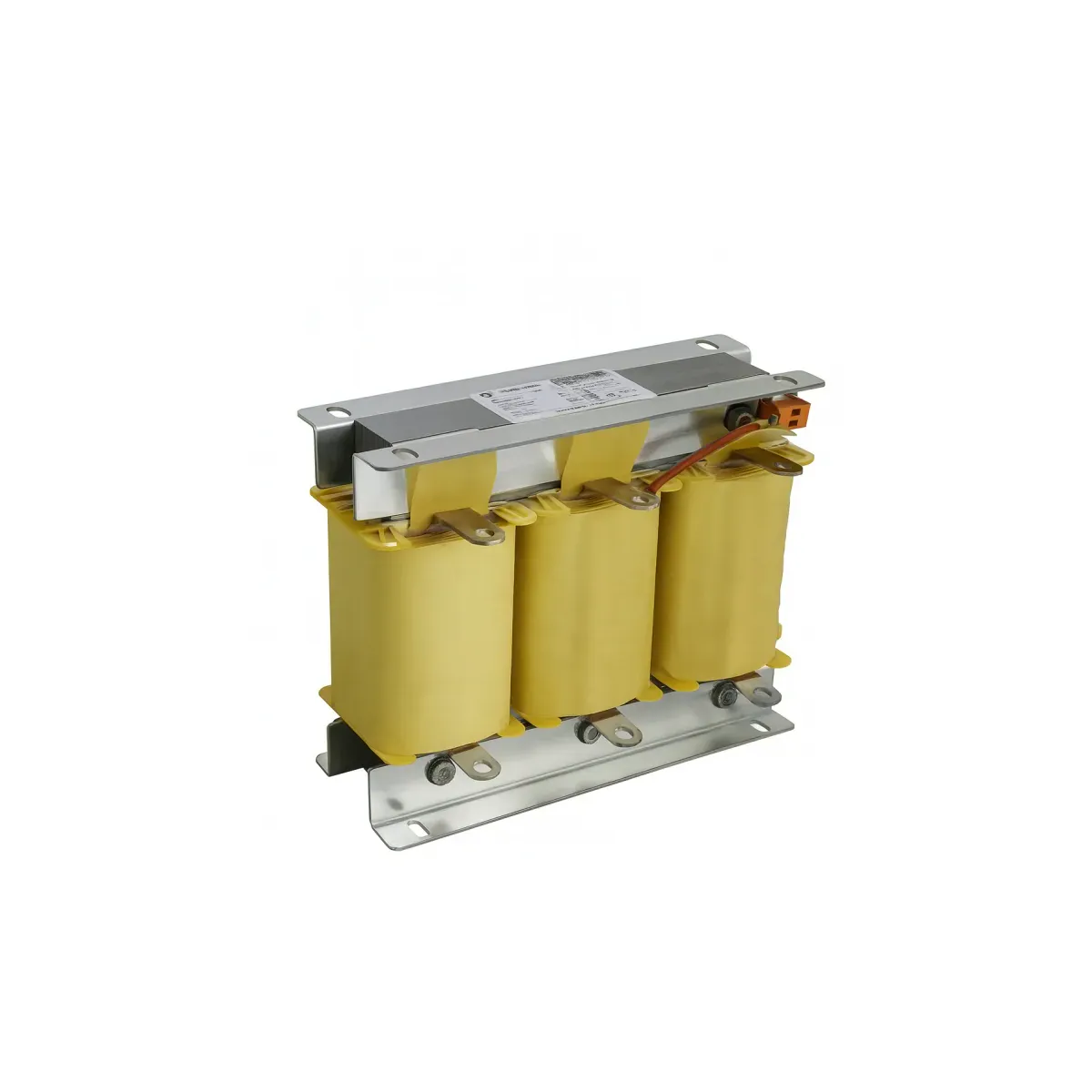

Tibcon 1 kVAr Three-Phase Harmonic Filter 7% - HRT-73401
- Brand: Tibcon
- SKU: TBHR5201
- MPN: TBHR5201
- Price: 2512.49 TRY + VAT · incl. VAT 3014.99 TRY
- Availability: In stock
- Three-Phase Harmonic Filters
- Tibcon Three-Phase Harmonic Filters
- Selection guide: Three-Phase Harmonic Filters Selection Guide: Technical Criteria and Engineering Practice
Tibcon 1 kVAr Three-Phase Harmonic Filter 7% - HRT-73401. Three-Phase Harmonic Filters are used in Power Factor Correction panels with drives and switching loads. Technical data: Power 1 kVAr. Stock code: TBHR5201.
| Power | 1 kVAr |
|---|---|
| Inductance | 38,33 mH |
| Current | 1,6 A (I rms) |
| Connection Type | Klemens |
| Product Net Weight | 1.5 kg |
| Reactor detuning factor | p=%7 |
| Resonance Frequency | 189 Hz |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Thermal Protection | 120C (NC kontak) |
