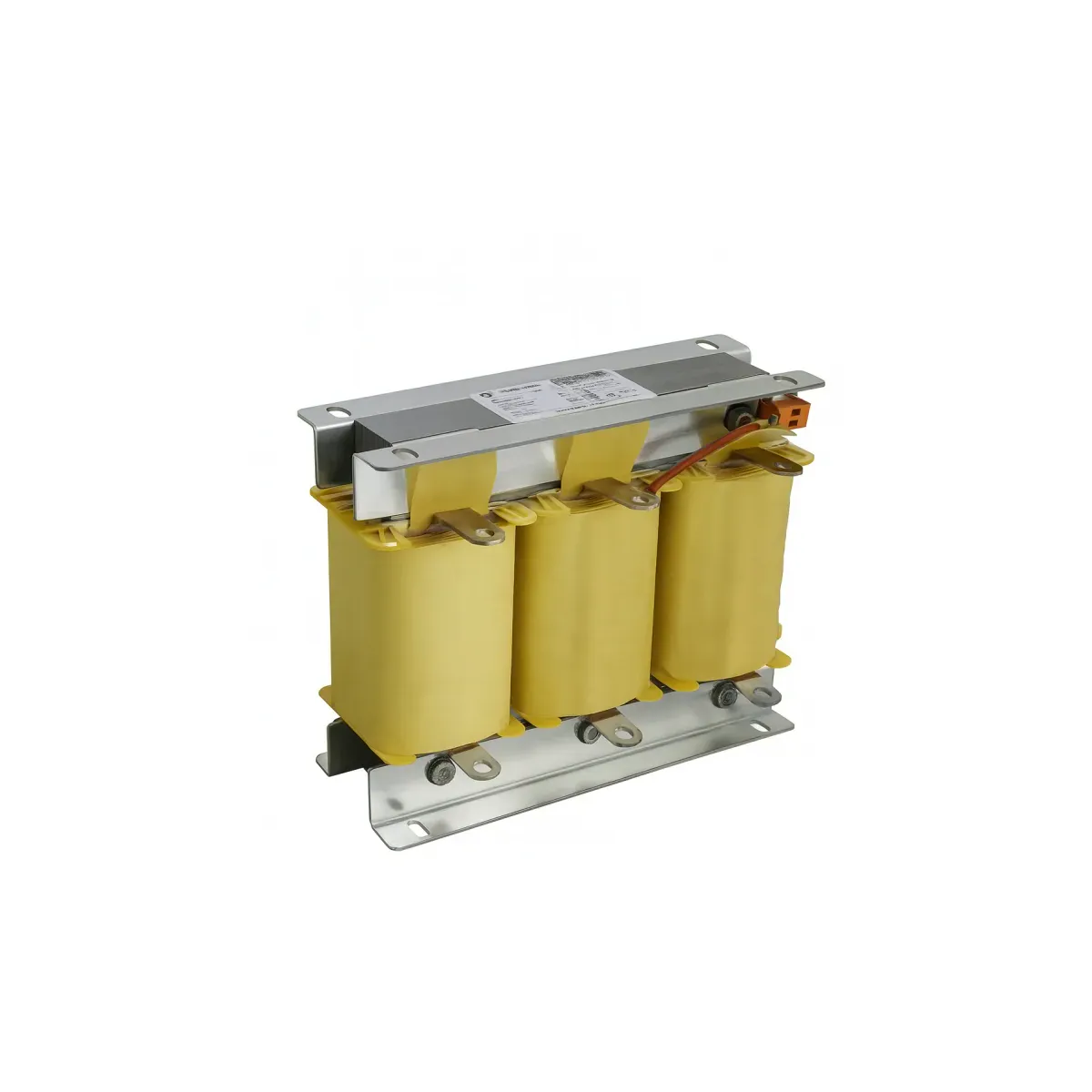

Tibcon 100 kVAr Three-Phase Harmonic Filter 7% - HRT-7340100
- Brand: Tibcon
- SKU: TBHR5234
- MPN: TBHR5234
- Price: 18439.51 TRY + VAT · incl. VAT 22127.41 TRY
- Availability: In stock
- Three-Phase Harmonic Filters
- Tibcon Three-Phase Harmonic Filters
- Selection guide: Three-Phase Harmonic Filters Selection Guide: Technical Criteria and Engineering Practice
Tibcon 100 kVAr Three-Phase Harmonic Filter 7% - HRT-7340100. Three-Phase Harmonic Filters are used in Power Factor Correction panels with drives and switching loads. Technical data: Power 100 kVAr. Stock code: TBHR5234.
| Power | 100 kVAr |
|---|---|
| Inductance | 0,38 mH |
| Current | 160 A (I rms) |
| Connection Type | Bara |
| Product Net Weight | 48 kg |
| Reactor detuning factor | p=%7 |
| Resonance Frequency | 189 Hz |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Thermal Protection | 120C (NC kontak) |
