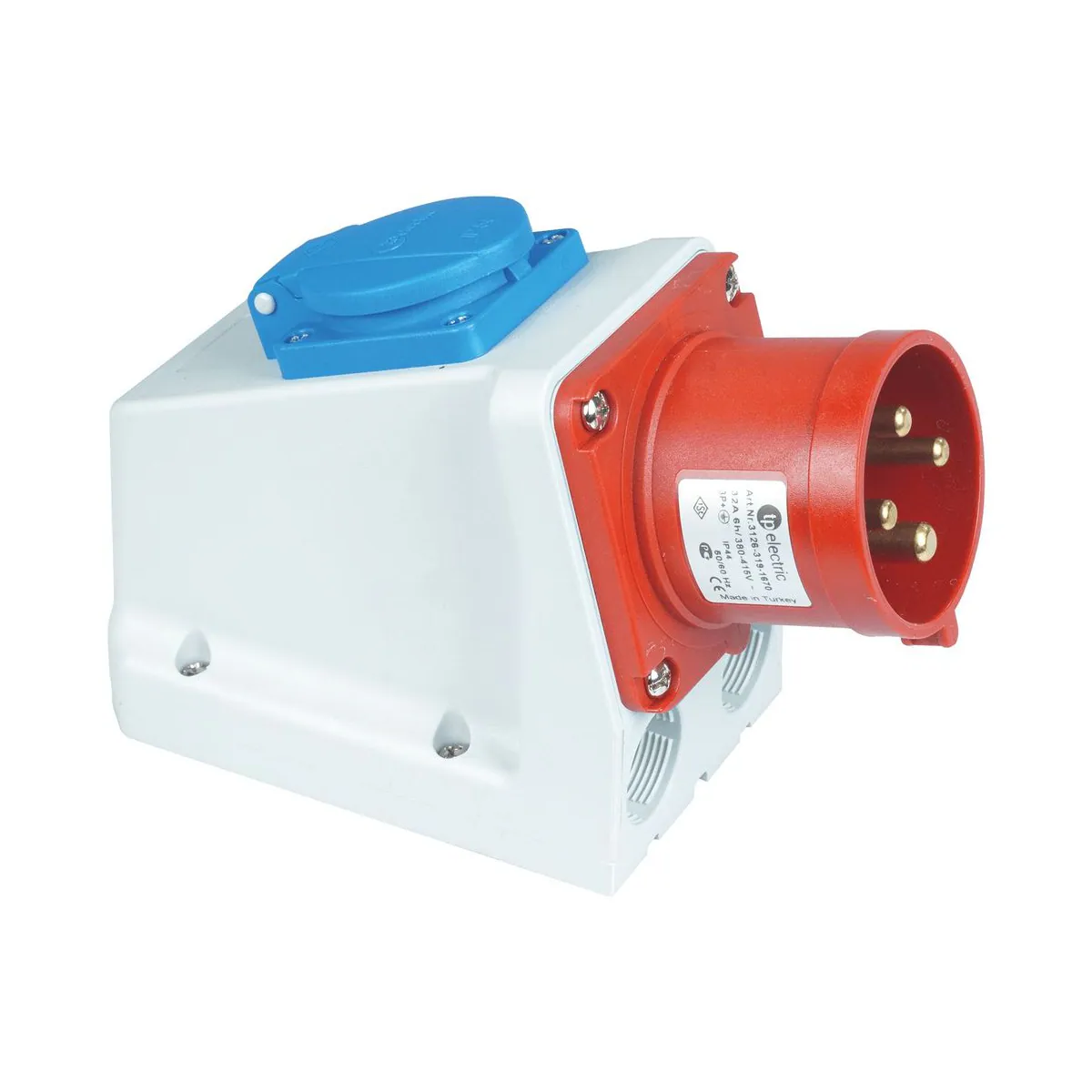

TP Elektrik 3122-650-1600 CEE 4x16A Combi Wall Plug, IP 44, 6h
- Brand: TP Elektrik
- SKU: 3122-650-1600
- MPN: 3122-650-1600
- Price: 1241.00 TRY + VAT · incl. VAT 1489.20 TRY
- Availability: In stock
- CEE Angled Wall Plugs
- TP Elektrik CEE Angled Wall Plugs
- Selection guide: CEE Angled Wall Plugs Selection Guide: Technical Criteria and Engineering Practice
TP Elektrik 3122-650-1600, CEE 4x16A combination wall-mounted plug. Electrical values: 16 A rated current, 380–415 V rated voltage, 50–60 Hz frequency. Usage information: IP 44 protection rating, screw connection, 1.5-4 mm² cable cross-section, 6h clock position. Technical specifications: Protection Rating: IP 44; Connection Type: Screw Connection; Contacts-Current: 4x16A; Rated Current: 16 A; Number of Contacts: 4; Clock Position: 6h; Rated Voltage: 380–415 V; Frequency: 50–60 Hz; Weight: 485 g; Cable Cross-Section: 1.5-4 mm².
| Poles-Ampere | 4x16A |
|---|---|
| Number of Contacts | 4 |
| Rated Current | 16 A |
| Rated Voltage | 380–415 V |
| Frequency | 50/60 Hz |
| Protection Rating | IP44 |
| Clock Position | 6h |
| Connection Type | Screw connection |
| Gram | 485 g |
| Cable Cross-Section | 1.5–4 mm² |
