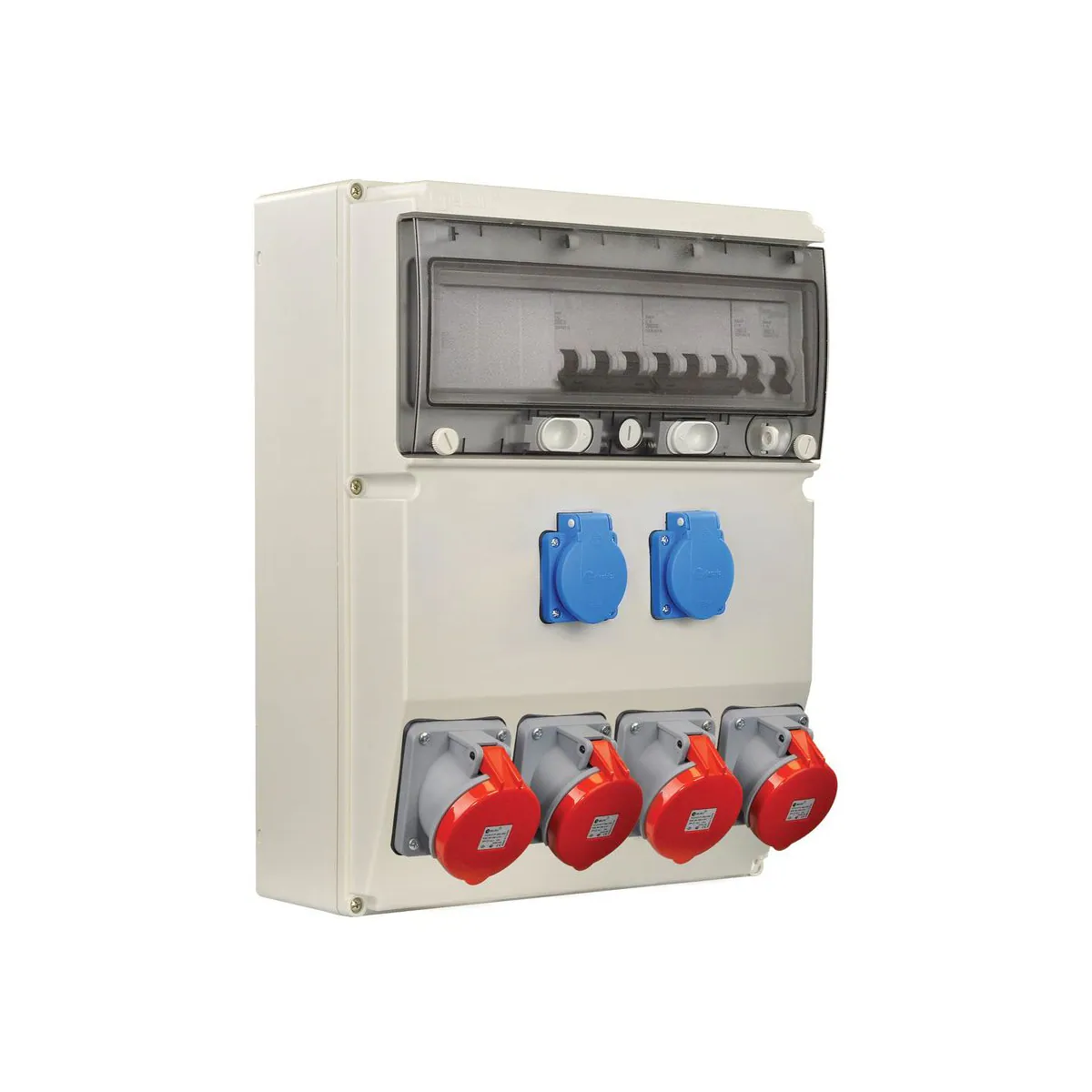

TP Elektrik 3369-002-3340 300x400 Socket-Equipped Combination Box, with 5x63A and 1x16A Sockets, Fused, Pre-Wired, IP 66
- Brand: TP Elektrik
- SKU: 3369-002-3340
- MPN: 3369-002-3340
- Availability: Made to order
- Socket-Mounted Combination Boxes
- TP Elektrik Socket-Mounted Combination Boxes
- Selection guide: Socket-Mounted Combination Boxes Selection Guide
TP Elektrik 3369-002-3340, 300x400 combination box with mounted sockets, with 5x63A and 1x16A sockets, fused, pre-wired. Usage information: IP 66 protection rating. Configuration: IP 44 Machine Socket (5x63A) front (4) + Panel Socket (1x16A) front (2) + 4xLS 63A. 3p-C/2xLS 16A. 1p-B MCB + Wired. Technical specifications: Protection Rating: IP 66; Dimensions: 300x400; Residual Current Protection: No; Fuse Protection: Yes; Number of Modules: 15; Series: CEE Standard Machine Socket + Panel Socket.
| Protection Rating | IP66 |
|---|---|
| Socket Configuration | IP44 Makine Prizi (5x63A) ön (4) + Pano Prizi (1x16A) ön (2) + 4xLS 63A. 3p-C/2xLS 16A. 1p-B Sigorta + Kablajlı |
| Dimensions | 300x400 |
| Number of Modules | 15 |
| Series | CEE Norm Makine Prizi + Pano Prizi |
| Residual Current Protection | None |
| Fuse Protection | Available |
