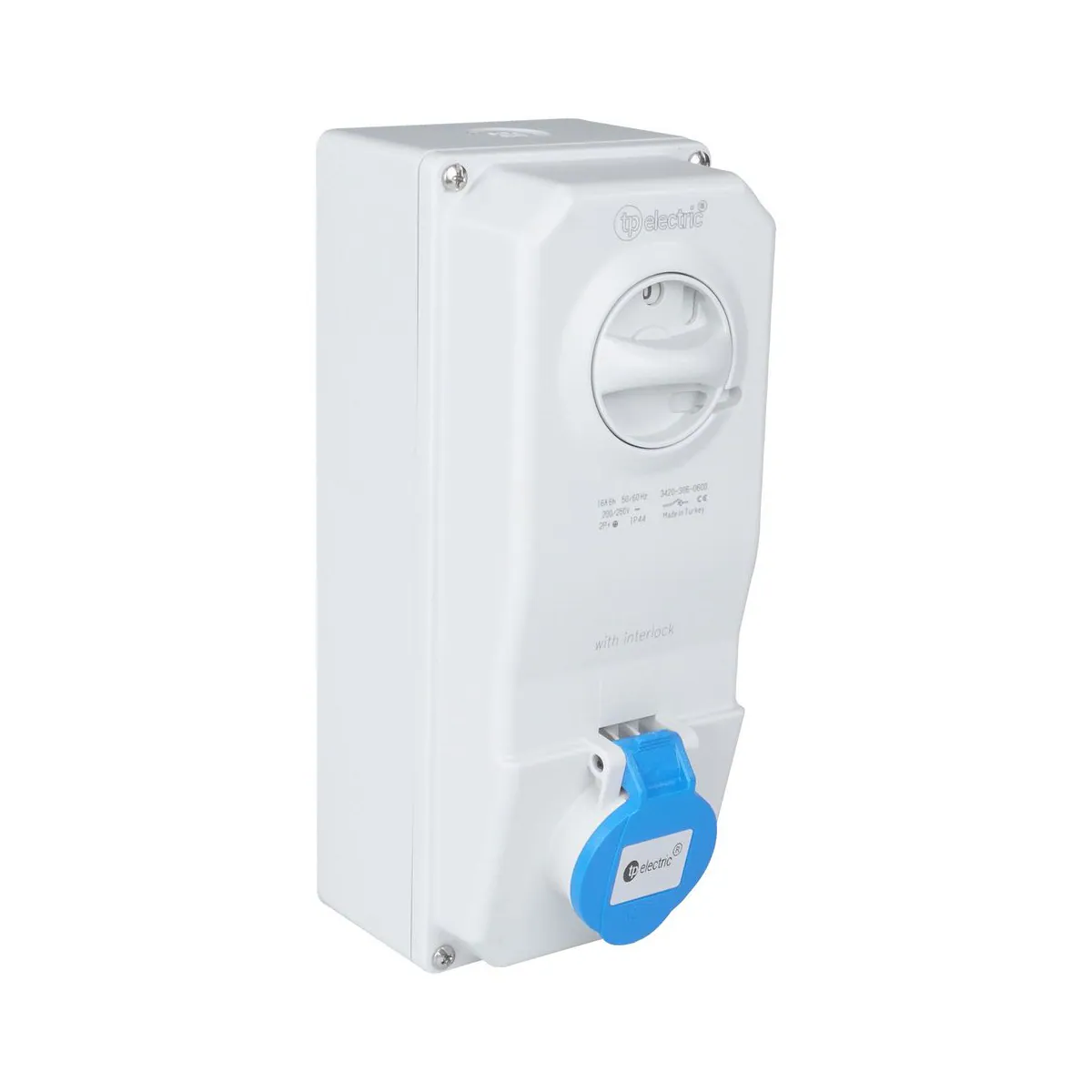

TP Elektrik 3420-306-0600 CEE 3x16A Interlocked Wall Socket, IP 44, 6h

• Brand: TP Elektrik
• SKU: 3420-306-0600
• MPN: 3420-306-0600
• Price: 4474.00 TRY + VAT · incl. VAT 5368.80 TRY
• Availability: In stock
• Switched and Interlocked CEE Sockets
• Selection guide: Switched and Interlocked CEE Sockets Selection Guide: Technical Criteria and Engineering Practice

TP Elektrik 3420-306-0600, CEE 3x16A interlocked wall socket. Electrical values: 16 A rated current, 200–250 V AC rated voltage, 50–60 Hz frequency. Usage information: IP 44 protection rating, 6h clock position. Key Features: IP 44 Protection Rating; Suitable for different earthing contact positions; Front and rear gland entries, PG16 and M25; The switch cannot be set to the 1 (ON) position or energized without the plug inserted; With the plug inserted, the switch can be set to the 1 (ON) position and energized; The plug cannot be removed while the switch is in the 1 (ON) position (while the system is energized); The plug can be removed when the switch is set to the 0 (OFF) position (when power to the system is cut); All components are mounted on the housing; Saves space thanks to its compact size; Manufactured ready-wired and suitable for connection; Complies with EN 60309 standards. Technical specifications: Protection Rating: IP 44; Contacts-Current: 3x16A; Rated Current: 16 A; Number of Contacts: 3; Clock Position: 6h; Fuse Holder: No; Product Type: Wall Type; Rated Voltage: 200–250 V AC; Frequency: 50–60 Hz; Weight: 860 g.
