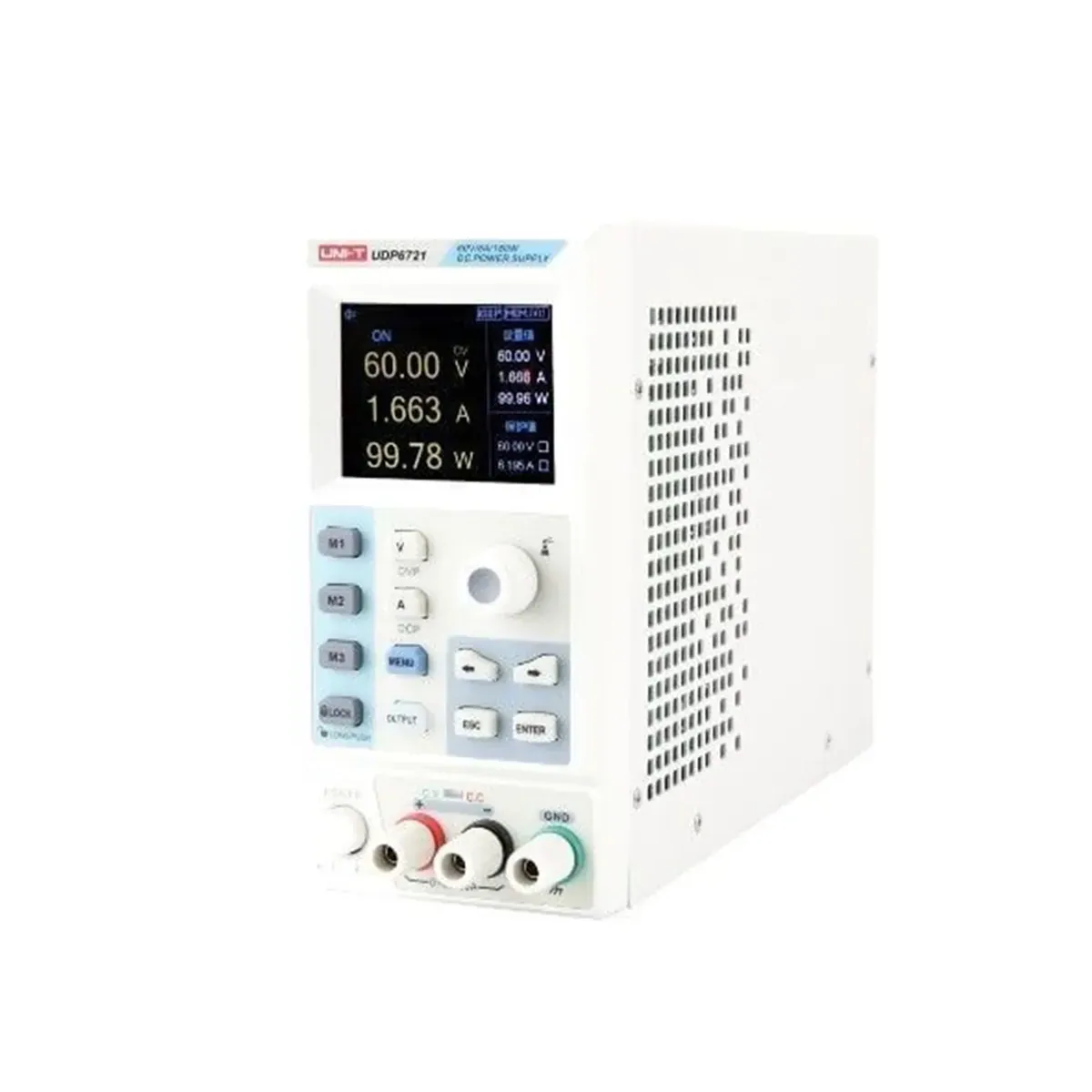

Unit UDP6721 60V 8A Programmable DC Power Supply

Unit UDP6721 60V 8A Programmable DC Power Supply

Unit UDP6721 is a single-channel programmable switching DC power supply from the UNI-T UDP6700 series. Delivers up to 180 W output in the 0–60 V and 0–8 A range; thanks to the wide output range, a single device can replace several small power supplies. Has 10 mV / 1 mA setting resolution, a 2.8 inch color LCD display and 3 × 200 preset group memory. Automatic testing is possible with the list and delay functions; the remote compensation terminal compensates for the voltage drop in the load cable. It is remotely controlled via the standard RS232 interface and SCPI protocol; overvoltage, overcurrent and overtemperature protections are included.

Number of Outputs1
Output Voltage0–60 V
Output Current0–8 A
Output Power180 W
Load RegulationGerilim < %0,01 + 5 mV; akım < %0,01 + 5 mA
Line RegulationGerilim < %0,01 + 5 mV; akım < %0,1 + 5 mA
Output RippleGerilim < 5,0 mVrms; akım < 8,0 mArms
Setting Resolution10 mV / 1 mA
Readback Resolution10 mV / 1 mA
Programming AccuracyGerilim < %0,05 + 10 mV; akım < %0,3 + 5 mA
Readback AccuracyGerilim < %0,05 + 10 mV; akım < %0,3 + 5 mA
Temperature CoefficientGerilim ≤ 100 ppm/°C; akım ≤ 200 ppm/°C
Protection FunctionsAşırı gerilim (OVP), aşırı akım (OCP) ve aşırı sıcaklık (OTP) koruması
Memory3 × 200 grup (toplam 600) gerilim/akım ön ayarı
Additional FunctionsListe ve gecikme (delayer) fonksiyonu (48 düzenlenebilir nokta), uzak kompanzasyon, sabit gerilim/sabit akım çıkışı, akıllı fan kontrolü, SCPI desteği
InterfacesRS232, uzak kompanzasyon terminali
CertificationsCE, UKCA
Operating Temperature0–45 °C
Supply Voltage110 V / 220 V AC (±%10), 50/60 Hz
Display2,8 inç renkli LCD, 4 haneli
Product Dimensions87 × 174 × 255 mm
Gram< 2,5 kg
Standard AccessoriesGüç kablosu
