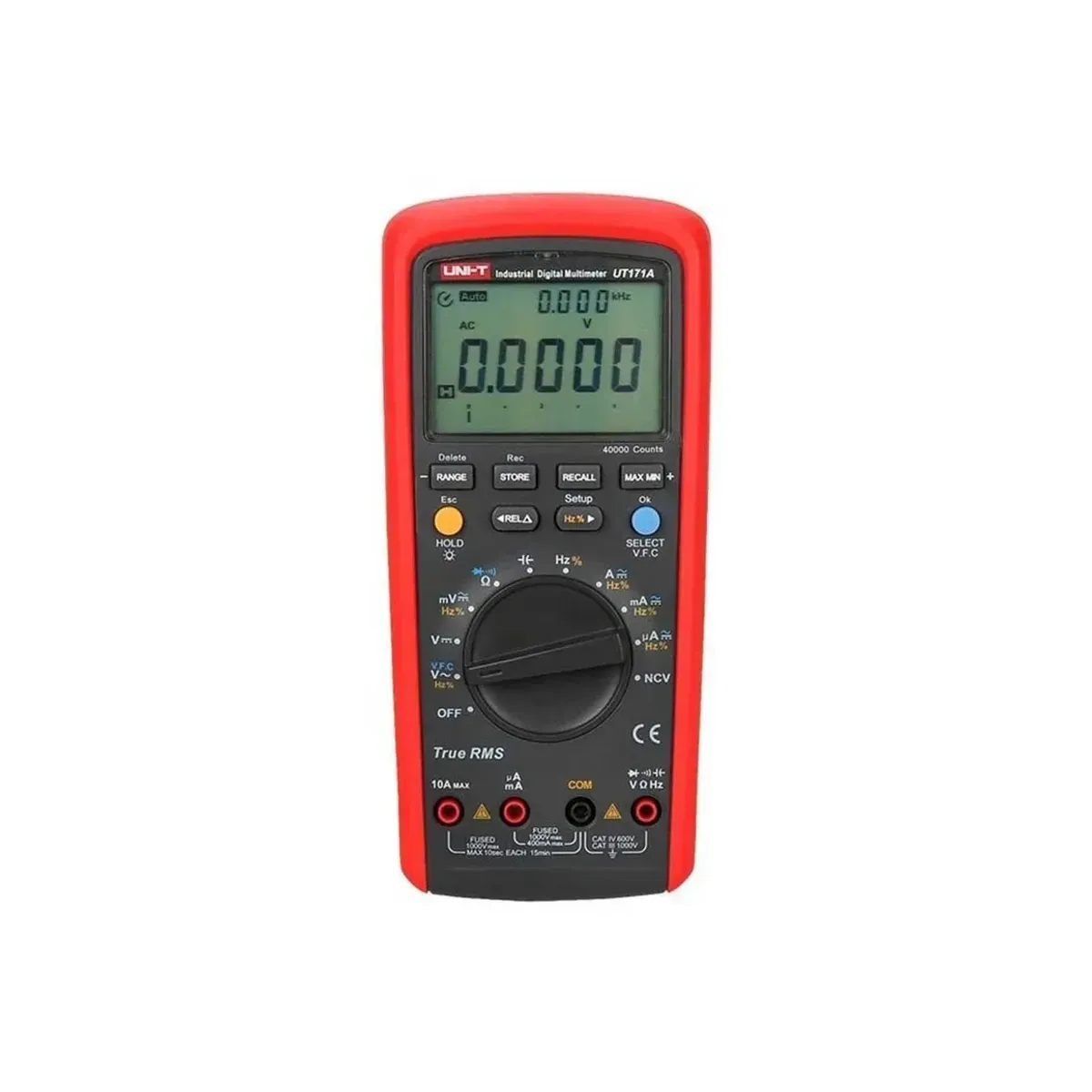

Unit UT-171A True RMS Digital Multimeter
- Brand: Unit
- SKU: UT171A
- MPN: UT171A
- Price: 8359.75 TRY + VAT · incl. VAT 10031.70 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT171A True RMS Digital Multimeter is a digital multimeter model manufactured by UNI-T. It has a 40000-count display and performs True RMS measurement. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (10 A), AC current (10 A), resistance (40 MΩ), capacitance (40 mF), frequency (10 Hz – 10 MHz). Memory: 1000 records. Other features: diode test (approx. 3 V), audible continuity test, duty cycle measurement (0.1% – 99.9%), relative (REL) measurement, backlight, wrong socket warning, low battery indicator, auto power off, input protection, NCV non-contact voltage detection, data hold, MAX, MIN. Power source: 6 × 1.5 V battery (R03). Box contents: batteries, test probes, point-contact temperature probe, USB interface cable, PC software CD.
| AC Current Measurement | 10 A · ±(%0,75+5) |
|---|---|
| AC Bandwidth | 100 kHz |
| AC Voltage Measurement | 1000 V · ±(%0,4+40) |
| Analog Bar Graph | 31 segment |
| Backlight | Available |
| Gram | 384 g |
| Relative Measurement | Available |
| DC Current Measurement | 10 A · ±(%0,15+2) |
| DCV Input Impedance | yaklaşık 1 GΩ |
| DC Voltage Measurement | 1000 V · ±(%0,025+5) |
| Resistance Measurement | 40 MΩ · ±(%0,05+2) |
| Diode Test | Yaklaşık 3 V |
| Low Battery Indication | Available |
| Additional Functions | Diyot testi (yaklaşık 3 V), sesli süreklilik testi, görev döngüsü ölçümü (%0,1 – %99,9), bağıl (REL) ölçüm, arka ışık, yanlış soket uyarısı, düşük pil göstergesi, otomatik kapanma, giriş koruması, NCV temassız gerilim algılama, veri tutma, MAX, MIN |
| Display | LCD |
| Display Size | 70,6 mm × 49,5 mm |
| Display Count | 40000 |
| Frequency Measurement | 10 Hz – 10 MHz · ±(%0,01+5) |
| Input Protection | Available |
| Duty Cycle Measurement | 0.1%~99.9% |
| Power Source | 6 × 1,5 V pil (R03) |
| Memory | 1000 kayıt |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 40 mF · ±(%2,5+40) |
| NCV/Data Hold/MIN/MAX | Available |
| Auto Power Off | Available |
| Standard Accessories | Piller, test probları, nokta temaslı sıcaklık probu, USB arayüz kablosu, PC yazılım CD'si |
| Continuity Test | Available |
| True RMS | Available |
| Incorrect Input Warning | Available |
| Product Dimensions | 206 mm × 95 mm × 55 mm |
