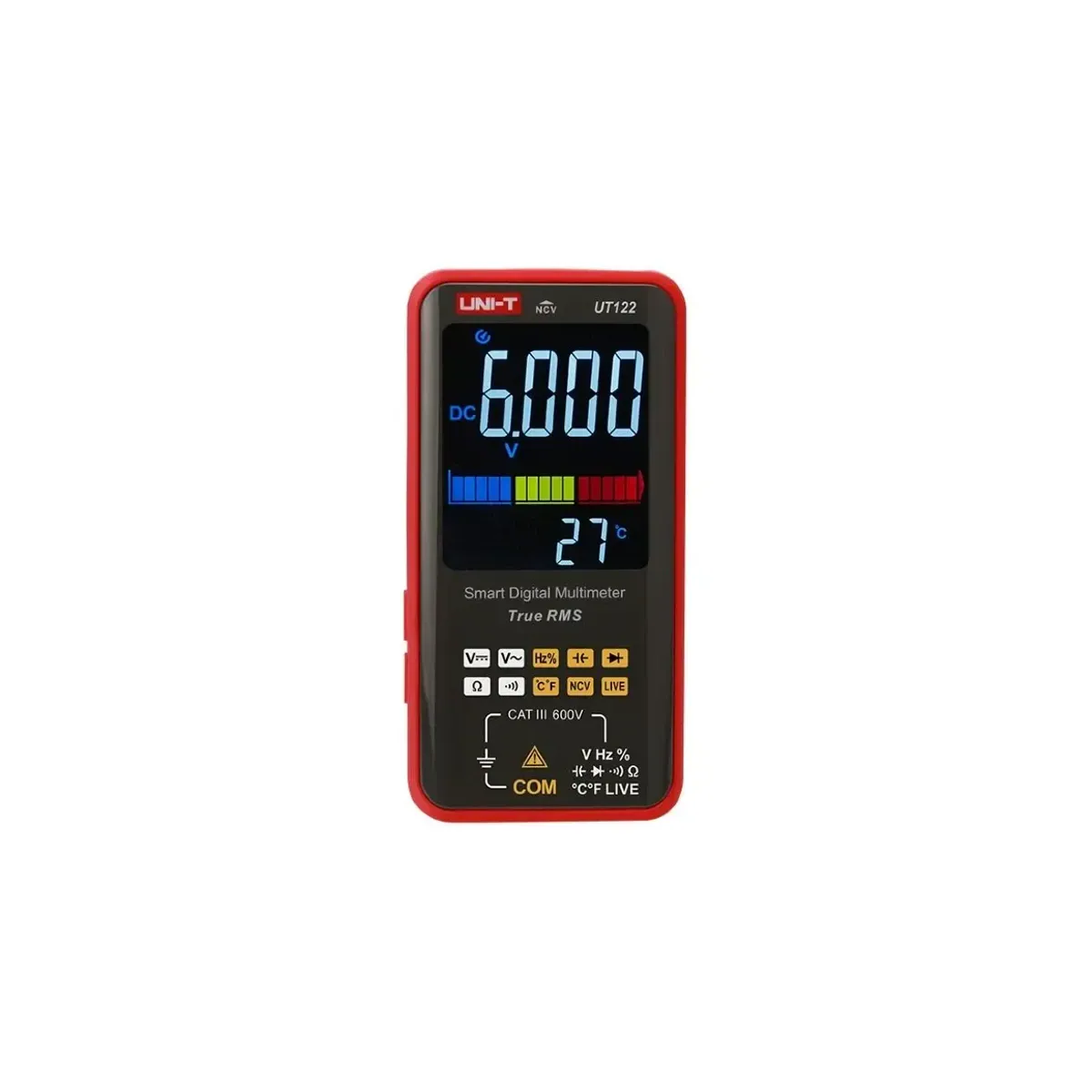

Unit UT122 Smart Digital Multimeter
- Brand: Unit
- SKU: UT122
- MPN: UT122
- Price: 1370.45 TRY + VAT · incl. VAT 1644.54 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT122 Smart Digital Multimeter, a digital multimeter model of the UNI-T UT121 series. It has a 6199-count display. Measurement functions: DC voltage (600.0 V), AC voltage (600.0 V), resistance (60.00 MΩ), capacitance (99.99 nF / 999.9 nF – 9.999 µF / 9.999 mF – 99.99 mF), frequency (10.00 Hz-10.00 MHz), temperature (−40 °C – 1000 °C / −40 °F – 1832 °F), voltage frequency (10 Hz-1 kHz). Other features: dual display, NCV non-contact voltage detection, live wire detection, diode test, audible continuity test, high voltage warning on display, flashlight, low battery indicator, auto power off, data hold. Safety category CAT III 600 V. Power source: 2 × 1.5 V AAA battery. Box contents: batteries, test probes, temperature probe, English user manual.
| AC Voltage Frequency Measurement | 10 Hz-1 kHz · ±(%0,5+2) |
|---|---|
| AC Voltage Measurement | 6,000 V / 60,00 V / 600,0 V · ±(%1,0+3) |
| Gram | 157 g |
| DC Voltage Measurement | 6,000 V / 60,00 V / 600,0 V · ±(%0,5+3) |
| Resistance Measurement | 600,0 Ω / 6,000 kΩ / 60,00 kΩ / 600,0 kΩ / 6,000 MΩ / 60,00 MΩ · ±(%2,0+5) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | Çift ekran, NCV temassız gerilim algılama, faz hattı tespiti, diyot testi, sesli süreklilik testi, ekranda yüksek gerilim uyarısı, el feneri, düşük pil göstergesi, otomatik kapanma, veri tutma |
| Display Size | 65 × 55 mm |
| Display Count | 6199 |
| Flashlight | Available |
| Phase Detection | Available |
| Frequency Measurement | 10,00 Hz-10,00 MHz · ±(%0,1+3) |
| Safety Category | CAT III 600 V |
| Power Source | 2 × 1,5 V AAA pil |
| Range Selection | Otomatik |
| Capacitance Measurement | 99,99 nF / 999,9 nF – 9,999 µF / 9,999 mF – 99,99 mF · %10 |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Available |
| Standard Accessories | Piller, test probları, sıcaklık probu, İngilizce kullanım kılavuzu |
| Continuity Test | Available |
| Temperature Measurement | −40 °C – 1000 °C / −40 °F – 1832 °F · ±3 °C / ±6 °F |
| Data Hold | Available |
| High Voltage Alarm | Available |
| Dual Display | Available |
| Product Dimensions | 144 × 71 × 15,5 mm |
