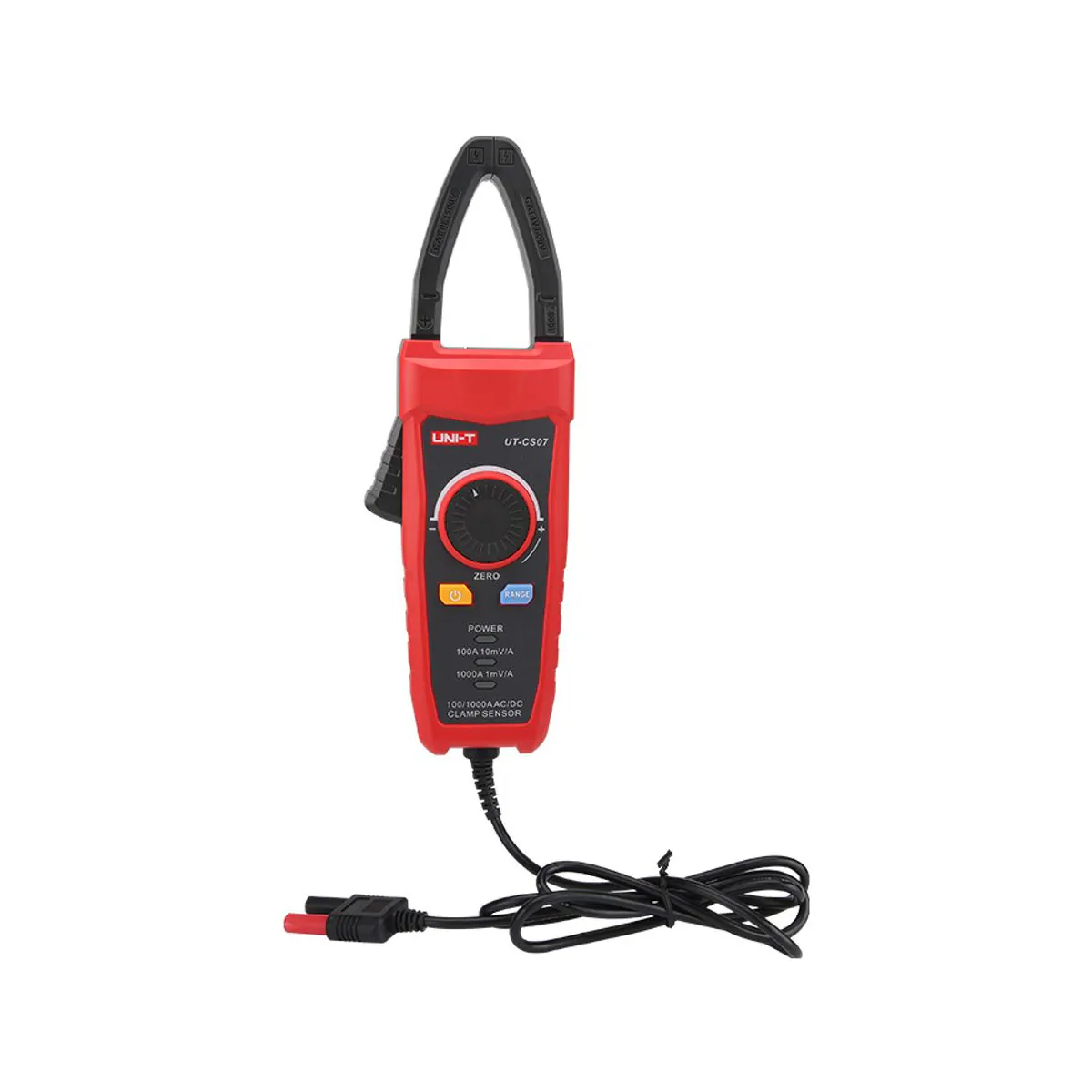

Unit UT-CS07 1000A AC/DC Clamp Sensor 35 mm Jaw 10 mV/A – 1 mV/A
- Brand: Unit
- SKU: UT-CS07
- MPN: UT-CS07
- Price: 3426.13 TRY + VAT · incl. VAT 4111.36 TRY
- Availability: Made to order
- Measuring Instrument Accessories
- Selection guide: Measuring Instrument Accessories Selection Guide: Technical Criteria & Application Standards
Unit UT-CS07 is a 1000 A clamp sensor that measures AC/DC current when connected to the voltage input of a multimeter or data logger. The jaw fits a 35 mm conductor or a 65 × 8 mm busbar. The output ratio is 10 mV/A on the 100 A range and 1 mV/A on the 1000 A range; AC accuracy is ±(1.5%+0.5 A) at 100 A and ±(2.0%+0.5 A) at 1000 A. DC accuracy at 100 A is ±(1.5%+0.5 A) at 45–200 Hz and ±(2.0%+0.5 A) at 200–400 Hz; at 1000 A it is ±(2.0%+0.5 A) at 45–200 Hz and ±(2.5%+0.5 A) at 200–400 Hz. The sensor runs on 2 AA batteries (3 V), draws <50 mA and has a low battery indication. The safety category is CAT III 1500 V / CAT IV 600 V and the drop test height is 1 m. It has a zero function and AC/DC 1000 A input protection. The cable is 1.1 m long; the sensor is compatible with multimeters such as the UT117C, UT196, UT139C, UT197 and UT197PV.
| AC Current Measurement | 100 A (10 mV/A): ±(%1.5+0.5 A); 1000 A (1 mV/A): ±(%2.0+0.5 A) |
|---|---|
| Waveform Display | Osiloskop ile uyumlu |
| Accuracy | Bağlı multimetreye göre değişir |
| Drop Resistance | 1 m |
| Frequency Measurement | AC akım frekansı: 50 Hz – 400 Hz |
| Safety Category | CAT III 1500 V / CAT IV 600 V |
| Power Source | 2 × AA = 3 V; çalışma akımı <50 mA |
| Cable Length | 1.1 m |
| Response Time | Bağlı multimetreye göre değişir |
| True RMS | Bağlı multimetreye göre değişir |
| Jaw Opening | 35 mm iletken veya 65 × 8 mm bara |
| Output Ratio | 10 mV/A (100 A) ve 1 mV/A (1000 A) |
| Product Dimensions | 276 × 86 × 50 mm |
| DC Current Measurement | 100 A (10 mV/A): ±(%1.5+0.5 A) 45–200 Hz, ±(%2.0+0.5 A) 200–400 Hz; 1000 A (1 mV/A): ±(%2.0+0.5 A) 45–200 Hz, ±(%2.5+0.5 A) 200–400 Hz |
| Frequency Response | 45 Hz – 400 Hz |
| Low Battery Indication | Available |
| Pollution Degree | 2 |
| Operating Environment | 0°C – 30°C (<%75 RH); 30°C – 40°C (<%50 RH) |
| Storage Environment | -10°C – 50°C (<%80 RH) |
| Certifications | CE, cETLus, RoHS |
| Functions | Sıfırlama (zero) fonksiyonu; AC/DC 1000 A giriş koruması |
| Compatible Models | UT117C, UT196, UT139C, UT197, UT197PV ve benzeri multimetreler |
