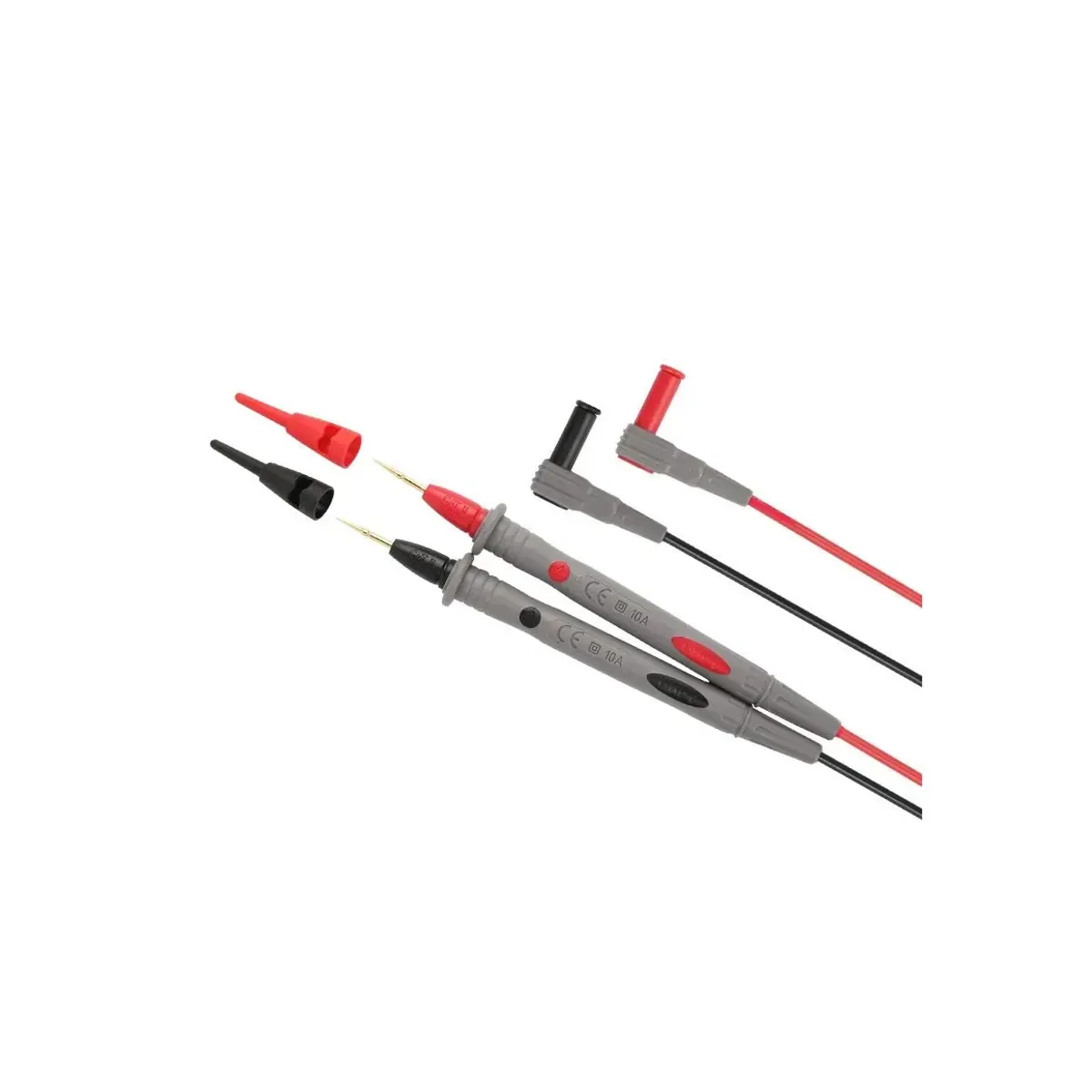

Unit UT-L90 Extra-Fine Test Probe
- Brand: Unit
- SKU: UT-L90
- MPN: UT-L90
- Price: 456.82 TRY + VAT · incl. VAT 548.18 TRY
- Availability: Made to order
- Measuring Instrument Accessories
- Selection guide: Measuring Instrument Accessories Selection Guide: Technical Criteria & Application Standards
The UNI-T UT-L90 is a fine-pointed test probe designed for measuring small electronic components and integrated circuit (IC) pins. A gold-plated end and a removable protective sleeve are the main features of the probe. The 1200 mm cable length provides room to move between the measuring instrument and the work point. The probe shaft is 130 mm long and the end section is 17.5 mm long. The rated current is specified as 10 A and the safety category as CAT II 1000 V. When selecting a test probe, check your device's connection compatibility, the current of the measurement to be made and the required safety category. The CAT II rating of the probe does not mean it is suitable for an application that requires CAT III or CAT IV. You can check current stock and order status on the product card.
| Cable Length | 1200 mm |
|---|---|
| Rod Length | 130 mm |
| Tip Length | 17.5 mm |
| Rated Current | 10 A |
| Features | altın kaplama, ince uçlu test probu, çıkarılabilir koruyucu kılıf |
| Safety Category | CAT II 1000 V |
