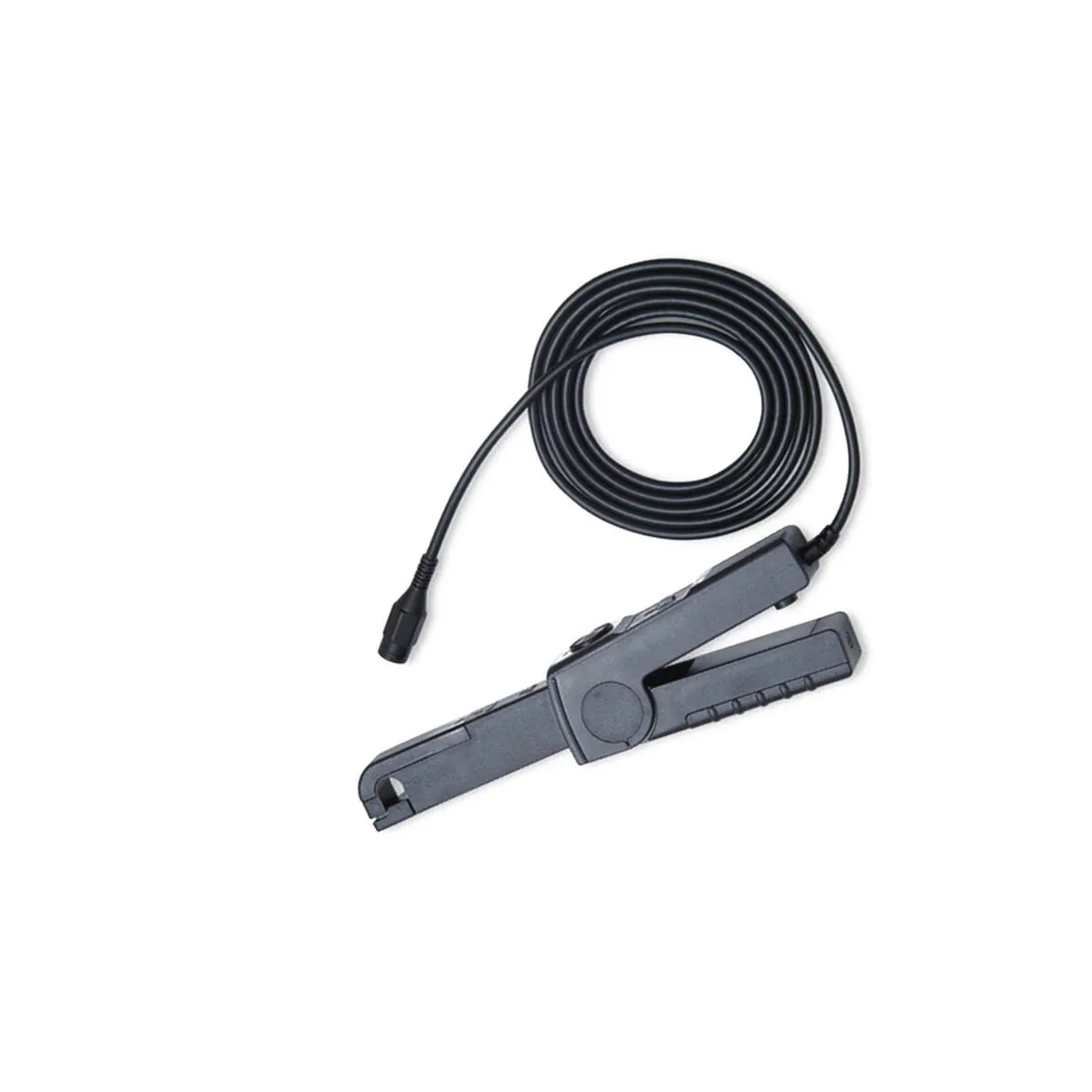

Unit UT-P42 is a clamp-type current probe with a maximum working current of 200 A that lets a general-purpose oscilloscope display AC and DC current signals. The output ratios are 50 mV/A and 5 mV/A, the current range is 0.4–200 A, the frequency range is DC – 150 kHz (-3 dB) and the working voltage is 600 V. Typical DC accuracy is ±2% ±0.4 A on the 50 mV/A range (0.4–10 A peak) and ±2% ±1 A on the 5 mV/A range (1–200 A peak). Typical rise time is 2.3 µs and maximum noise is 2 mV peak-to-peak. The probe runs on a 9 V battery and accepts conductors up to 10.3 mm. The cable length is 200 cm, the dimensions are 231 × 67 × 36 mm and the weight is 310 g without the battery. The probe must not be clamped onto circuits above 600 V AC.

Output Ratio50 mV/A ve 5 mV/A
Current Range0.4–200 A
Frequency RangeDC – 150 kHz (-3 dB)
Noise Level2 mV tepe-tepe (azami)
Maximum Operating Voltage600 V V
Battery Type9 V pil
Cable Length200 cm
ConnectorBNC
Product Dimensions231 × 67 × 36 mm
Gram310 g (pil hariç)
Operating Temperature0°C – 50°C
Operating Humidity0–40°C: %95 RH; 40–50°C: %45 RH
Maximum Current200 A
AccuracyTipik DC: 50 mV/A kademesinde ±2% ±0.4 A (0.4–10 A tepe); 5 mV/A kademesinde ±2% ±1 A (1–200 A tepe)
Rise Time2.3 µs (tipik)
Jaw Opening10.3 mm (maksimum iletken çapı)
Storage Temperature-20°C – 80°C
Pollution Degree2
