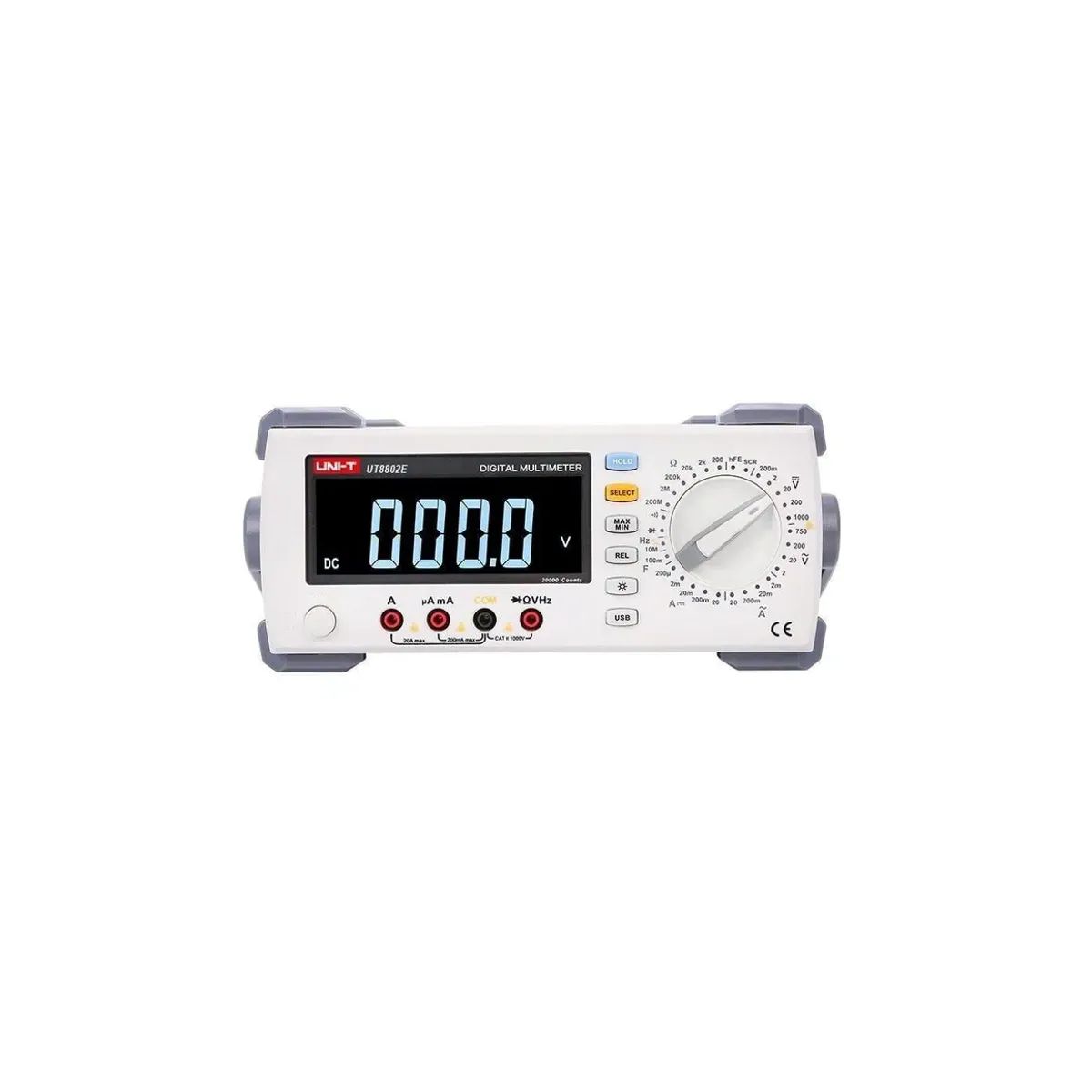

Unit UT8802E Benchtop Digital Multimeter
- Brand: Unit
- SKU: UT8802E
- MPN: UT8802E
- Price: 8725.20 TRY + VAT · incl. VAT 10470.24 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT8802E is a benchtop digital multimeter with 19,999 counts (4½ digits) and manual ranging, manufactured by UNI-T. Measures 1000 V DC and 750 V AC voltage, AC/DC current up to 20 A, 200 MΩ resistance, capacitance, frequency up to 10 MHz and duty cycle. In addition to diode and continuity testing, it can perform transistor hFE and thyristor (SCR) testing with the UT-S03A accessory. Its large backlit LCD display has maximum/minimum and relative measurement functions; measurements can be monitored in computer software via the USB connection. Operates at different mains voltages; CE and cETLus certified.
| Display Count | 19.999 (4½ hane) |
|---|---|
| True RMS | Yok (ortalama yanıtlı, sinüs RMS göstergesi) |
| Range Selection | Manuel |
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,1+3) – ±(%0,2+5) |
| AC Voltage Measurement | 2 V / 20 V / 200 V / 750 V · ±(%0,5+20) – ±(%0,8+40) (40 Hz – 1 kHz) |
| DC Current Measurement | 200 µA / 2 mA / 20 mA / 200 mA · ±(%0,5+20); 20 A · ±(%1,5+40) |
| AC Current Measurement | 2 mA / 20 mA / 200 mA · ±(%0,8+40); 20 A · ±(%2+40) (45–400 Hz) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ · ±(%0,5+10); 200 MΩ yalnız referans |
| Capacitance Measurement | 20 nF · ±(%2,5+10); 200 nF – 2 mF · ±(%1,5+10); 20 mF · ±(%10+10); 100 mF yalnız referans |
| Frequency Measurement | 200 Hz / 2 kHz / 20 kHz / 200 kHz / 2 MHz / 10 MHz · ±(%1+5) |
| Duty Cycle Measurement | %5 – %99 (10 Hz – 10 kHz) · ±(%1,5+2) |
| Diode Test | Available |
| Continuity Test | Sesli (≤ 50 Ω iletken kabul edilir) |
| DCV Input Impedance | 10 MΩ |
| Measurement Rate | Saniyede 2–3 okuma |
| Additional Functions | Transistör hFE, tristör (SCR) testi (UT-S03A aparatıyla), maksimum/minimum, bağıl (REL) ölçüm, arka aydınlatmalı LCD, bilgisayar yazılımıyla uzaktan izleme |
| Interfaces | USB Device |
| Certifications | CE, cETLus |
| Operating Temperature | 0–40 °C |
| Power Source | AC 100 / 120 / 127 / 220 / 230 / 240 V, 50–60 Hz, en fazla 28 VA |
| Product Dimensions | 320 × 265 × 110 mm |
| Gram | Yaklaşık 3,1 kg (aksesuarsız) |
| Standard Accessories | UT-L41 timsah klipsli kısa test kablosu, çift yalıtımlı test kabloları (CAT III 1000 V / CAT IV 600 V, 10 A), UT-S03A transistör/tristör test aparatı, güç kablosu, USB kablosu |
