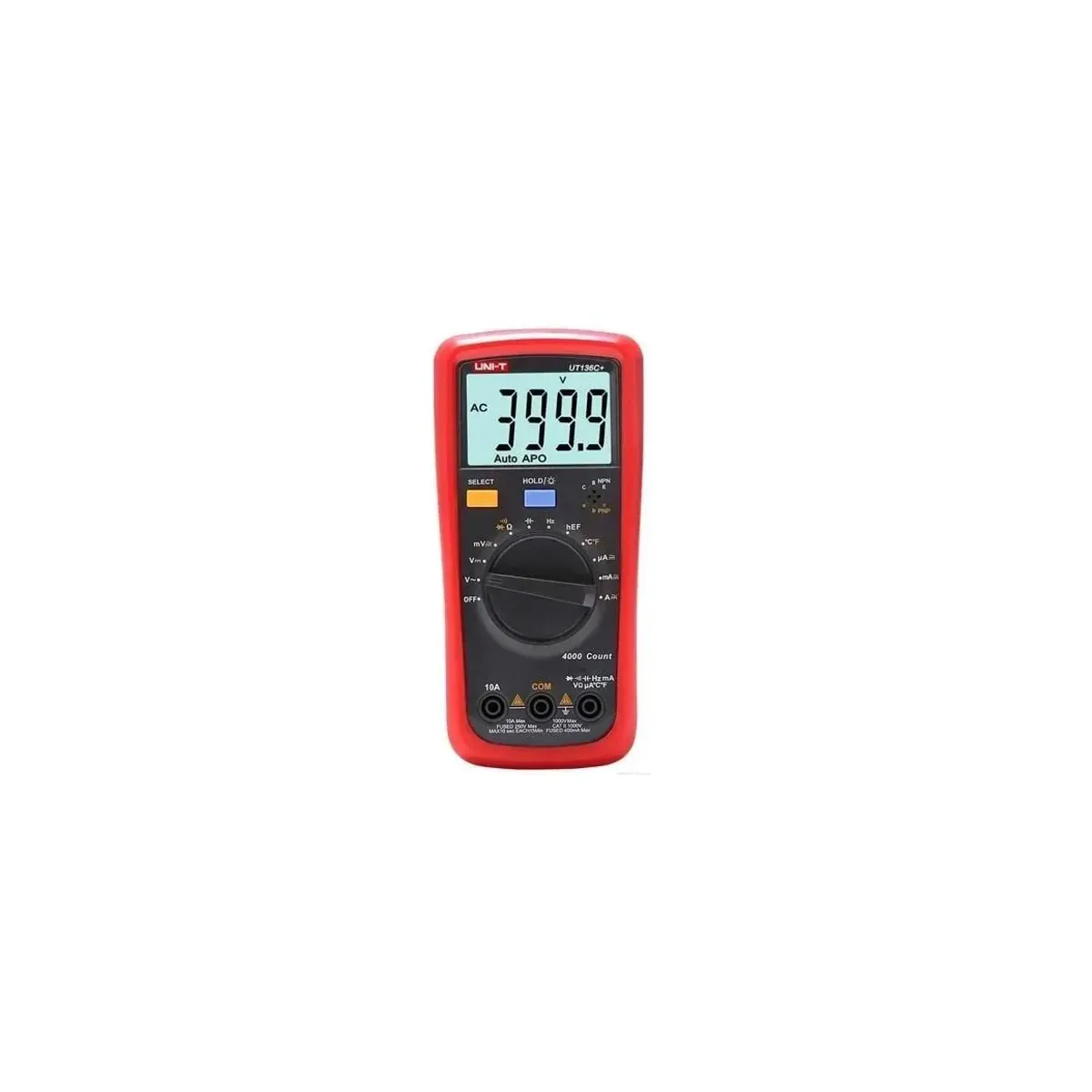

Unit UT136C+ Digital Multimeter
- Brand: Unit
- SKU: UT136C+
- MPN: UT136C+
- Price: 1279.09 TRY + VAT · incl. VAT 1534.91 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT136C+ Digital Multimeter is a digital multimeter model from the UNI-T UT136+ series. It has a 4000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (10 A), AC current (10 A), resistance (40 MΩ), capacitance (40 mF), frequency (400 Hz – 40mHz), temperature (−40 – 1000 °C). Other features: transistor (hFE) test, audible continuity test, low battery indicator, backlight, diode test, transistor test, data hold, auto power off. Safety category CAT II 1000 V, CAT III 600 V. Power source: 2 × 1.5 V battery (R6). Box contents: batteries, test probes, temperature probe.
| AC Current Measurement | 10 A · ±(%1,2+5) |
|---|---|
| AC Voltage Measurement | 1000 V · ±(%1+3) |
| Backlight | Available |
| Gram | 330 g |
| DC Current Measurement | 10 A · ±(%1+3) |
| DC Voltage Measurement | 1000 V · ±(%0,7+3) |
| Resistance Measurement | 40 MΩ · ±(%0,8+2) |
| Diode and Transistor Test | Available |
| Drop Resistance | 2 m |
| Low Battery Indication | Available |
| Additional Functions | Transistör (hFE) testi, sesli süreklilik testi, düşük pil göstergesi, arka ışık, diyot testi, transistör testi, veri tutma, otomatik kapanma |
| Display Size | 56,5 mm × 36 mm |
| Display Count | 4000 |
| Frequency Measurement | 400 Hz – 40mHz · ±(%0,1+4) |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Power Source | 2 × 1,5 V pil (R6) |
| Capacitance Measurement | 40 mF · ±(%3+5) |
| Standard Accessories | Piller, test probları, sıcaklık probu |
| Continuity Test | Available |
| Temperature Measurement | −40 – 1000 °C · ±(%1+4) |
| Transistor hFE Measurement | Transistör ölçümü |
| Data Hold and Auto Power Off | Available |
| Product Dimensions | 175 mm × 83 mm × 53 mm |
