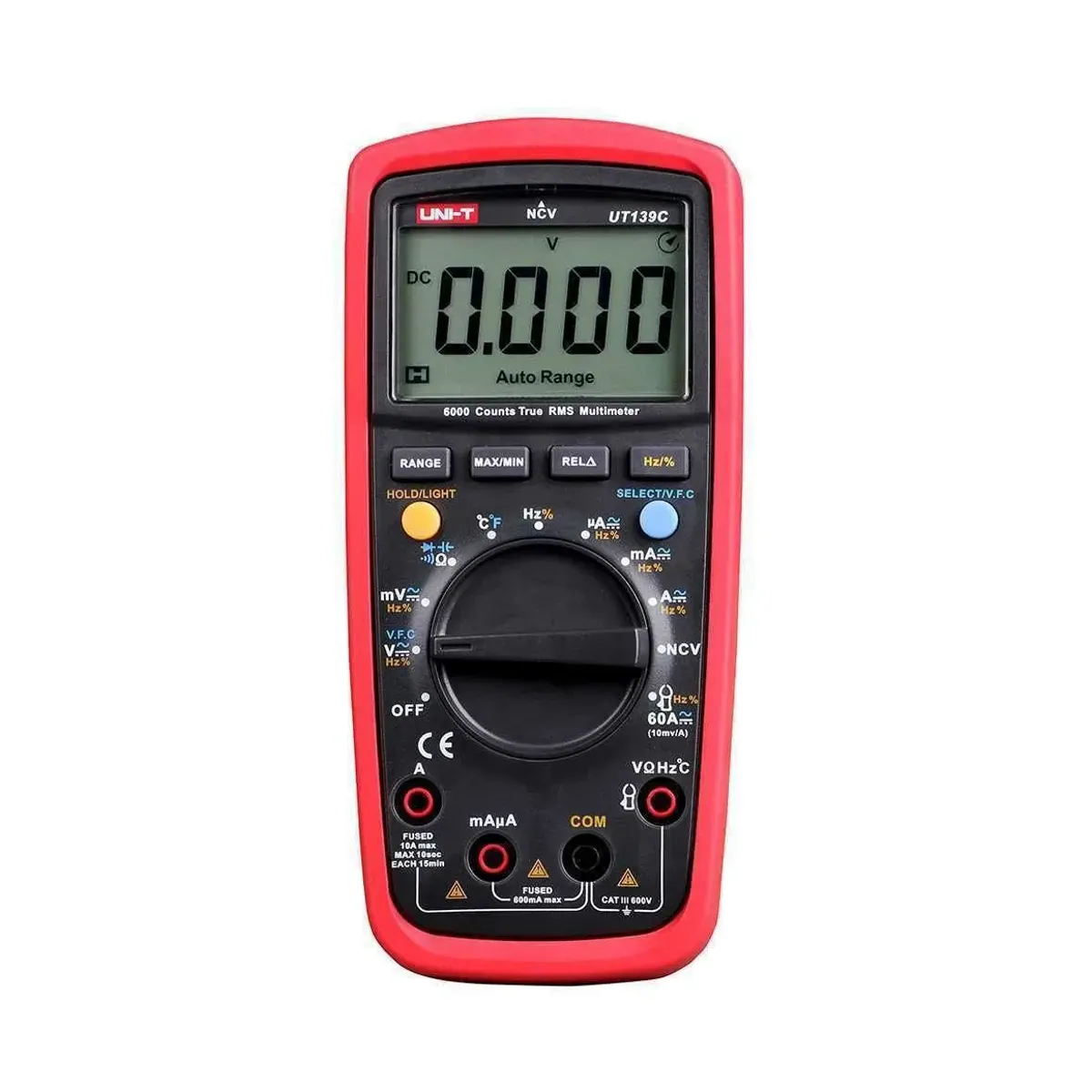

Unit UT139C True RMS Digital Multimeter
- Brand: Unit
- SKU: UT139C
- MPN: UT139C
- Price: 2535.33 TRY + VAT · incl. VAT 3042.40 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT139C is a True RMS digital multimeter in the CAT III 600 V class, designed for electricians. With its 6000-count display it measures 600 V AC/DC voltage, 10 A AC/DC current, 60 MΩ resistance, 99.99 mF capacitance, frequency up to 10 MHz and −40…1000 °C temperature. Offers automatic and manual range selection, 45 Hz–1 kHz bandwidth in AC measurement, duty cycle (0.1%–99.9), diode and audible continuity test. The NCV function measures the electromagnetic field strength to show, without contact, whether the line is energized. Runs on two 1.5 V (R6) batteries; the batteries, test probes and temperature probe are supplied in the box.
| AC Current Measurement | 10 A · ±(%1+3) |
|---|---|
| AC Bandwidth | 45 Hz – 1 kHz |
| AC Voltage Measurement | 600 V · ±(%0,8+3) |
| Gram | 354 g |
| DC Current Measurement | 10 A · ±(%0,7+2) |
| DC Voltage Measurement | 600 V · ±(%0,5+2) |
| Resistance Measurement | 60 MΩ · ±(%0,8+2) |
| Diode Test | Yaklaşık 3 V |
| Additional Functions | NCV, görev döngüsü %0,1–99,9, diyot testi, sesli süreklilik |
| Display Size | 58 × 36 mm |
| Display Count | 6000 |
| Frequency Measurement | 10 Hz – 10 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | 0.1%~99.9% |
| Safety Category | CAT III 600 V |
| Power Source | 2 × 1,5 V pil (R6) |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 99,99 mF · ±(%4+5) |
| NCV and Audible Continuity | Available |
| Auto/Manual Range and True RMS | Available |
| Standard Accessories | Piller, test probları, sıcaklık probu |
| Temperature Measurement | −40…1000 °C · ±(%1+3) |
| True RMS | Available |
| Product Dimensions | 170 × 80 × 48 mm |
