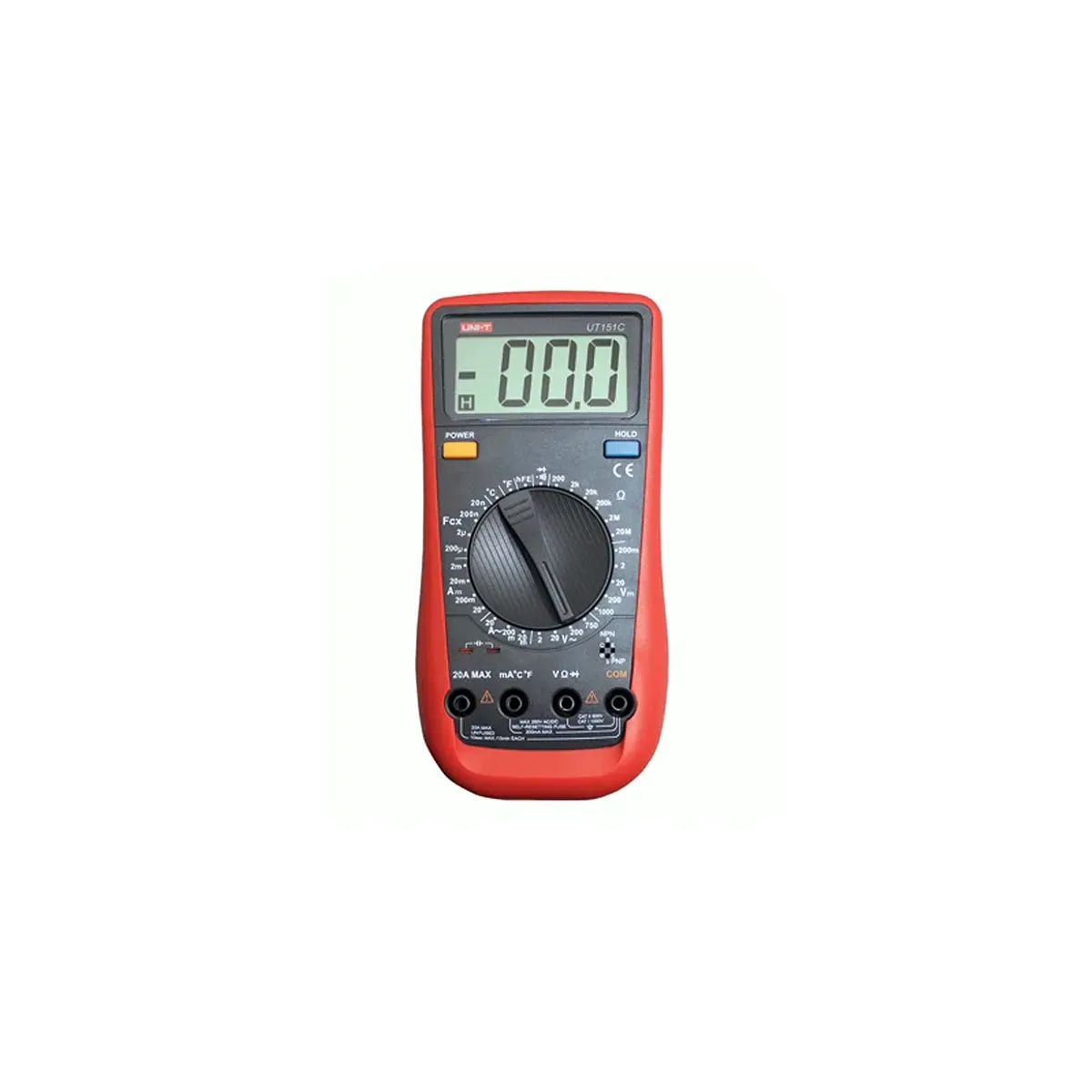

Unit UT151C Digital Multimeter Measuring Instrument
- Brand: Unit
- SKU: UT151C
- MPN: UT151C
- Price: 1576.02 TRY + VAT · incl. VAT 1891.22 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT151C Digital Multimeter Measuring Instrument is a digital multimeter model from the UNI-T UT151 series. It has a 2000-count display. Measurement functions: DC voltage (600 V), AC voltage (600 V), DC current (10 A), AC current (10 A), resistance (20 MΩ), capacitance (100 µF), temperature (−40 °C – 1000 °C). Other features: diode test, auto power off, audible continuity test, low battery indicator, data hold. Power source: 9 V battery (6F22). Box contents: battery, test probes.
| AC Current Measurement | 20 mA / 200 mA / 10 A · ±(%1+3) |
|---|---|
| AC Voltage Measurement | 2 V / 20 V / 200 V / 600 V · ±(%0,8+3) |
| Gram | 300 g |
| DC Current Measurement | 2 mA / 20 mA / 200 mA / 10 A · ±(%0,8+1) |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 600 V · ±(%0,5+1) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ · ±(%1+2) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | Diyot testi, otomatik kapanma, sesli süreklilik testi, düşük pil göstergesi, veri tutma |
| Display Size | 63 mm × 29 mm |
| Display Count | 2000 |
| Power Source | 9 V pil (6F22) |
| Range Selection | Manuel |
| Capacitance Measurement | 2 nF / 20 nF / 200 nF / 2 µF / 100 µF · ±(%4+3) |
| Auto Power Off | Available |
| Standard Accessories | Pil, test probları |
| Continuity Test | Available |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+5) |
| Data Hold | Available |
| Product Dimensions | 186 mm × 91 mm × 39 mm |
