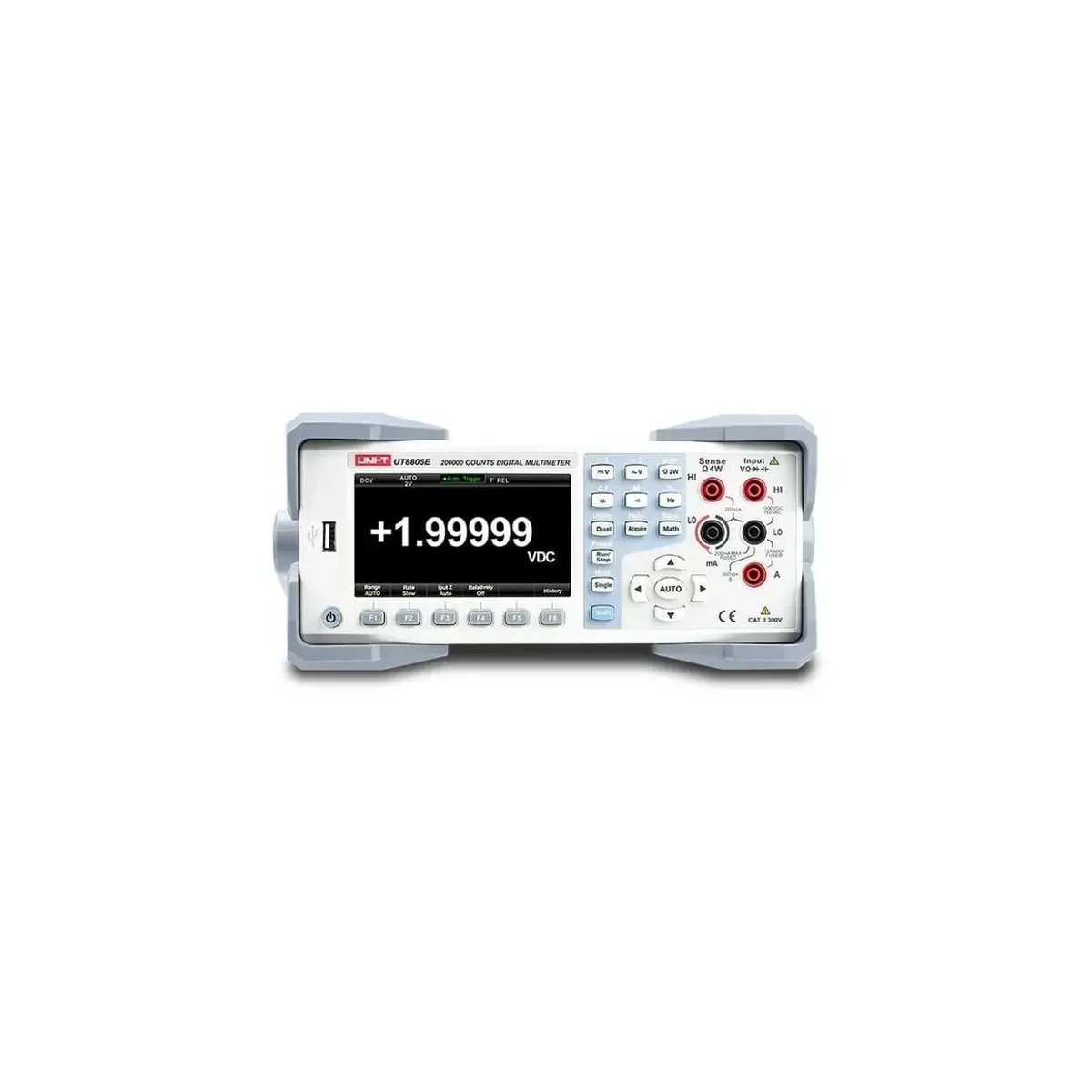

Unit UT8805E Benchtop Digital Multimeter
- Brand: Unit
- SKU: UT8805E
- MPN: UT8805E
- Price: 33576.04 TRY + VAT · incl. VAT 40291.25 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT8805E is a benchtop digital multimeter with 200,000 counts, manufactured by UNI-T. True RMS AC voltage and current meter; measures 1000 V DC, 750 V AC, 10 A current, 100 MΩ resistance (2 or 4-wire), 2 mF capacitance, 1 MHz frequency and RTD/thermocouple temperature. It has a measurement rate of up to 5000 readings per second, a 1-year 0.01%-reading basic DC voltage accuracy and internal thermocouple cold junction compensation. Its 4.3-inch TFT display offers dual display, histogram, trend and bar graph with statistics functions; it has 1 GB internal memory and USB memory support. Can be connected to automatic test systems via SCPI commands through its USB Host, USB Device, LAN and RS-232C interfaces.
| Display Count | 200.000 |
|---|---|
| True RMS | Available |
| Range Selection | Otomatik ve manuel |
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · 1 yıllık doğruluk ±(%0,01 okuma + %0,003–0,004 aralık) (200 mV–20 V), ±(%0,015 okuma + %0,003 aralık) (200 V–1000 V) |
| AC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 750 V · 1 yıllık doğruluk ±(%0,2 okuma + %0,05 aralık) (45 Hz – 20 kHz); frekans aralığı 20 Hz – 100 kHz |
| DC Current Measurement | 200 µA / 2 mA / 20 mA / 200 mA / 2 A / 10 A · 1 yıllık doğruluk ±(%0,055 okuma + %0,005 aralık) (200 µA, 2 mA) – ±(%0,25 okuma + %0,01 aralık) (10 A) |
| AC Current Measurement | 2 mA / 20 mA / 200 mA / 2 A / 10 A · 1 yıllık doğruluk ±(%0,3–0,5 okuma + %0,1–0,2 aralık) (45 Hz – 2 kHz); frekans aralığı 20 Hz – 10 kHz |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 10 MΩ / 100 MΩ (2 telli ve 4 telli) · 1 yıllık doğruluk ±(%0,02 okuma + %0,003 aralık) (2 kΩ–200 kΩ) |
| Capacitance Measurement | 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF · ±(%1 okuma + %0,5 aralık) (20 nF–200 µF) |
| Frequency Measurement | 20 Hz – 1 MHz · ±(%0,01 okuma + %0,003 aralık) (20 Hz – 200 kHz); periyot ölçümü 1 µs – 0,05 s |
| Temperature Measurement | RTD (Pt100, α = 0,00385): −200 °C – 660 °C · 0,16 °C; B, E, J, K, N, R, S, T tipi termokupl · 0,5–0,76 °C (prob hatası hariç) |
| Diode Test | 0–4 V, 1 mA test akımı |
| Continuity Test | 2000 Ω aralık, ayarlanabilir eşik, sesli uyarı |
| DCV Input Impedance | 10 MΩ veya > 10 GΩ (200 mV, 2 V, 20 V); 10 MΩ ±%2 (200 V, 1000 V) |
| Measurement Rate | 2,5 / 10 / 5000 okuma/s |
| Memory | 10.000 okumalık geçici kayıt, 1 GB NAND flash, 6 ön ayar; USB bellek desteği |
| Additional Functions | Çift ekran, maksimum/minimum/ortalama, standart sapma, bağıl ölçüm, dB/dBm, Pass/Fail, tutma (HOLD), histogram, trend ve çubuk grafik, harici tetik girişi, VMC çıkışı, SCPI komut seti |
| Interfaces | USB Host, USB Device, LAN (10/100 Mbit), RS-232C |
| Certifications | EN 61010-1:2010 + A1:2019, EN IEC 61010-2-030:2021, EN 61326-1:2013 |
| Operating Temperature | 0–55 °C (0–28 °C: < %90 RH; 28–40 °C: < %75 RH; 40–55 °C: < %50 RH, yoğuşmasız) |
| Power Source | AC 90–110 V / 110–132 V (45–440 Hz), 200–240 V / 216–264 V (45–66 Hz); en fazla 20 W |
| Display Size | 4,3 inç TFT LCD, 480 × 272 |
| Product Dimensions | 260 × 116 × 332 mm |
| Gram | 4.4 kg |
| Standard Accessories | Üç uçlu güç kablosu, test kabloları (1 çift), USB kablosu, RS232 kablosu, hızlı başlangıç kılavuzu, garanti kartı |
