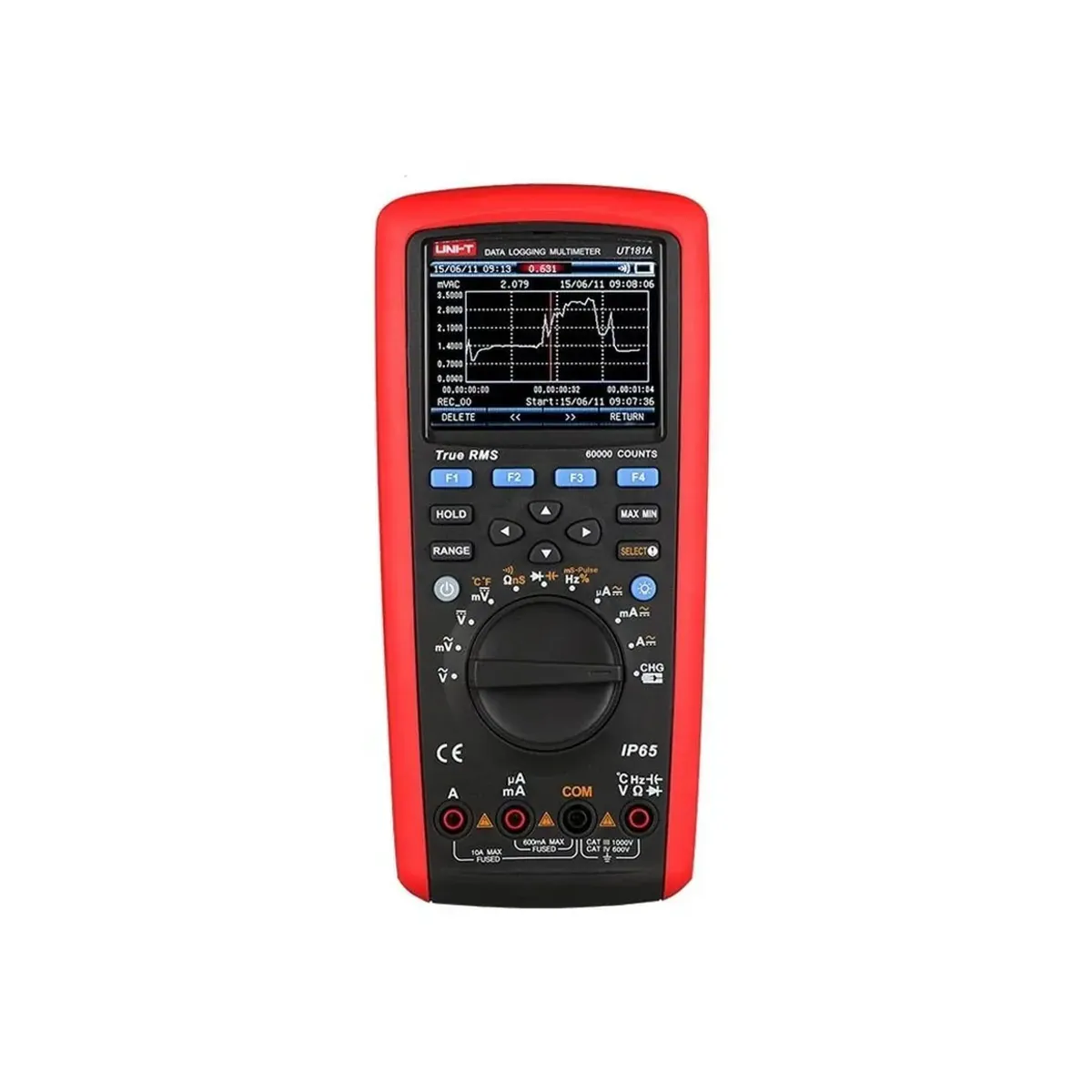

Unit UT181A True Rms Digital Multimeter
- Brand: Unit
- SKU: UT181A
- MPN: UT181A
- Price: 17952.90 TRY + VAT · incl. VAT 21543.48 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT181A True Rms Digital Multimeter is a digital multimeter model manufactured by UNI-T. It has a 60000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (10 A), AC current (10 A), resistance (60 MΩ), capacitance (60 mF), frequency (10 Hz – 60 MHz), temperature (−40 °C – 1000 °C), conductivity (60nS). Other features: low-pass filter (LPF), dBV/dBm measurement, diode test (approx. 3 V), duty cycle measurement (10% – 90%), dual temperature measurement (T1, T2, T1-T2, T2-T1), relative (REL) measurement, trend recording, MAX/MIN/AVG, adjustable backlight, wrong socket warning, battery indicator, auto power off, rechargeable battery, input protection, AC+DC measurement, audible continuity test, data hold, peak hold, date/time display, data comparison, analog bar graph, USB interface. Power source: 7.4 V 2000 mAh Li-ion battery. Box contents: battery, test probes, temperature adapter socket, point-contact temperature probes, power adapter socket, power adapter, PC software CD, USB interface cable.
| AC Current Measurement | 10 A · ±(%0,6+20) |
|---|---|
| AC Bandwidth | 100 kHz |
| AC Voltage Measurement | 1000 V · ±(%0,3+30) |
| AC+DC and Audible Continuity | Available |
| Low-Pass Filter | 1 kHz |
| Analog Bar Graph and USB | Available |
| Adjustable Backlight | Available |
| Gram | 638.6 g |
| Relative Measurement | Available |
| DC Current Measurement | 10 A · ±(%0,08+10) |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 1000 V · ±(%0,025+5) |
| Resistance Measurement | 60 MΩ · ±(%0,05+2) |
| Diode Test | Yaklaşık 3 V |
| Additional Functions | Düşük geçiren filtre (LPF), dBV/dBm ölçümü, diyot testi (yaklaşık 3 V), görev döngüsü ölçümü (%10 – %90), çift sıcaklık ölçümü (T1, T2, T1-T2, T2-T1), bağıl (REL) ölçüm, trend kaydı, MAX/MIN/AVG, ayarlanabilir arka ışık, yanlış soket uyarısı, pil göstergesi, otomatik kapanma, şarj edilebilir batarya, giriş koruması, AC+DC ölçüm, sesli süreklilik testi, veri tutma, tepe değer tutma, tarih/saat gösterimi, veri karşılaştırma, analog çubuk gösterge, USB arayüzü |
| Display Size | 3,5 inç 64K renkli TFT LCD (320 × 240) |
| Display Count | 60000 |
| Trend Logging | Available |
| Frequency Measurement | 10 Hz – 60 MHz · ±(%0,01+5) |
| Input Protection | Available |
| Duty Cycle Measurement | 10%~90% |
| Power Source | 7,4 V 2000 mAh Li-ion batarya |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60 mF · ±(%2+5) |
| LPF Cut-off Frequency | 1 kHz |
| MIN/MAX/AVG | Available |
| Battery Indicator and Auto Power Off | Available |
| Standard Accessories | Pil, test probları, sıcaklık adaptör soketi, nokta temaslı sıcaklık probları, güç adaptörü soketi, güç adaptörü, PC yazılım CD'si, USB arayüz kablosu |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+30) |
| Date and Data Comparison | Available |
| Data Logging | 20000 kayıt |
| Data and Peak Hold | Available |
| Incorrect Input Warning | Available |
| dBV/dBm Measurement | Available |
| Dual Temperature Measurement | T1, T2, T1-T2, T2-T1 |
| Product Dimensions | 225 mm × 103 mm × 59 mm |
| Conductance Measurement | 60 nS · ±(%2+10) |
| Rechargeable Battery | Available |
