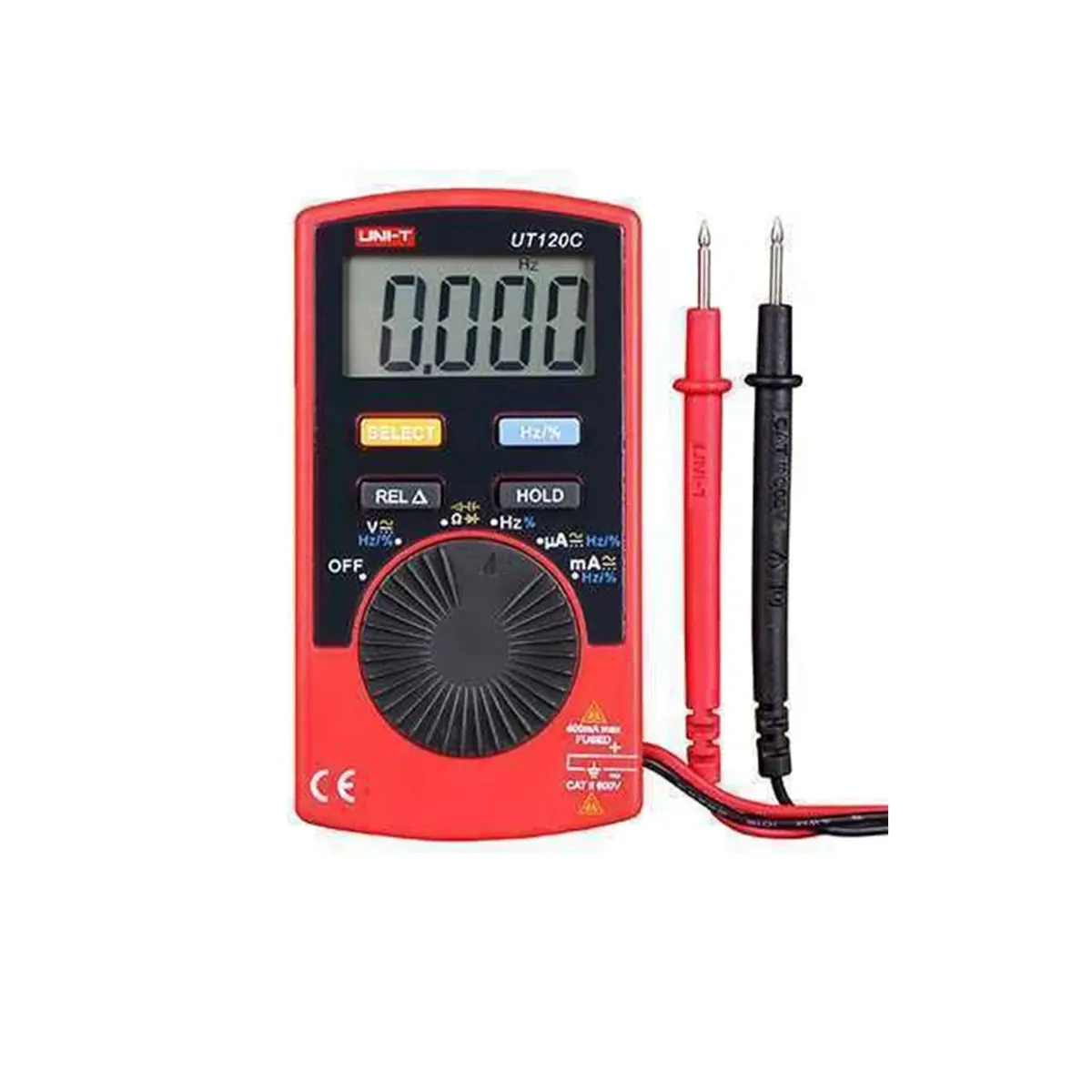

Unit UT120C Pocket Digital Multimeter
- Brand: Unit
- SKU: UT120C
- MPN: UT120C
- Price: 1027.84 TRY + VAT · incl. VAT 1233.41 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT120C Pocket Digital Multimeter, a digital multimeter model from the UNI-T UT120 series. It has a 4000-count display. Measurement functions: DC voltage (600 V), AC voltage (600 V), DC current (400 mA), AC current (400 mA), resistance (40 MΩ), capacitance (100 µF), frequency (10 MHz). Other features: duty cycle measurement (0.1% – 99.9%), diode test, auto power off (approx. 30 min), audible continuity test, low battery indicator (≤2.4 V), data hold, relative (REL) measurement. Power source: 3 V battery (CR2032). Box contents: battery, carrying case.
| AC Current Measurement | 400 mA · ±(%1,5+5) |
|---|---|
| AC Voltage Measurement | 600 V · ±(%1,2+3) |
| Gram | 76 g |
| Relative Measurement | Available |
| DC Current Measurement | 400 mA · ±(%1+3) |
| DCV Input Impedance | Yaklaşık 10 MΩ |
| DC Voltage Measurement | 600 V · ±(%0,8+1) |
| Resistance Measurement | 40 MΩ · ±(%1+2) |
| Diode Test | Available |
| Low Battery Indication | ≤2.4V |
| Additional Functions | Görev döngüsü ölçümü (%0,1 – %99,9), diyot testi, otomatik kapanma (yaklaşık 30 min), sesli süreklilik testi, düşük pil göstergesi (≤2,4 V), veri tutma, bağıl (REL) ölçüm |
| Display Size | 43 mm × 22 mm |
| Display Count | 4000 |
| Frequency Measurement | 10 MHz · ±(%0,5+3) |
| Duty Cycle Measurement | 0.1%~99.9% |
| Power Source | 3 V pil (CR2032) |
| Range Selection | Otomatik |
| Capacitance Measurement | 100 µF · ±(%4+3) |
| Auto Power Off | Yaklaşık 30 dakika |
| Standard Accessories | Pil, taşıma çantası |
| Continuity Test | Available |
| Data Hold | Available |
| Product Dimensions | 110 mm × 58,2 mm × 10,8 mm |
