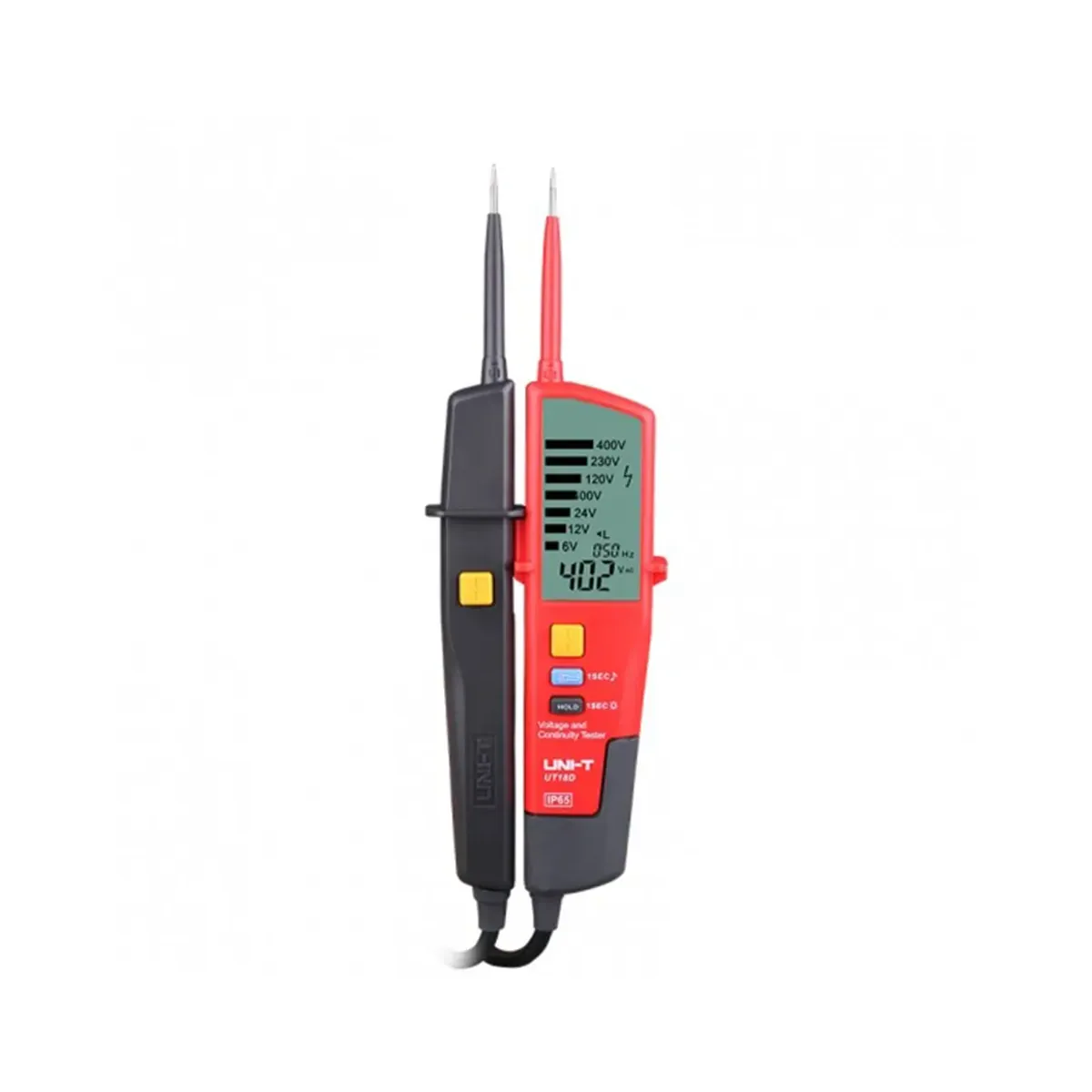

Unit UT18D Voltage and Continuity Tester
- Brand: Unit
- SKU: UT18D
- MPN: UT18D
- Price: 2421.13 TRY + VAT · incl. VAT 2905.36 TRY
- Availability: In stock
- Voltage and Continuity Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT18D Voltage and Continuity Tester. Voltage Measurement: 6V; 5V±1V; 12V; 8V±1V; 24V; 18V±2V; 50V; 38V±4V; 120V; 94V±8V; 230V; 180V±14V; 400V; 325V±15V; 690V; 562V±24V. Phase Sequence Test: 57Vac~400Vac (3 phase); Frequency: 50Hz~400Hz. Single-Probe Phase Detection: Operating voltage: 100V~690V; Frequency: 50Hz~400Hz. Continuity Test: Resistance: 0Ω~100kΩ (+50% accuracy); Audible and LED indicator. RCD Test: Operating voltage: 230V (50Hz~400Hz). Polarity Detection: Positive and negative. Self-Test: All LED or LCD indicators. Voltage Indicator: LCD. Automatic Standby: Standby akımı<10μA. Silent Mode: All steps. Other features: Flashlight: Yes; Low Battery Indication: Approx. 2.5V; Backlight: Yes; LCD Voltage Display: 6V~690V (accuracy: ±(1.5%+5)); LCD Frequency Display: 40Hz~400Hz (accuracy: ±(3%+5)); Power Source: 1.5V battery (R03)×2; Weight: 280g; Product Dimensions: 272mm x 85mm x 31mm.
| Backlight | Available |
|---|---|
| Gram | 280 g |
| Low Battery Indication | Yaklaşık 2.5V |
| Flashlight | Available |
| Phase Sequence Test | 57Vac~400Vac (3 faz); Frekans: 50Hz~400Hz |
| Voltage Indicator | LCD |
| Voltage Measurement | 6V; 5V±1V; 12V; 8V±1V; 24V; 18V±2V; 50V; 38V±4V; 120V; 94V±8V; 230V; 180V±14V; 400V; 325V±15V; 690V; 562V±24V |
| Power Source | 1.5V pil (R03) × 2 |
| Self-Test | Tüm LED veya LCD göstergeler |
| LCD Frequency Display | 40Hz~400Hz (doğruluk: ±(3%+5)) |
| LCD Voltage Display | 6V~690V (doğruluk: ±(1.5%+5)) |
| Automatic Standby | Bekleme akımı<10μA |
| Polarity Detection | Pozitif ve negatif |
| RCD Test | Çalışma gerilimi: 230V (50Hz~400Hz) |
| Silent Mode | Tüm kademeler |
| Continuity Test | Direnç: 0Ω~100kΩ (+50% doğruluk); Sesli ve LED ışıklı gösterge |
| Single-Probe Phase Detection | Çalışma gerilimi: 100V~690V; Frekans: 50Hz~400Hz |
| Product Dimensions | 272mm x 85mm x 31mm |
