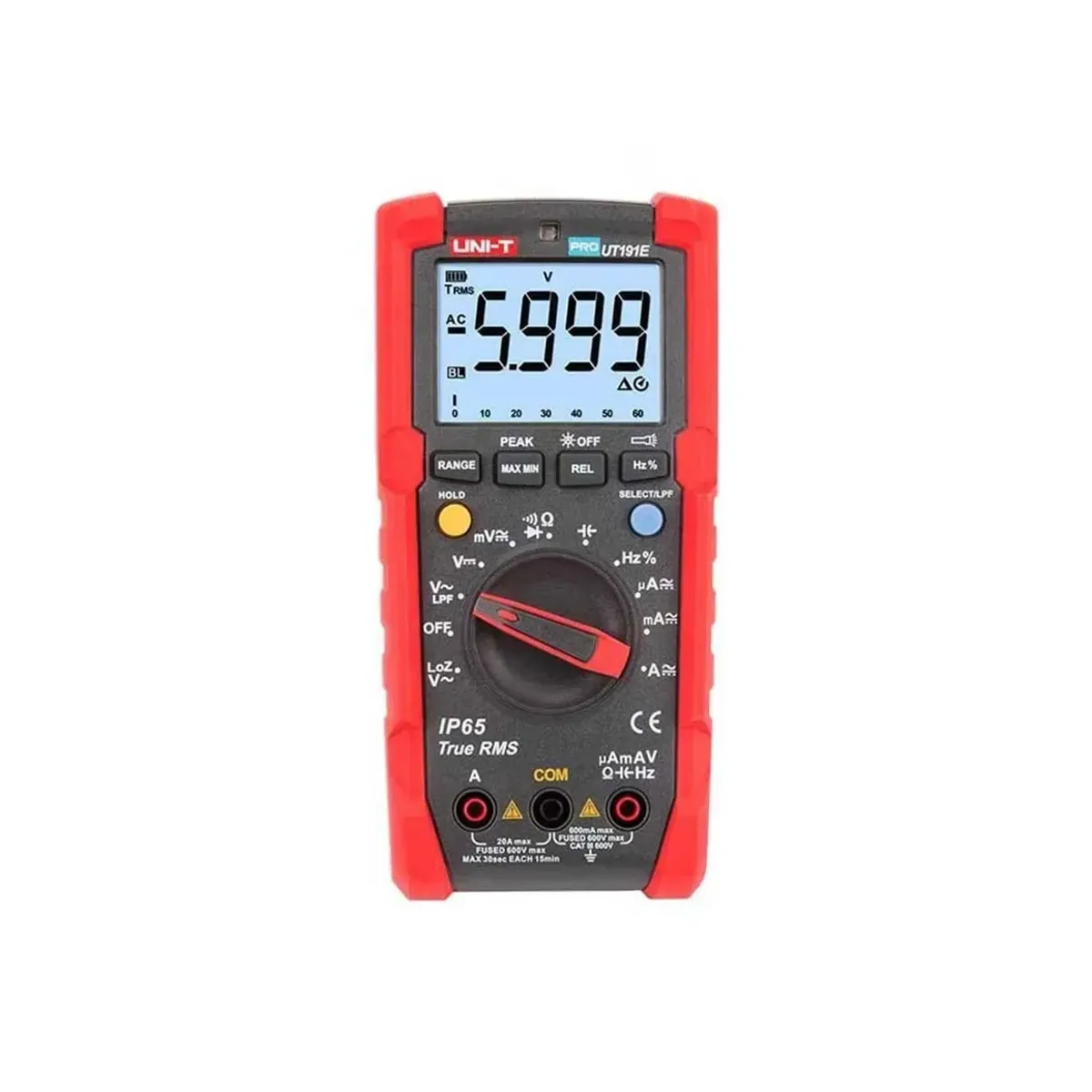

Unit UT191E Professional Multimeter
- Brand: Unit
- SKU: UT191E
- MPN: UT191E
- Price: 3197.72 TRY + VAT · incl. VAT 3837.26 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT191E Professional Multimeter, a digital multimeter model from the UNI-T UT191 series. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (600 V), AC voltage (600 V), DC current (20 A), AC current (20 A), resistance (60 MΩ), capacitance (60 mF), frequency (10 Hz – 1 MHz), duty cycle (0.1% – 99.9%). Other features: auto power off, low battery indicator, function selection (SELECT), diode test, audible continuity test, data hold, MAX, MIN, flashlight, automatic backlight, 2 m drop resistance, IP65 protection. Safety category CAT III 600 V. Power source: 9 V battery. Box contents: test probes, battery, carrying case.
| AC Current Frequency Response | 45 Hz – 400 Hz |
|---|---|
| AC Current Measurement | 20 A · ±(%1+3) |
| AC Voltage Frequency Response | 45 Hz – 400 Hz |
| AC Voltage Peak Hold | doğruluk ±(%2+100) |
| AC Voltage Measurement | 600 V · ±(%0,7+3); 600 V · ±(%2+5) |
| Analog Bar Graph | 31 segment |
| Gram | 428 g |
| DC Current Measurement | 20 A · ±(%0,8+3) |
| DC Voltage Measurement | 600 V · ±(%0,5+3) |
| Resistance Measurement | 60 MΩ · ±(%0,8+2) |
| Diode and Continuity Test | Available |
| Low Battery Indication | Available |
| Additional Functions | Otomatik kapanma, düşük pil göstergesi, fonksiyon seçimi (SELECT), diyot testi, sesli süreklilik testi, veri tutma, MAX, MIN, el feneri, otomatik arka ışık, 2 m düşme dayanımı, IP65 koruma |
| Display Size | 58 mm × 42 mm |
| Display Count | 6000 |
| Flashlight and Automatic Backlight | Available |
| Function Selection | Available |
| Frequency Measurement | 10 Hz – 1 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | %0,1 – %99,9 · ±(%2+5) |
| Safety Category | CAT III 600 V |
| Power Source | 9 V pil |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60 mF · ±(%3+5) |
| LPF Voltage Measurement | 600V (doğruluk: ±(2%+5)) |
| LoZ Voltage Measurement | 600 V · ±(%2+5) |
| Auto Power Off | Available |
| Standard Accessories | Test probları, pil, taşıma çantası |
| Peak Current Detection | doğruluk ±(%3+100) |
| True RMS | Available |
| Data Hold and MIN/MAX | Available |
| Measurement Rate | 3 kez/s |
| Sampling Rate | 3 kez/saniye |
| Product Dimensions | 180 mm × 87 mm × 59 mm |
