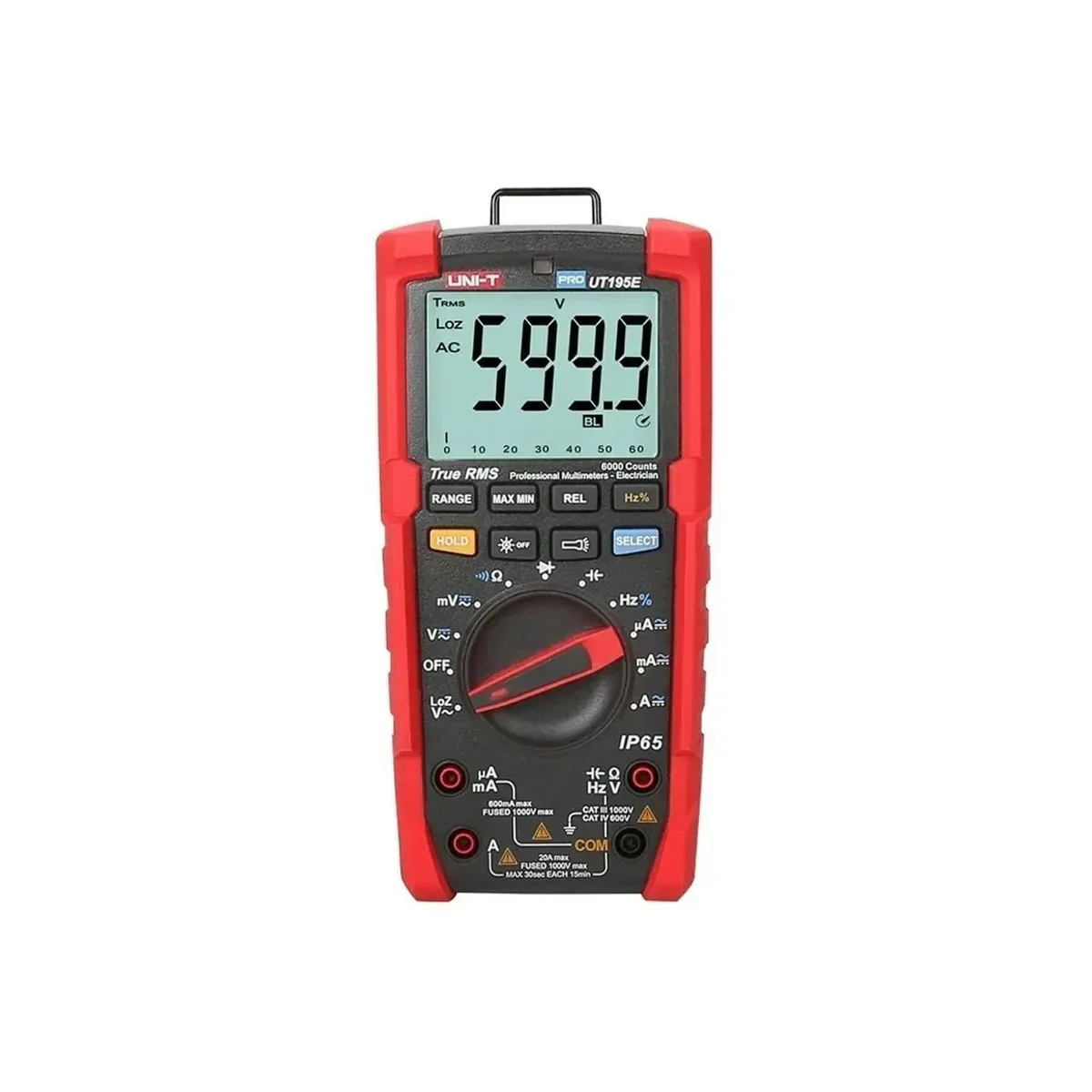

Unit UT195E Industrial True RMS Multimeter
- Brand: Unit
- SKU: UT195E
- MPN: UT195E
- Price: 5573.17 TRY + VAT · incl. VAT 6687.80 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT195E Industrial True RMS Multimeter is a digital multimeter model from the UNI-T UT195 series. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (20 A), AC current (20 A), resistance (60 MΩ), capacitance (60 mF), frequency (60 Hz – 10 MHz), duty cycle (0.1% – 99.9%). Other features: analog bar graph (31 segments), audible continuity test, low battery indicator, MAX/MIN, function selection (SELECT), data hold, auto power off, flashlight, automatic backlight. Power source: 9 V battery. Box contents: test probes, battery, carrying case.
| AC Current Frequency Response | 45–400 Hz |
|---|---|
| AC Current Measurement | 20 A · ±(%1+3) |
| AC Voltage Frequency Response | 45–400 Hz |
| AC Voltage Measurement | 1000 V · ±(%1+3) |
| Analog Bar Graph | 31 bölüm |
| Analog Bar Update Rate | 10 kez/s |
| Gram | 437 g |
| DC Current Measurement | 20 A · ±(%0,8+3) |
| DC Voltage Measurement | 1000 V · ±(%0,2+5) |
| Resistance Measurement | 60 MΩ · ±(%0,8+2) |
| Diode and Continuity Test | 3.5 V |
| Diode/Continuity Test Voltage | 3.5 V |
| Low Battery Indication | Available |
| Additional Functions | Analog çubuk gösterge (31 segment), sesli süreklilik testi, düşük pil göstergesi, MAX/MIN, fonksiyon seçimi (SELECT), veri tutma, otomatik kapanma, el feneri, otomatik arka ışık |
| Display | Tek |
| Display Size | 66 mm × 51 mm |
| Display Count | 6000 |
| Flashlight and Automatic Backlight | Available |
| Function Selection | Available |
| Frequency Measurement | 60 Hz – 10 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | %0,1 – %99,9 · ±(%2+5) |
| Power Source | 9 V pil |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60 mF · ±(%3+5) |
| LoZ Voltage Measurement | 600 V · ±(%2+3) |
| MIN/MAX | Available |
| Standard Accessories | Test probları, pil, taşıma çantası |
| Continuity Test | Available |
| True RMS | Available |
| Data Hold and Auto Power Off | Available |
| Measurement Rate | 3 kez/s |
| Measurement Sampling Rate | ölçüm/s; 3 |
| Product Dimensions | 195 mm × 95 mm × 58 mm |
