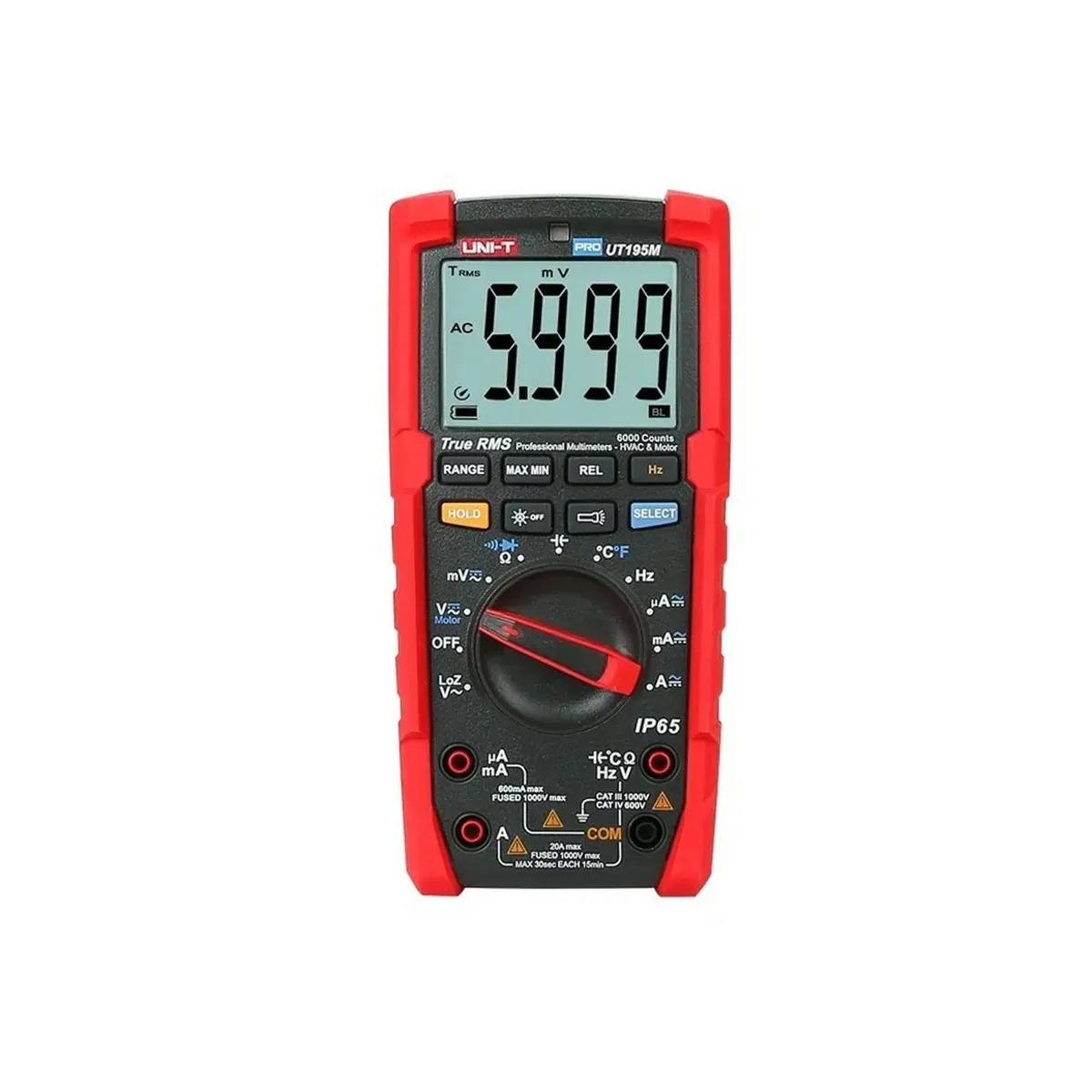

Unit UT195M Industrial True RMS Multimeter
- Brand: Unit
- SKU: UT195M
- MPN: UT195M
- Price: 6852.25 TRY + VAT · incl. VAT 8222.70 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT195M Industrial True RMS Multimeter is a digital multimeter model from the UNI-T UT195 series. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (20 A), AC current (20 A), resistance (60 MΩ), capacitance (60 mF), frequency (60 Hz – 40 MHz), temperature (−40 °C – 1000 °C). Other features: 3-phase motor phase sequence test (600 V), audible continuity test, low battery indicator, MAX/MIN, function selection (SELECT), data hold, auto power off, flashlight, automatic backlight. Power source: 9 V battery. Box contents: test probes, battery, carrying case, point-contact temperature probe.
| AC Current Frequency Response | 45 Hz – 1 kHz |
|---|---|
| AC Current Measurement | 20 A · ±(%1+3) |
| AC Voltage Frequency Response | 45 Hz – 1 kHz |
| AC Voltage Measurement | 1000 V · ±(%1+3) |
| Analog Bar Update Rate | ölçüm/s; N/A |
| Gram | 437 g |
| DC Current Measurement | 20 A · ±(%0,8+3) |
| DC Voltage Measurement | 1000 V · ±(%0,2+5) |
| Resistance Measurement | 60 MΩ · ±(%0,8+2) |
| Diode and Continuity Test | 3 V |
| Diode/Continuity Test Voltage | 3 V |
| Low Battery Indication | Available |
| Additional Functions | 3 faz motor faz sırası testi (600 V), sesli süreklilik testi, düşük pil göstergesi, MAX/MIN, fonksiyon seçimi (SELECT), veri tutma, otomatik kapanma, el feneri, otomatik arka ışık |
| Display | Tek |
| Display Size | 66 mm × 51 mm |
| Display Count | 6000 |
| Flashlight and Automatic Backlight | Available |
| Function Selection | Available |
| Frequency Measurement | 60 Hz – 40 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | 0.1%~99.9%; N/A |
| Power Source | 9 V pil |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60 mF · ±(%3+5) |
| LoZ Voltage Measurement | 600 V · ±(%2+3) |
| MIN/MAX | Available |
| Standard Accessories | Test probları, pil, taşıma çantası, nokta temaslı sıcaklık probu |
| Continuity Test | Available |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1,5+4) |
| True RMS | Available |
| Data Hold and Auto Power Off | Available |
| Measurement Rate | 3 kez/s |
| Measurement Sampling Rate | ölçüm/s; 3 |
| Product Dimensions | 195 mm × 95 mm × 58 mm |
| Three-Phase Motor Rotation Test | 600 V |
