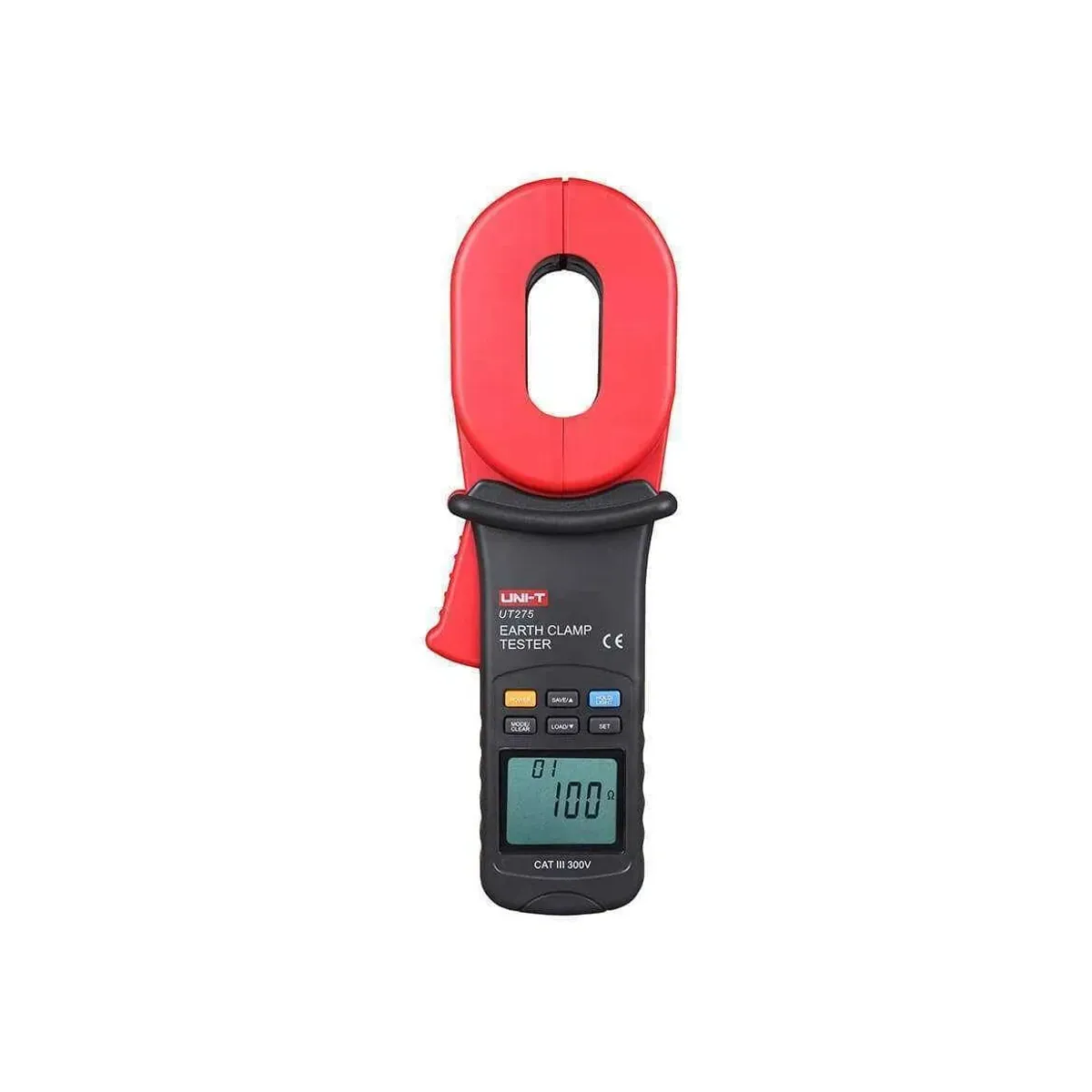

Unit UT275 Clamp-Type Grounding Tester
- Brand: Unit
- SKU: UT275
- MPN: UT275
- Price: 21790.16 TRY + VAT · incl. VAT 26148.19 TRY
- Availability: In stock
- Earthing Measuring Instruments
- Selection guide: Earthing Measuring Instruments Selection Guide: Technical Criteria & Application Standards
Unit UT275 Clamp-Type Grounding Tester, a clamp-type ground resistance tester model manufactured by UNI-T. It has a 10000-count display. Measurement functions: earth resistance, leakage current. Memory: 30 records. Jaw opening 28 mm. Other features: auto power off. Power source: 4 × 1.5 V battery (LR6). Box contents: batteries, test ring, English user manual.
| Gram | 1.32 kg |
|---|---|
| Additional Functions | Otomatik kapanma |
| Display | LCD |
| Display Size | 47 mm × 28,5 mm |
| Display Count | 10000 |
| Power Source | 4 × 1,5 V pil (LR6) |
| Memory | 30 kayıt |
| Leakage Current Measurement | 0 mA – 299 mA · ±(%2,5+2 mA); 0,3 A – 2,99 A · ±(%2,5+100 mA); 3 A – 30 A · ±(%2,5+300 mA) |
| Auto Power Off | Available |
| Standard Accessories | Piller, test halkası, İngilizce kullanım kılavuzu |
| Earth Resistance Measurement | 0,01 – 0,099 Ω · ±(%1+0,01); 0,1 – 0,99 Ω · ±(%1+0,01); 1 – 49,9 Ω · ±(%1,5+0,1); 50 – 99,5 Ω · ±(%2+0,5); 100 – 199 Ω · ±(%3+1); 200 – 395 Ω · ±(%10+5); 400 – 590 Ω · ±(%20+10); 600 – 1000 Ω · ±(%25+20) |
| Jaw Opening | 28 mm |
| Product Dimensions | 293 mm × 90 mm × 66 mm |
