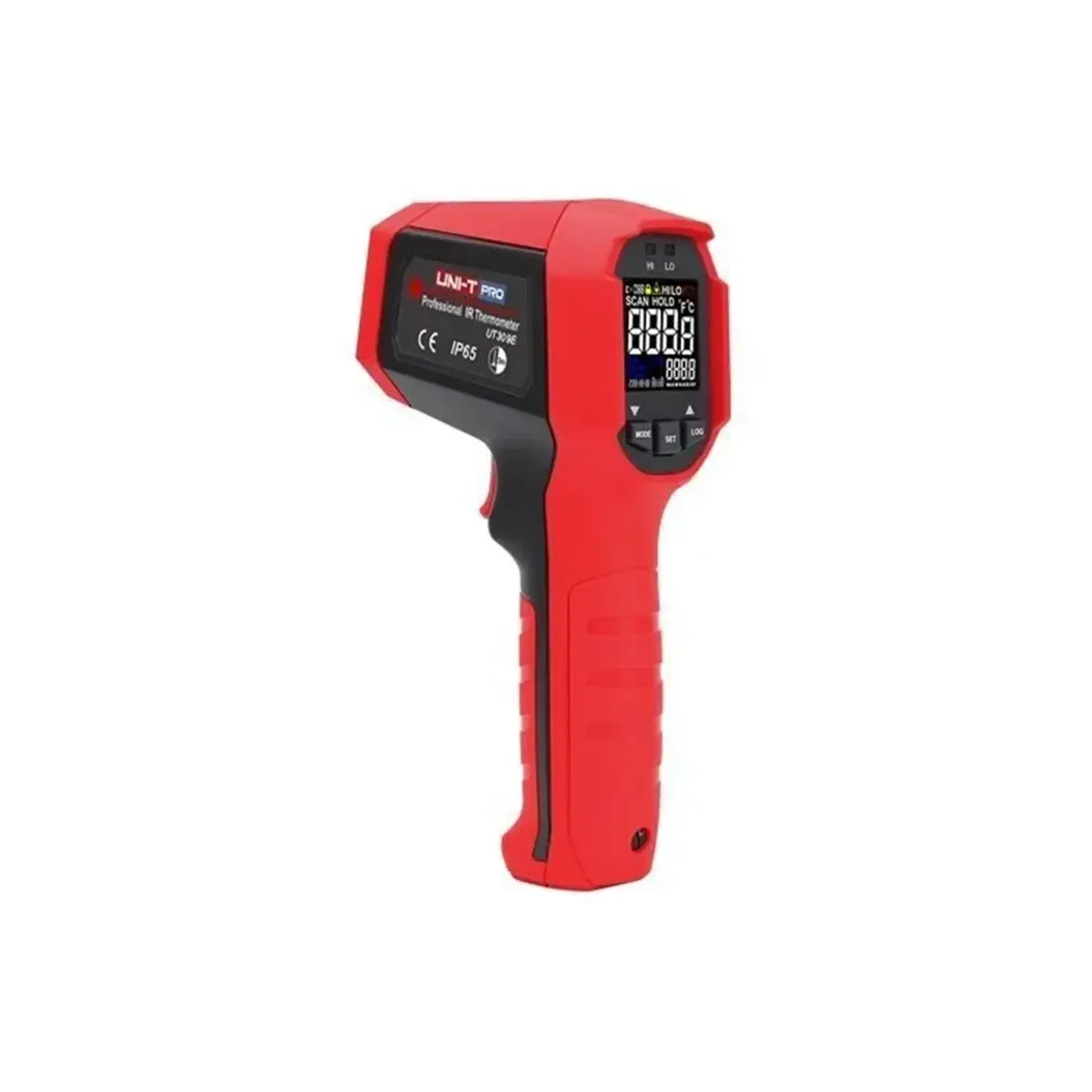

Unit UT309E Professional Laser Thermometer
- Brand: Unit
- SKU: UT309E
- MPN: UT309E
- Price: 4111.35 TRY + VAT · incl. VAT 4933.62 TRY
- Availability: In stock
- Infrared Thermometers
- Unit Infrared Thermometers
- Selection guide: Infrared Thermometers Selection Guide: Technical Criteria & Application Standards
Unit UT309E Professional Laser Thermometer, an infrared thermometer model from the UNI-T UT309 series. Measuring range −35 °C – 850 °C. Accuracy ≥0 °C: ±1.8 °C or ±1.8%; <0 °C: ±(1.8 °C+0.1 °C / °C). Distance-to-spot (D:S) ratio 20:1. Emissivity adjustable from 0.1 – 1. Response time 250 ms (95% of reading). Resolution 0.1 °C / 0.1 °F. Laser class: Class 2. Other features: °C/°F selection, laser on/off, low battery indicator, locked measurement, MAX/MIN/AVG/DIF, upper limit alarm (red LED), lower limit alarm (blue LED), backlight, tripod mounting hole, data hold, auto power off. Power source: 9 V battery (6F22). Box contents: PC software CD, carrying case.
| Backlight | Available |
|---|---|
| Gram | 292 g |
| D:S Ratio | 20:1 |
| Accuracy | ≥0 °C: ±1,8 °C veya ±%1,8; <0 °C: ±(1,8 °C+0,1 °C / °C) |
| Low Alarm (Blue LED) | Available |
| Low Battery Indication | Available |
| Additional Functions | °C/°F seçimi, lazer aç/kapa, düşük pil göstergesi, kilitli ölçüm, MAX/MIN/AVG/DIF, üst limit alarmı (kırmızı LED), alt limit alarmı (mavi LED), arka ışık, tripod bağlantı deliği, veri tutma, otomatik kapanma |
| Display Size | 32 mm × 29 mm |
| Display Hold Time | 8 |
| Emissivity | 0,1 – 1 ayarlanabilir |
| Power Source | 9 V pil (6F22) |
| Laser Wavelength | 630 nm – 670 nm |
| Laser Power | < 1 mW |
| Number of Lasers | Çift lazer |
| Laser Class | Class 2 |
| MIN/MAX/AVG/DIFF | Available |
| Spectral Response | 8 µm – 14 µm |
| Standard Accessories | PC yazılım CD'si, taşıma çantası |
| Temperature Range | -35°C~850°C; -31°F~1562°F |
| Response Time | 250 ms (okumanın %95'i) |
| Tripod Mount | Available |
| Data Retention Time | 8 |
| Data Hold and Auto Power Off | Available |
| High Alarm (Red LED) | Available |
| Resolution | 0,1 °C / 0,1 °F |
| Measuring Range | −35 °C – 850 °C |
| Measurement Lock | Available |
| Product Dimensions | 189 mm × 118 mm × 55 mm |
