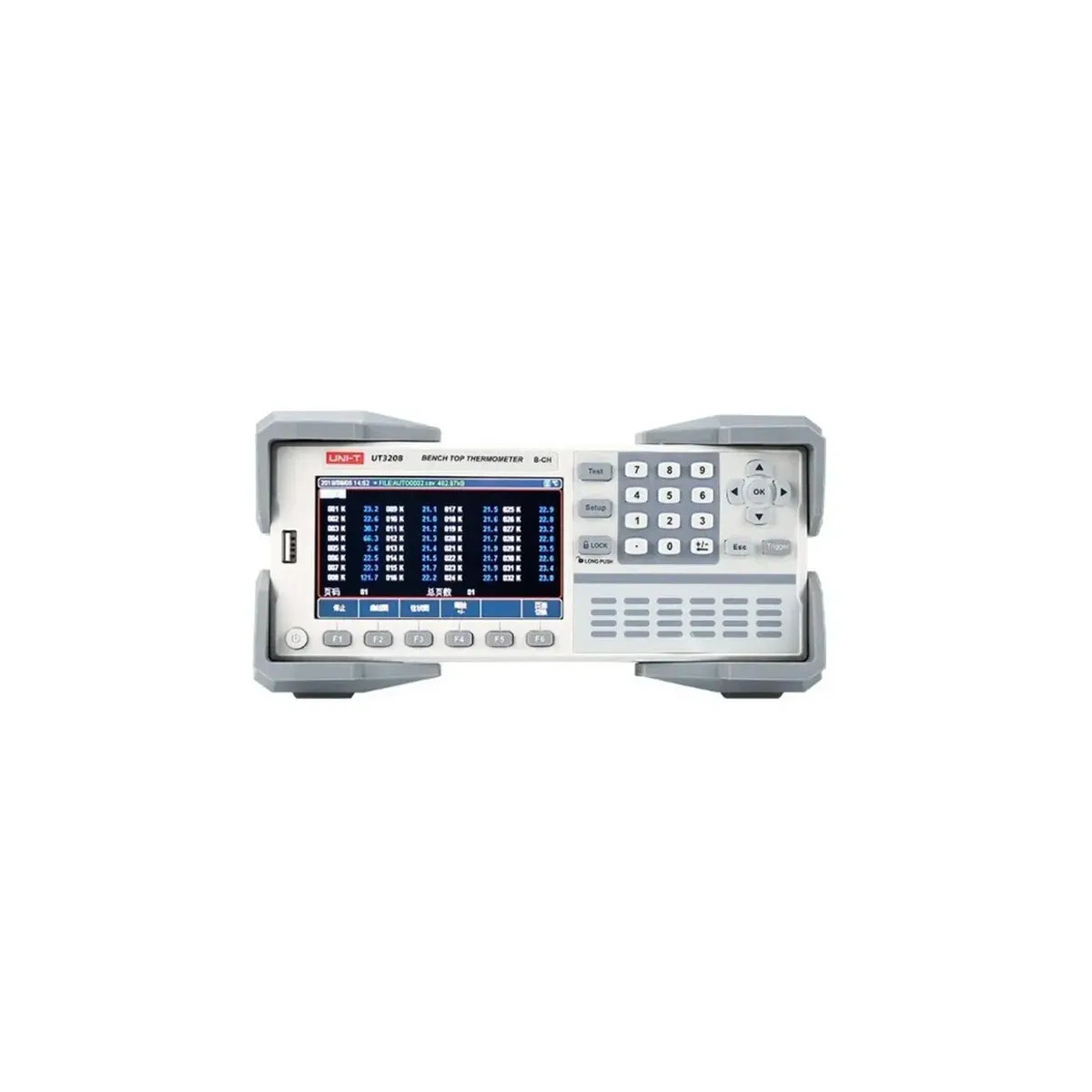

Unit UT3208+ 8 Channel Temperature Logger
- Brand: Unit
- SKU: UT3208+
- MPN: UT3208+
- Price: 27409.01 TRY + VAT · incl. VAT 32890.81 TRY
- Availability: Made to order
- Temperature Data Loggers
- Selection guide: Data Loggers Selection Guide: Technical Criteria and Engineering Practice
Unit UT3208+ is a 8-channel temperature tester from the UNI-T UT3200+ series. Supports type J, K, T, E, S, N, B and R thermocouples; depending on the thermocouple type, measures in the −200…1800 °C range with 0.01 °C resolution. Data from 8 channels is collected simultaneously and displayed on a 4.3-inch color display as numeric values, curve graphs or histograms. It features open-circuit thermocouple detection, upper/lower limit alarm, data and screenshot recording to a 8 GB USB drive, input calibration and offset adjustment. Has USB Host, RS232C, LAN and DC 24 V interfaces; isolation between channels is 350 V DC / 230 V AC. Powered from the 100–240 V AC mains.
| Interfaces | USB Host, RS232C, LAN, DC 24 V, RS485 (opsiyonel) |
|---|---|
| Supply Voltage | AC 100–240 V, 50/60 Hz |
| Accuracy | K tipi: −100…0 °C ±1,2 °C · 0…1350 °C ±0,8 °C (soğuk uç kompanzasyonu hariç) |
| Additional Functions | Açık devre termokupl algılama, üst/alt limit alarmı, 8 GB USB kayıt, giriş kalibrasyonu ve ofset |
| Display Size | 4,3 inç renkli LCD |
| Display Modes | Sayısal değer, eğri grafik, histogram |
| Channel Count | 8 |
| Channel-to-Channel Isolation | 350 V DC / 230 V AC |
| Standard Accessories | Güç kablosu, 8 GB USB bellek, 8 kanallı sıcaklık test modülü (1 grup), RS232 iletişim kablosu |
| Temperature Range | -200~1800°C |
| Scan Rate | 10 okuma/s |
| Thermocouple Types | J, K, T, E, S, N, B, R |
| Operating Environment | 15…35 °C, < %80 bağıl nem |
| Resolution | 0,01 °C |
| Measuring Range | −200…1800 °C (termokupl tipine göre) |
