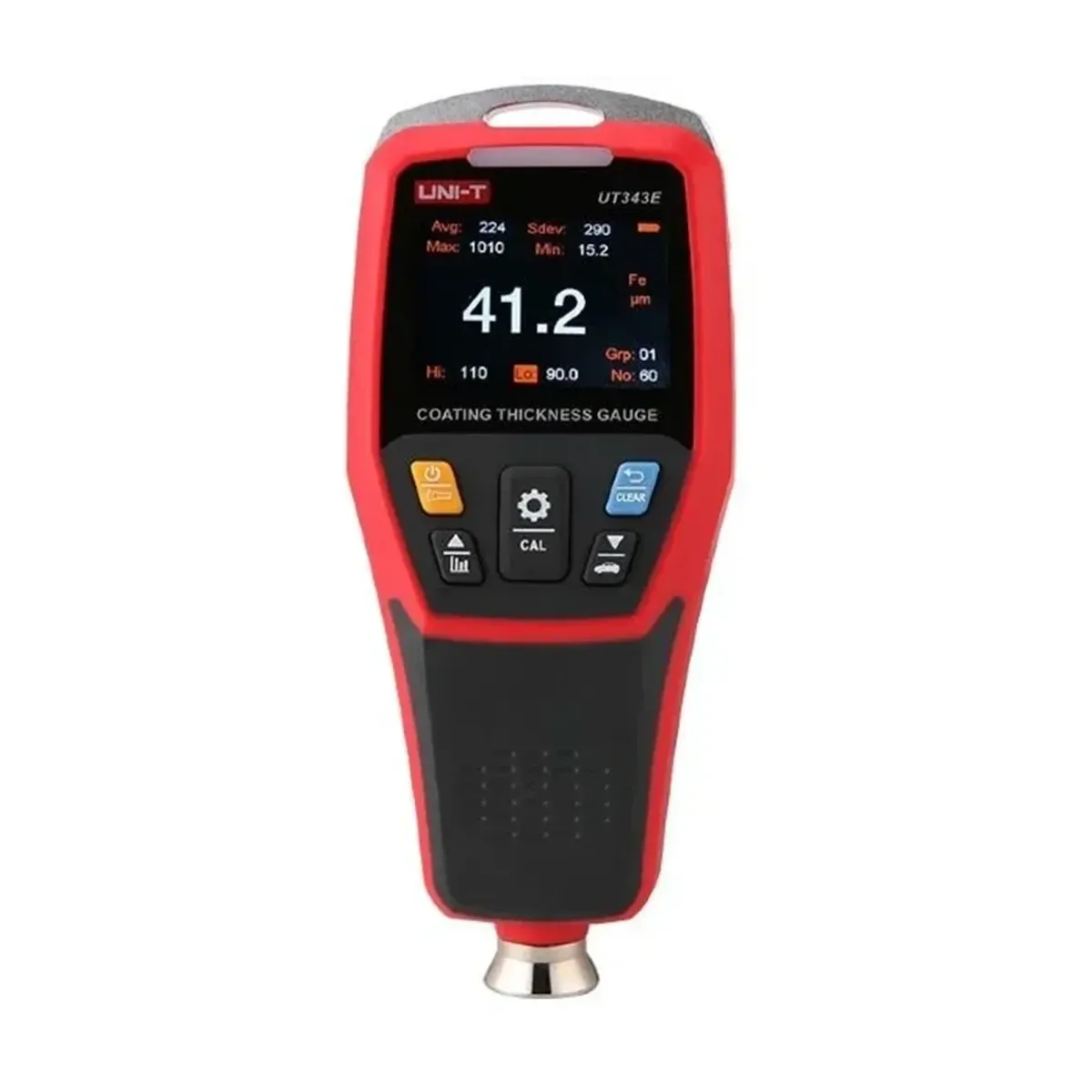

Unit UT343E Coating and Paint Thickness Gauge
- Brand: Unit
- SKU: UT343E
- MPN: UT343E
- Price: 7994.29 TRY + VAT · incl. VAT 9593.15 TRY
- Availability: In stock
- Coating and Thickness Gauges
- Selection guide: Measuring Instruments Selection Guide
Unit UT343E Coating and Paint Thickness Gauge, a coating thickness gauge model manufactured by UNI-T. Measurement functions: coating thickness (0 – 78.7 mil). Memory: 3300 records. Other features: Bluetooth and mobile app, automatically rotating display, LED and audible alarm, voice announcement, flashlight, display brightness adjustment, low battery indicator. Power source: 3.7 V 1300 mAh lithium battery. Box contents: USB cable, hand strap, sensor protective cover, ferrous base plate, non-ferrous base plate, 6 × calibration foil.
| Gram | 150 g |
|---|---|
| Bluetooth and App | Available |
| Ferrous/Non-Ferrous Surface Measurement | 0~2000μm; 0~99.9μm; 0.1μm (doğruluk: ±(2%H+2μm)); 0~2000μm; 100~2000μm; 1μm (doğruluk: ±(2%H+2μm)); 0~78.7mil; 0~4.99mil; 0.01mil (doğruluk: ±(2%H+0.08mil)); 0~78.7mil; 5.0~78.7mil; 0.1mil (doğruluk: ±(2%H+0.08mil)) |
| Low Battery Indication | Available |
| Additional Functions | Bluetooth ve mobil uygulama, otomatik dönen ekran, LED ve sesli alarm, sesli anons, el feneri, ekran parlaklık ayarı, düşük pil göstergesi |
| Display Size | 2 inç renkli TFT ekran |
| Screen Rotation | Available |
| Flashlight | Available |
| Power Source | 3,7 V 1300 mAh lityum batarya |
| Memory | 3300 kayıt |
| Coating Thickness Measurement | 0 – 2000 µm (çözünürlük 0,1 µm) · ±(%2H+2 µm); 0 – 2000 µm (çözünürlük 1 µm) · ±(%2H+2 µm); 0 – 78,7 mil (çözünürlük 0,01 mil) · ±(%2H+0,08 mil); 0 – 78,7 mil (çözünürlük 0,1 mil) · ±(%2H+0,08 mil) |
| LCD Brightness Adjustment | Available |
| LED and Audible Alarm | Available |
| Limit Setting | 0 – 2000 µm |
| Auto Power Off | 5 min |
| Probe Measuring Force | 0,3 – 1,5N |
| Certifications | CE, UKCA |
| Audible Notification | Available |
| Standard Accessories | USB kablosu, el askısı, sensör koruma kapağı, demir taban plakası, demir dışı taban plakası, 6 × kalibrasyon folyosu |
| Substrate Identification | otomatik / manuel |
| USB Communication | bilgisayarla iletişim |
| Measurement Units | µm / mil |
| Measuring Method | tekli / sürekli |
| Product Dimensions | 152 × 65 × 35 mm |
| Statistics | MAX / MIN / AVG |
