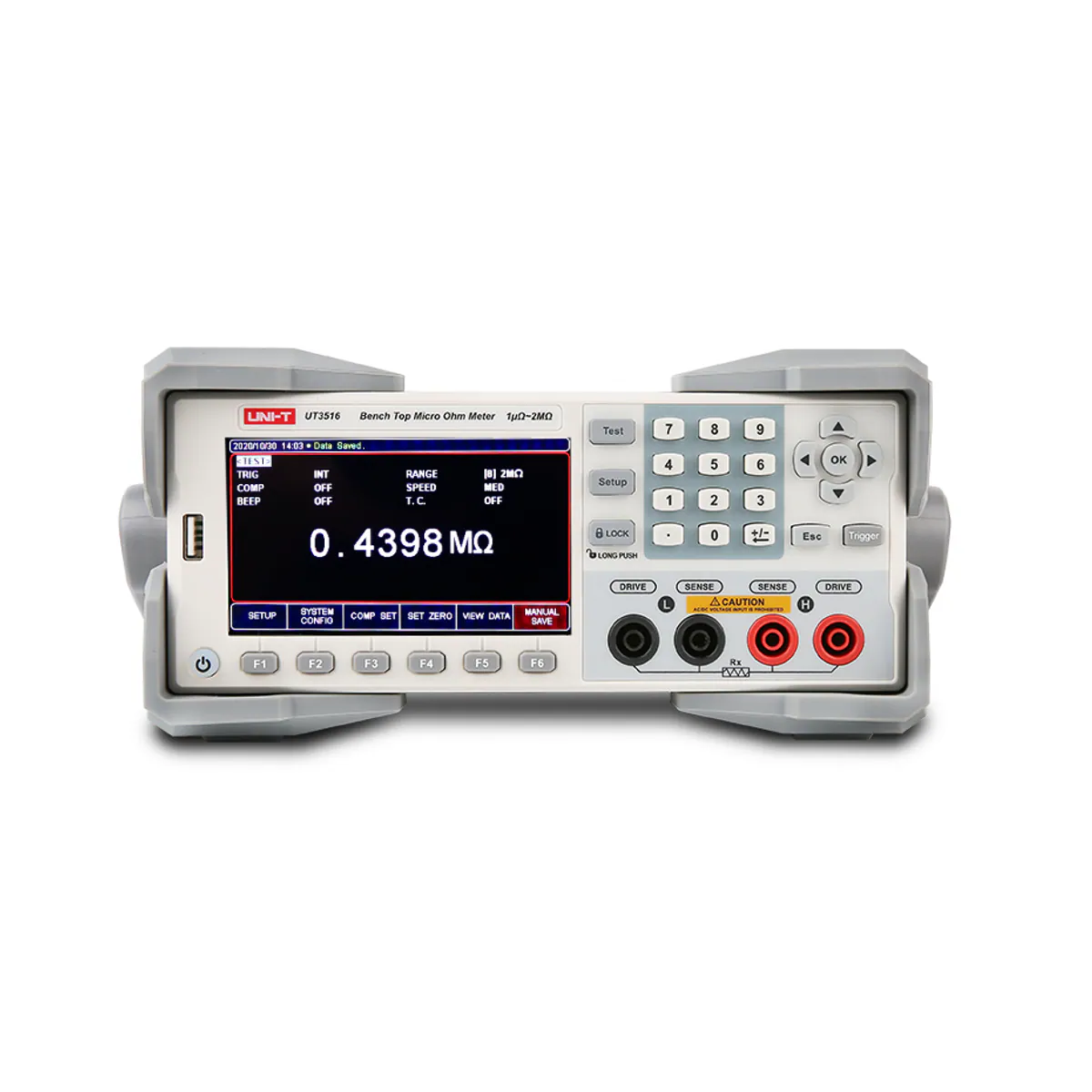

Unit UT3516 1μΩ-2MΩ 0.05% Accuracy 4.3-inch DC Micro Ohm Meter

• Brand: Unit
• SKU: UT3516
• MPN: UT3516
• Price: 36545.34 TRY + VAT · incl. VAT 43854.41 TRY
• Availability: Made to order
• Micro-Ohmmeters
• Selection guide: Electronic Measuring Instruments Selection Guide

Unit UT3516 is a UT3510 series bench micro ohm meter that measures DC resistance from 1 µΩ to 2 MΩ in 9 ranges with 0.05% basic accuracy in slow mode and speeds of up to 60 readings/s. Technical values: measuring range 1 µΩ to 2 MΩ (9 ranges); smallest resolution 1 µΩ; test current 1 A to 1 µA; basic accuracy 0.05% in slow mode, 0.1% in medium mode and 0.5% in rapid mode; maximum reading 22000; test speeds of 3, 18 and 60 readings/s; four-terminal measurement; HANDLER, RS-232, USB Device and USB Host interfaces; 4.3-inch display; dimensions 214 × 89 × 340 mm, weight 3 kg. It sorts resistances into above upper limit, below lower limit and within range, and reports the result on the screen, with a buzzer and through external I/O outputs. At 60 readings/s in rapid mode it suits production line testing, and it connects to a computer using the SCPI and Modbus protocols. It is used to measure low-resistance parts such as coils, transformers, motors, relays, connectors and switches.
