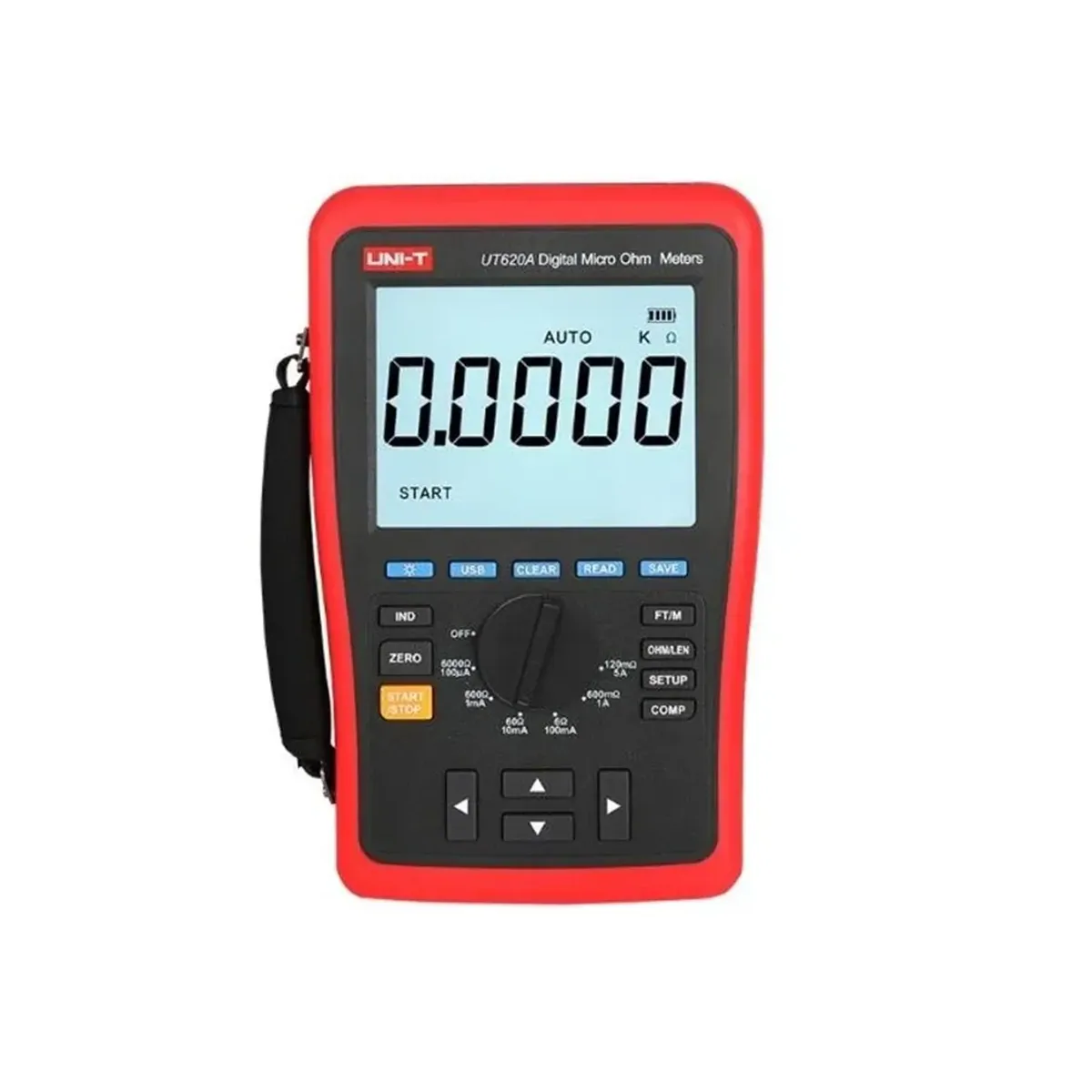

Unit UT620A Digital Micro-Ohmmeter
- Brand: Unit
- SKU: UT620A
- MPN: UT620A
- Price: 24211.29 TRY + VAT · incl. VAT 29053.55 TRY
- Availability: Made to order
- Micro-Ohmmeters
- Selection guide: Electronic Measuring Instruments Selection Guide
Unit UT620A Digital Micro-Ohmmeter is a micro-ohmmeter model manufactured by UNI-T. It has a 60000-count display. Measurement functions: resistance (5 A). Resolution 10 µΩ. Memory: 1000 records. Other features: four-wire measurement, cable length measurement, upper/lower limit alarm, USB data transfer, backlight, relative value, low battery indicator. Power source: 7.4 V 4000 mAh rechargeable Li-ion battery. Box contents: test leads with Kelvin clips (red and black), power cable, power adapter, USB interface cable, PC software CD.
| Low/High Limit Alarm | Available |
|---|---|
| Backlight | Available |
| Gram | 1.5 kg |
| Relative Measurement | Available |
| Resistance Measurement | 120 mΩ / 5 A · ±(%0,25+25); 600 mΩ / 1 A · ±(%0,25+25); 6 Ω / 100 mA · ±(%0,25+25); 60 Ω / 10 mA · ±(%0,25+25); 600 Ω / 1 mA · ±(%0,25+25); 6 kΩ / 100 µA · ±(%0,75+30) |
| Four-Wire Measurement | Available |
| Low Battery Indication | Available |
| Additional Functions | Dört telli ölçüm, kablo uzunluğu ölçümü, üst/alt limit alarmı, USB veri aktarımı, arka ışık, bağıl değer, düşük pil göstergesi |
| Display Size | 116 mm × 87,5 mm |
| Display Count | 60000 |
| Power Source | 7,4 V 4000 mAh şarj edilebilir Li-ion batarya |
| Memory | 1000 kayıt |
| Cable Length Measurement | Available |
| Range Selection | Manuel |
| Standard Accessories | Kelvin klipsli test kabloları (kırmızı ve siyah), güç kablosu, güç adaptörü, USB arayüz kablosu, PC yazılım CD'si |
| USB Data Transfer | Available |
| Resolution | 10 µΩ |
| Product Dimensions | 268 mm × 168 mm × 60 mm |
