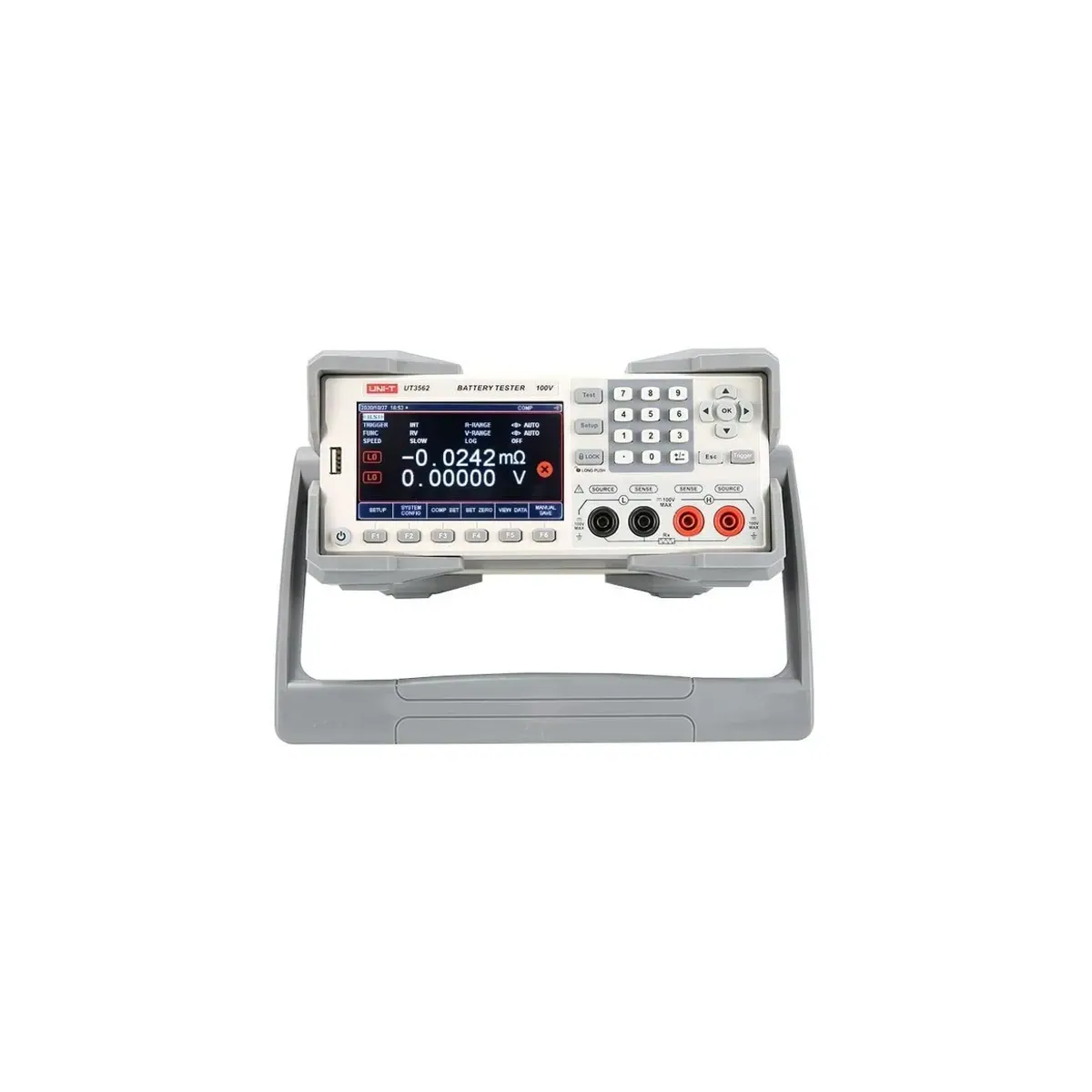

Unit UT3562 Battery and Accumulator Tester
- Brand: Unit
- SKU: UT-3562
- MPN: UT-3562
- Price: 77658.86 TRY + VAT · incl. VAT 93190.63 TRY
- Availability: Made to order
- Cell and Battery Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT3562 Battery and Accumulator Tester. Voltage Range: 6 V / 60 V / 100 V. Display Count: Resistance: 31000; voltage: 606000. Display: 4.3 inch LCD. Resistance Measurement: 3 mΩ / 30 mΩ / 300 mΩ / 3 Ω / 30 Ω / 300 Ω / 3 kΩ. Voltage Resolution: 10 μV. Resistance Resolution: 0.1 μΩ. Accuracy: Resistance: 0.5%; voltage: 0.01%. Range Selection: Automatic and manual. Measurement Rate: Slow, medium, fast and high speed. Calibration: Full-range zeroing with short circuit. Other features: Comparative Measurement: Absolute tolerance, percentage tolerance and direct reading comparison; Sequencing Function: Low/high limit or within range; PASS/FAIL results; Interfaces: RS-232, USB, Handler; SCPI and Modbus; Data Logging: FAT-formatted USB drive; portable hard disks are not supported; Power Source: AC 100–240 V, 50/60 Hz; Weight: 2.6 kg; Product Dimensions: 340 × 214 × 89 mm.
| Interfaces | RS-232, USB, Handler; SCPI ve Modbus |
|---|---|
| Gram | 2.6 kg |
| Resistance Resolution | 0.1 μΩ |
| Resistance Measurement | 3 mΩ / 30 mΩ / 300 mΩ / 3 Ω / 30 Ω / 300 Ω / 3 kΩ |
| Accuracy | Direnç: %0.5; gerilim: %0.01 |
| Display | 4.3 inç LCD |
| Display Count | Direnç: 31000; gerilim: 606000 |
| Voltage Resolution | 10 μV |
| Voltage Range | 6 V / 60 V / 100 V |
| Power Source | AC 100–240 V, 50/60 Hz |
| Range Selection | Otomatik ve manuel |
| Calibration | Kısa devre ile tam kademe sıfırlama |
| Comparative Measurement | Mutlak tolerans, yüzde toleransı ve doğrudan okuma karşılaştırması |
| Standard Accessories | Güç kablosu, elektronik kılavuz, UT-L82 Kelvin test kablosu, UT-L80 test kablosu |
| Sequencing Function | Alt/üst limit veya aralık içi; PASS/FAIL sonuçları |
| Data Logging | FAT biçimli USB bellek; taşınabilir sabit disk desteklenmez |
| Measurement Rate | Yavaş, orta, hızlı ve yüksek hızlı |
| Product Dimensions | 340 × 214 × 89 mm |
