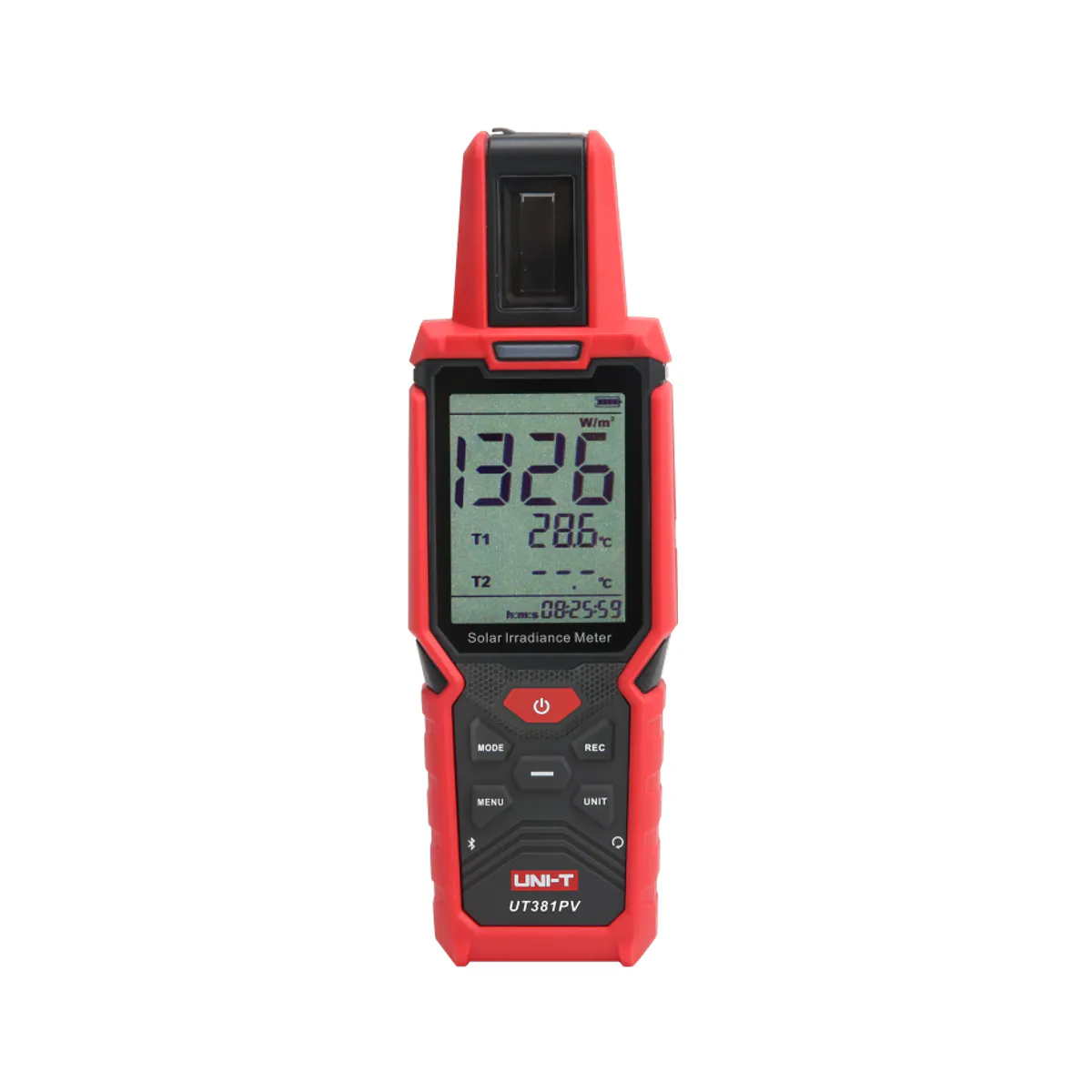

Unit UT381PV 0 – 1400 W/m2 Solar Irradiance Meter with Inclination and Azimuth Sensor
- Brand: Unit
- SKU: UT381PV
- MPN: UT381PV
- Price: 14618.14 TRY + VAT · incl. VAT 17541.77 TRY
- Availability: Made to order
- Solar Panel Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT381PV is a solar irradiance meter that measures 0 – 1400 W/m² under natural and simulated sunlight, with two measurement channels for ambient and solar panel temperature. Irradiance accuracy is ±(5.0%+5 digits) with 1 W/m² resolution. The temperature range is -40 °C – 120 °C (-40 °F – 248 °F); the inclination range is -90.0° – +90.0° and the azimuth range is 0° – 360°. It stores 12800 sets at a 1 s – 60 min interval, connects over Bluetooth to the iENV mobile app at up to 100 m, and can be integrated with the UT541 15 kW photovoltaic I-V curve analyzer. The housing is UV-resistant with IP65 protection and 2 m drop resistance, and a quick-release solar panel mounting bracket is included. It is used for solar panel installation and maintenance in photovoltaic power stations and for product testing in PV laboratories. It runs on 2 × AA batteries and weighs about 212 g (battery not included).
| Solar Irradiance Measurement | 0 – 1400 W/m² / 0 – 500 Btu/(ft²·h) · çözünürlük 1 · ±(5.0%+5 hane) |
|---|---|
| Temperature Measurement | -40 °C – 120 °C · çözünürlük 0.1 °C · ±1 °C (-10 °C – 75 °C), diğer aralıklarda ±2 °C; -40 °F – 248 °F · çözünürlük 0.2 °F / 1 °F (>100 °F) · ±2 °F (14 °F – 167 °F), diğer aralıklarda ±4 °F |
| Inclination Measurement | -90.0° – +90.0° · çözünürlük 0.1° · ±1.5° (-50° – +50°); ±2.5° (-85°~50° ve +50°~+85°); diğer aralıklarda ±3.5° |
| Azimuth Measurement | 0° – 360° · çözünürlük 1° · ±7° |
| Data Logging | 12800 kayıt |
| Recording Interval | 1 s – 60 min |
| Bluetooth | Var · kablosuz iletim mesafesi 100 m |
| Mobile App | iENV |
| Additional Functions | İki sıcaklık ölçüm kanalı (ortam ve güneş paneli), LED gösterge, sesli uyarı, pusula kalibrasyonu, zaman ayarı, hızlı çıkarmalı braket, UT541 15 kW fotovoltaik I-V eğri analizörü ile entegrasyon |
| Auto Power Off | 30 min (işlem yapılmazsa) |
| IP Rating | IP65 |
| Drop Resistance | 2 m |
| Operating Environment | -20 °C – 60 °C, ≤90 %RH (yoğuşmasız), ≤2000 m yükseklik |
| Storage Environment | -30 °C – 70 °C, ≤80 %RH (yoğuşmasız) |
| Certifications | CE, RoHS |
| Power Source | 2 × AA pil |
| Battery Life | yaklaşık 95 saat |
| Product Dimensions | 201 mm × 54.2 mm × 33.7 mm |
| Gram | yaklaşık 212 g (pil hariç) |
| Standard Accessories | Bez çanta, kullanım kılavuzu, güvenlik kılavuzu, 2 × AA pil, vantuzlu sıcaklık probu, güneş paneli montaj braketi, genel indirme kılavuzu |
