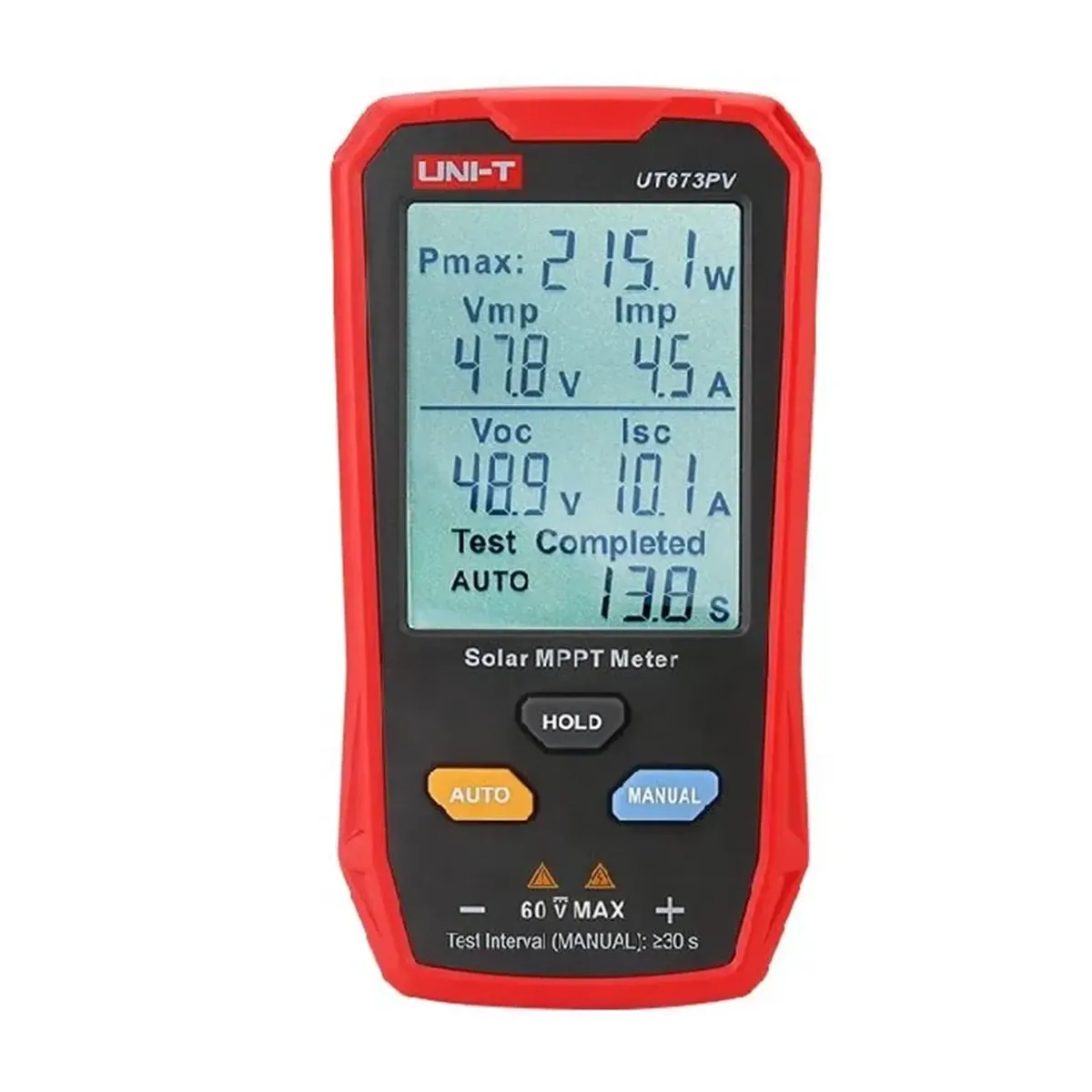

Unit UT673PV Solar MPPT Meter
- Brand: Unit
- SKU: UT673PV
- MPN: UT673PV
- Price: 2421.13 TRY + VAT · incl. VAT 2905.36 TRY
- Availability: Made to order
- Solar Panel Testers
- Selection guide: Electrical and Electronic Testers Selection Guide: Technical Criteria and Engineering Practice
Unit UT673PV is a solar panel MPPT meter manufactured by UNI-T. Helps detect anomalies in the panel by measuring the solar panel's maximum power (Pmax, 5–800 W), peak power voltage (Vmp) and current (Imp), open-circuit voltage (Voc, 12–60 V) and short-circuit current (Isc, 0–35 A). The large LCD display shows all measurement results at the same time; features manual and automatic MPPT testing and a data hold function. Requires no batteries, powered from the measured panel; used with a MC4 test lead. Reverse polarity, overvoltage, overcurrent, overtemperature and overpower protections are included; CE, cETLus and RoHS certified.
| Maximum Power (Pmax) | 5–800 W · ±(%1,0+10) |
|---|---|
| Peak Power Voltage (Vmp) | 12–60 V DC · ±(%1,5+5) |
| Peak Power Current (Imp) | 0–35 A DC · ±(%1,5+5) |
| Open Circuit Voltage (Voc) | 12–60 V DC · ±(%1,5+5) |
| Short Circuit Current (Isc) | 0–35 A DC · ±(%1,5+5) |
| Protection Functions | Ters polarite bağlantı, aşırı gerilim, aşırı akım, aşırı sıcaklık ve aşırı güç koruması |
| Additional Functions | Manuel ve otomatik MPPT testi, veri tutma, tüm sonuçların aynı anda gösterimi, MC4 test kablosu |
| Safety Category | CAT 0 60 V |
| Certifications | CE, cETLus, RoHS |
| Power Source | Pil gerekmez; ölçülen güneş panelinden beslenir |
| Display | Büload LCD (52 × 66 mm) |
